NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP..5F

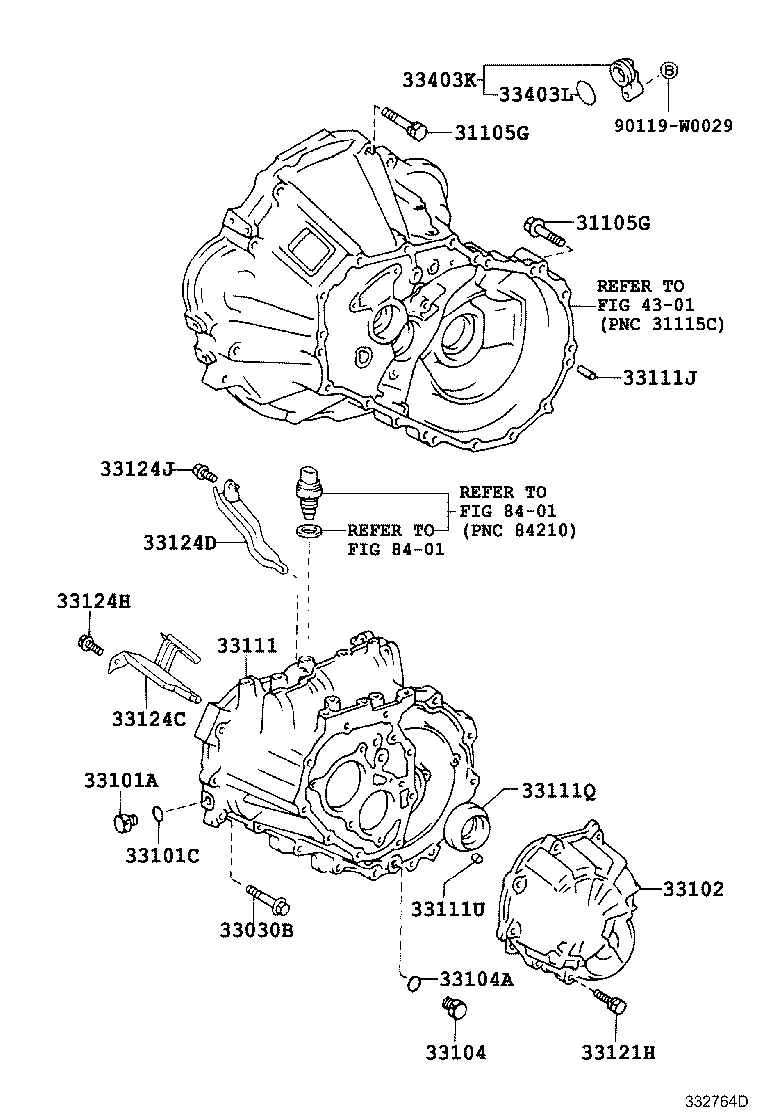

Click highlighted areas on diagram

C53

diagram 31105G 31105G 33030B 33101A 33101C 33102 33104 33104A 33111 33111J 33111Q 33111U 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 8401 8401 90119W0029
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050

NLP90..FRP

*10-1.25PX50-30

 7
91612-61045

NLP90..FRP

*10-1.25PX45-30

 7
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61050

NLP90..FRP

*10-1.25PX50-30

 7
91612-61045

NLP90..FRP

*10-1.25PX45-30

 7
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08430

NLP90..FRP..5F

*8-1.25PX45-27.5

 3
90105-08353

NLP90..FRP

*8-1.25PX50-30

 13
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NLP90..FRP..5F

 1
90341-18033

NLP90..FRP..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NLP90..FRP..5F

 1
90430-18008

NLP90..FRP..5F

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

NLP90..FRP

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033

NLP90..FRP..5F

 1
90341-18033

NLP90..FRP..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

NLP90..FRP..5F

 2
90430-18008

NLP90..FRP..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33111-52120

NLP90..FRP..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NLP90..FRP..5F

L=23,OD=8

 4
90250-08054

NLP90..FRP..5F

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-35058

NLP90..FRP..5F

 1
90311-35058

NLP90..FRP..5F

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

NLP90..FRP..5F

L=11,OD=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08782

NLP90..FRP..5F

 9
91611-60835

NLP90..FRP..5F

 9
90119-08782

NLP90..FRP..5F

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NLP90..FRP..5F

 1
33124-20050

NLP90..FRP..5F

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

NLP90..FRP..3D..5F

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

NLP90..FRP..5F

 1
91611-G0820

NLP90..FRP..5F

 1
33124J - BOLT, W/WASHER
91611-G0820

NLP90..FRP..5F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

KSP90..FRP..5FS;NLP90,SCP90..FRP

 1
33403L - RING, O
96711-24030

KSP90..FRP..5FS;NLP90,SCP90..FRP

 1
Common parts
90119-W0029
Linked diagrams
4301
8401
