NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)NLP90..FRP..RHD ; (0511- )NLP90..FRP..LHD..5F,5FS,6F ; (0511- )KSP

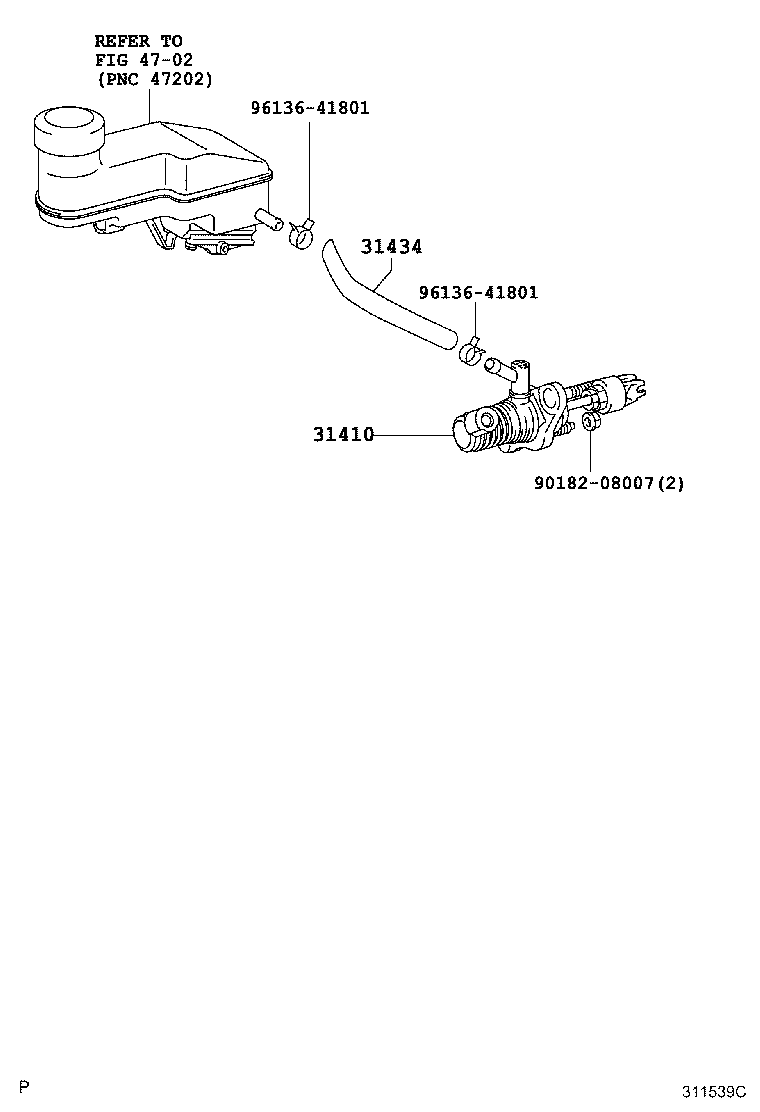

Click highlighted areas on diagram

diagram 31410 31434 4702 9018208007 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-0D120

NLP90..FRP..LHD..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52180

KSP90,NLP90,SCP90..FRP..LHD..5F

 1
Common parts
90182-08007
96136-41801
Linked diagrams
4702
