NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

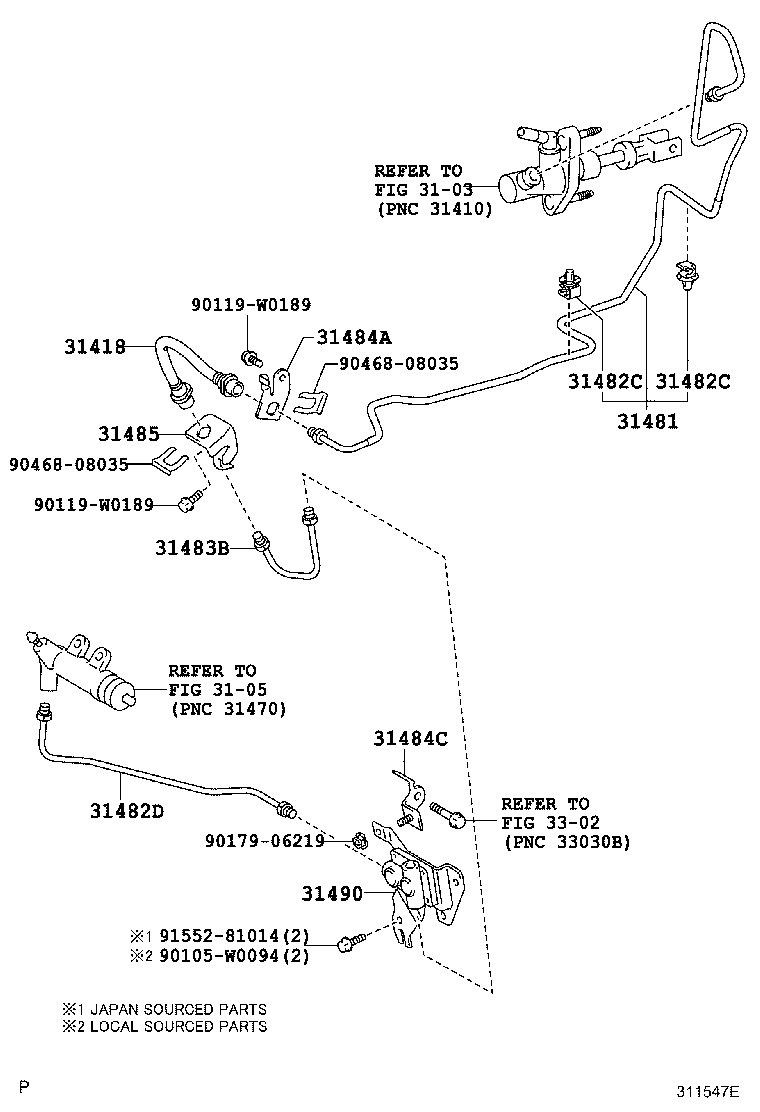

ILLUST NO. 2 OF 2(0511-0811)NLP90..FRP..LHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482C 31482C 31482D 31483B 31484A 31484C 31485 31490 3302 90105W0094 90119W0189 90119W0189 9017906219 9046808035 9046808035 9155281014
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-W2006

NLP90..FRP..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D090

KSP90,NLP90,SCP90..FRP..LHD..5F

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,SCP90..FRP..5F

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,SCP90..FRP..5F

 2
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-0D080

NLP90..FRP..5F

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0D040

NLP90..FRP..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP90,NLP90,SCP90..FRP..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12530

NLP90..FRP..5F

 1
31484-12531

NLP90..FRP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52080

NLP90..FRP..5F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52033

NLP90..FRP..5F

 1
Common parts
90105-W0094
90119-W0189
90179-06219
90468-08035
91552-81014
Linked diagrams
3103
3105
3302
