NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)1NDTV..FRP

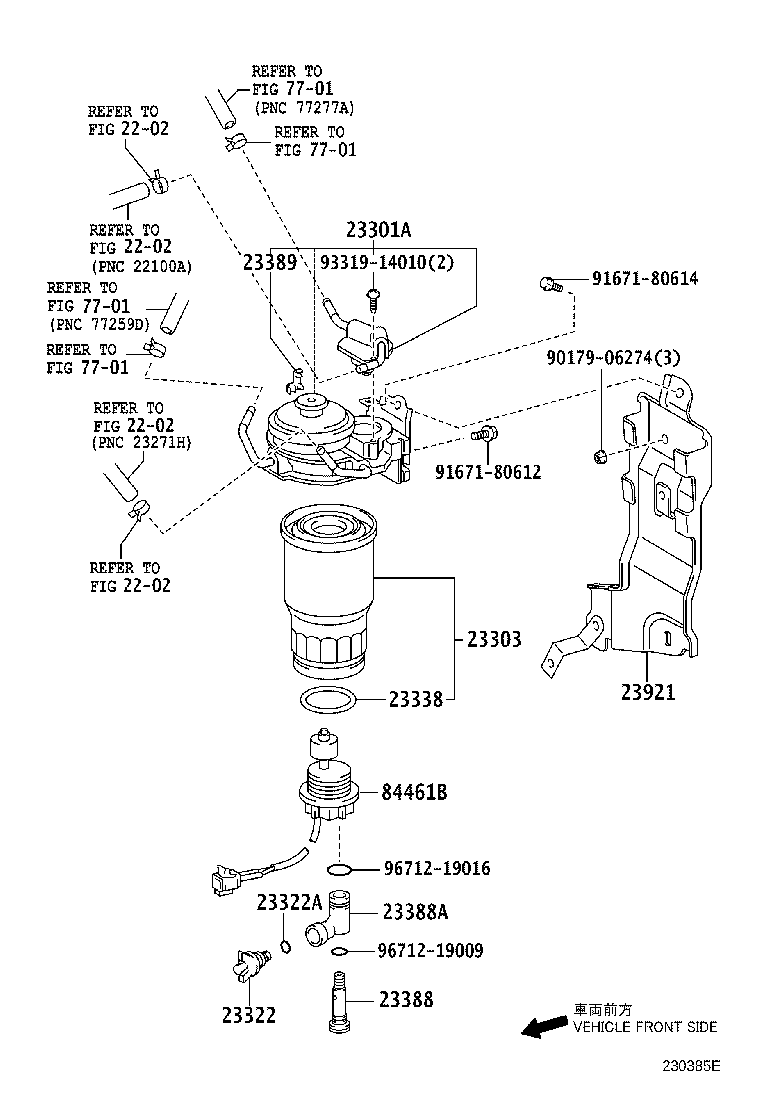

Click highlighted areas on diagram

diagram 2202 2202 2202 2202 23301A 23303 23322 23322A 23338 23388 23388A 23389 23921 7701 7701 7701 7701 84461B 9017906274 9167180612 9167180614 9331914010 9671219009 9671219016
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-0N050

1NDTV..NLP90..FRP

 1
23380-0N051

1NDTV..NLP90..FRP

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-33020

1NDTV..NLP90..FRP

 1
23390-33060

1NDTV..NLP90..FRP

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1NDTV..NLP90..FRP

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1NDTV..NLP90..FRP

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1NDTV..NLP90..FRP

 1
23388 - PLUG, FUEL FILTER DRAIN
23388-30160

1NDTV..NLP90..FRP

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-30170

1NDTV..NLP90..FRP

 1
23389 - CLAMP, FUEL FILTER
23389-0N010

1NDTV..NLP90..FRP

 1
23921 - SUPPORT, FUEL FILTER
23921-0N010

1NDTV..NLP90..FRP

 1
84461B - SWITCH, LEVEL WARNING
84461-52010

NLP90..FRP

 1
Common parts
90179-06274
91671-80612
91671-80614
93319-14010
96712-19009
96712-19016
Linked diagrams
2202
7701
