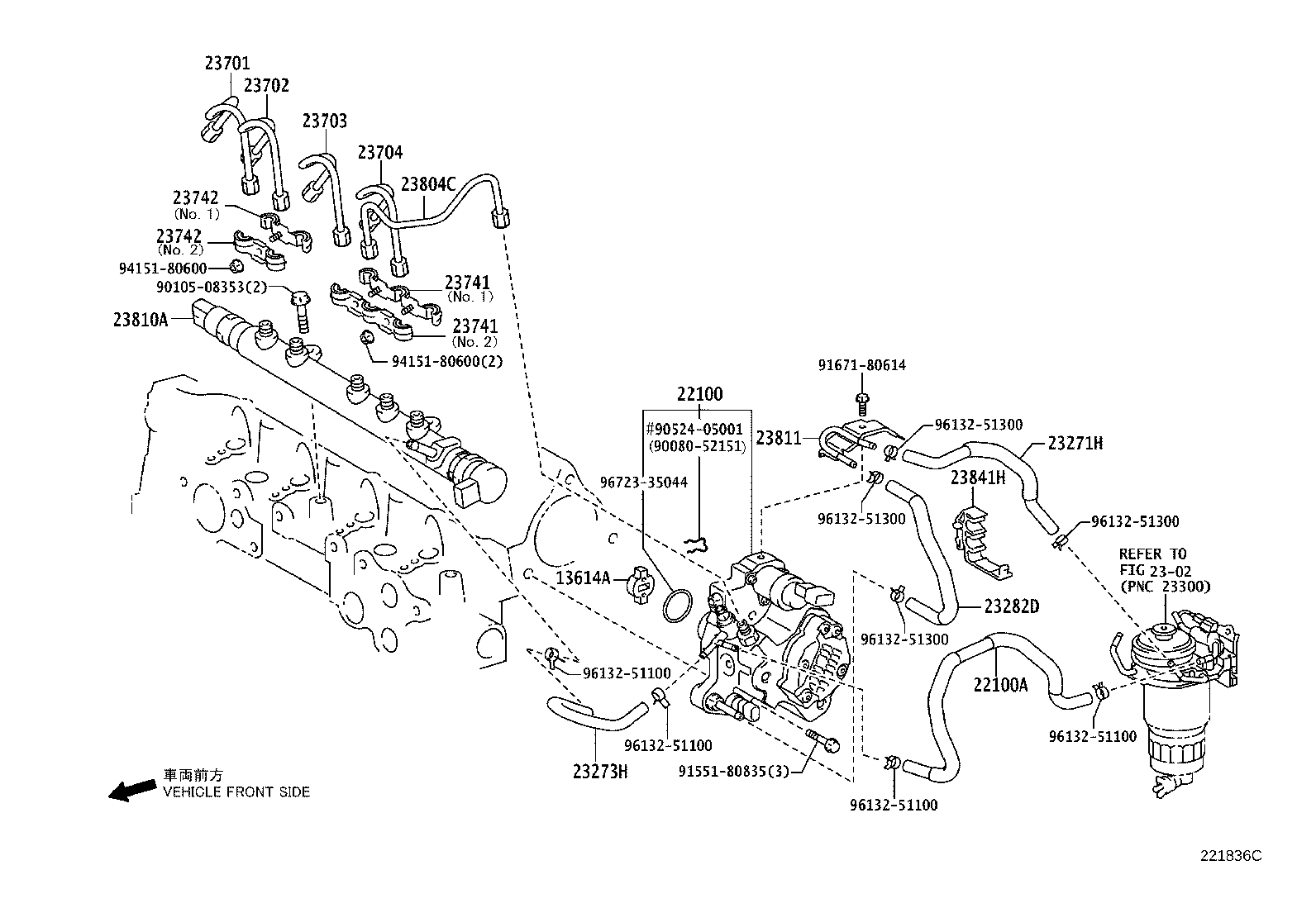

NLP90L-CGMRXW (2006)
Toyota Yaris (Frp)
(0511-0811)1NDTV..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-0N010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 13614-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0N020 |
1NDTV..NLP90..FRP *137 |
1 | ||
| 22100-33040 |
1NDTV..NLP90..FRP *132 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23273-33070 |
1NDTV..NLP90..FRP |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-33040 |
1NDTV..NLP90..FRP |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-33060 |
1NDTV..NLP90..FRP |
1 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23701-0N010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23701-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23701-33020 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23701-33020 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23701-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23701-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23701-33020 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-33020 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 23741-33010 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-33020 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 23741-33010 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-33010 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 23742-33020 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-33010 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 23742-33020 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0N010 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23804-33010 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0N020 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23810-33020 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23810-0N021 |
1NDTV..NLP90..FRP (L) |
1 | ||
| 23810-33021 |
1NDTV..NLP90..FRP (J) |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-33070 |
1NDTV..NLP90..FRP |
1 | ||
| 23841H - CLAMP, FUEL HOSE | ||||
| 23841-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| Common parts | ||||
| 90080-52151 | ||||
| 90105-08353 | ||||
| 90524-05001 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96723-35044 | ||||
| Linked diagrams | ||||
| 2302 | ||||
