NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

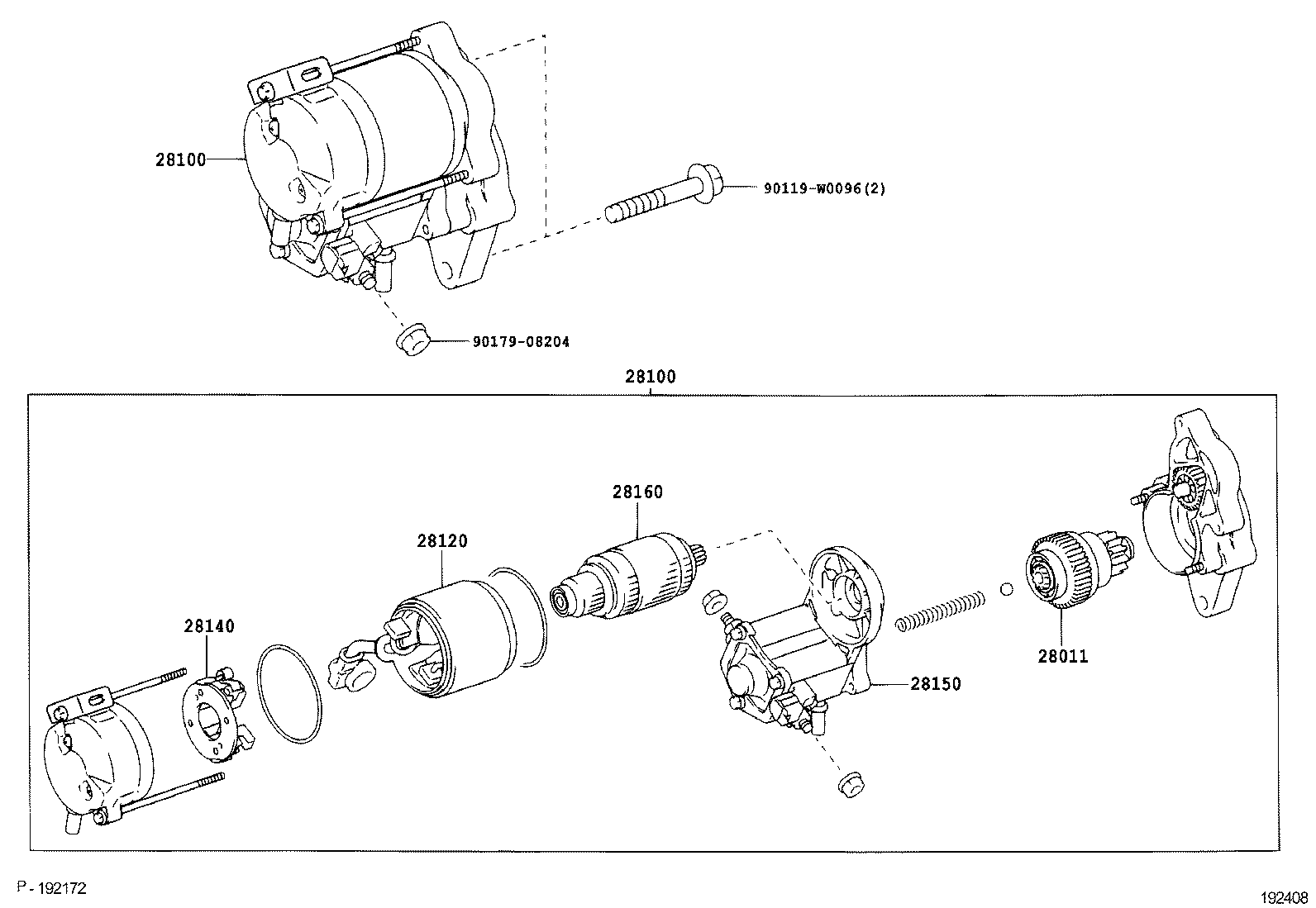

(0511-0811)1NDTV..FRP..LHD

Click highlighted areas on diagram

12V 2.0KW

diagram 28011 28100 28100 28120 28140 28150 28160 90119W0096 9017908204
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0N010

1NDTV..NLP90..FRP

 1
28011-55060

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28011-55060

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28100 - STARTER ASSY
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH(REAR HEATER DUCT)

 1
28100-0N010

1NDTV..NLP90..FRP

12V 1.1KW

 1
28100 - STARTER ASSY
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH(REAR HEATER DUCT)

 1
28100-0N010

1NDTV..NLP90..FRP

12V 1.1KW

 1
28120 - YOKE ASSY, STARTER
28120-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28120-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28120-0D130

1NDTV..NLP90..FRP

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28140-0D130

1NDTV..NLP90..FRP

 1
28140-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-33040

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28150-33040

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28150-0D130

1NDTV..NLP90..FRP

 1
28160 - ARMATURE ASSY, STARTER
28160-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28160-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28160-0D130

1NDTV..NLP90..FRP

 1
Common parts
90119-W0096
90179-08204

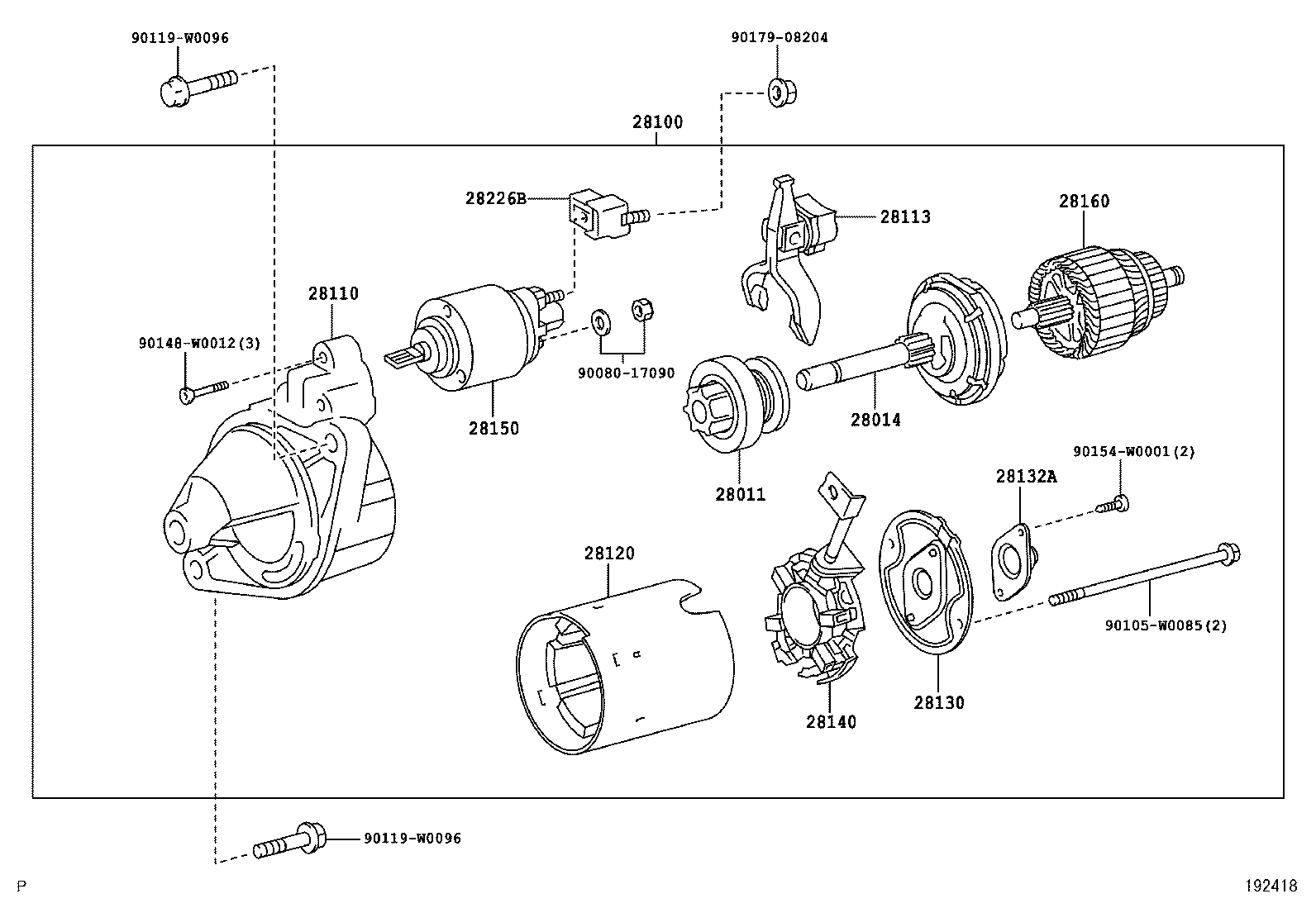

(0511-0811)1NDTV..FRP

Click highlighted areas on diagram

12V 1.1KW

diagram 28011 28014 28100 28110 28113 28120 28130 28132A 28140 28150 28160 28226B 9008017090 90105W0085 90119W0096 90119W0096 90148W0012 90154W0001 9017908204
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0N010

1NDTV..NLP90..FRP

 1
28011-55060

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28011-55060

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0D130

1NDTV..NLP90..FRP

 1
28100 - STARTER ASSY
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28100-33080

1NDTV..NLP90..FRP..LHD

12V 2.0KW,COLD SPEC, WITH(REAR HEATER DUCT)

 1
28100-0N010

1NDTV..NLP90..FRP

12V 1.1KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0N010

1NDTV..NLP90..FRP

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0D130

1NDTV..NLP90..FRP

 1
28120 - YOKE ASSY, STARTER
28120-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28120-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28120-0D130

1NDTV..NLP90..FRP

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0D130

1NDTV..NLP90..FRP

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-0D130

1NDTV..NLP90..FRP

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28140-0D130

1NDTV..NLP90..FRP

 1
28140-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-33040

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28150-33040

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28150-0D130

1NDTV..NLP90..FRP

 1
28160 - ARMATURE ASSY, STARTER
28160-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
28160-54380

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
28160-0D130

1NDTV..NLP90..FRP

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0N010

1NDTV..NLP90..FRP

 1
Common parts
90080-17090
90105-W0085
90119-W0096
90148-W0012
90154-W0001
90179-08204
