NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)1NDTV..FRP

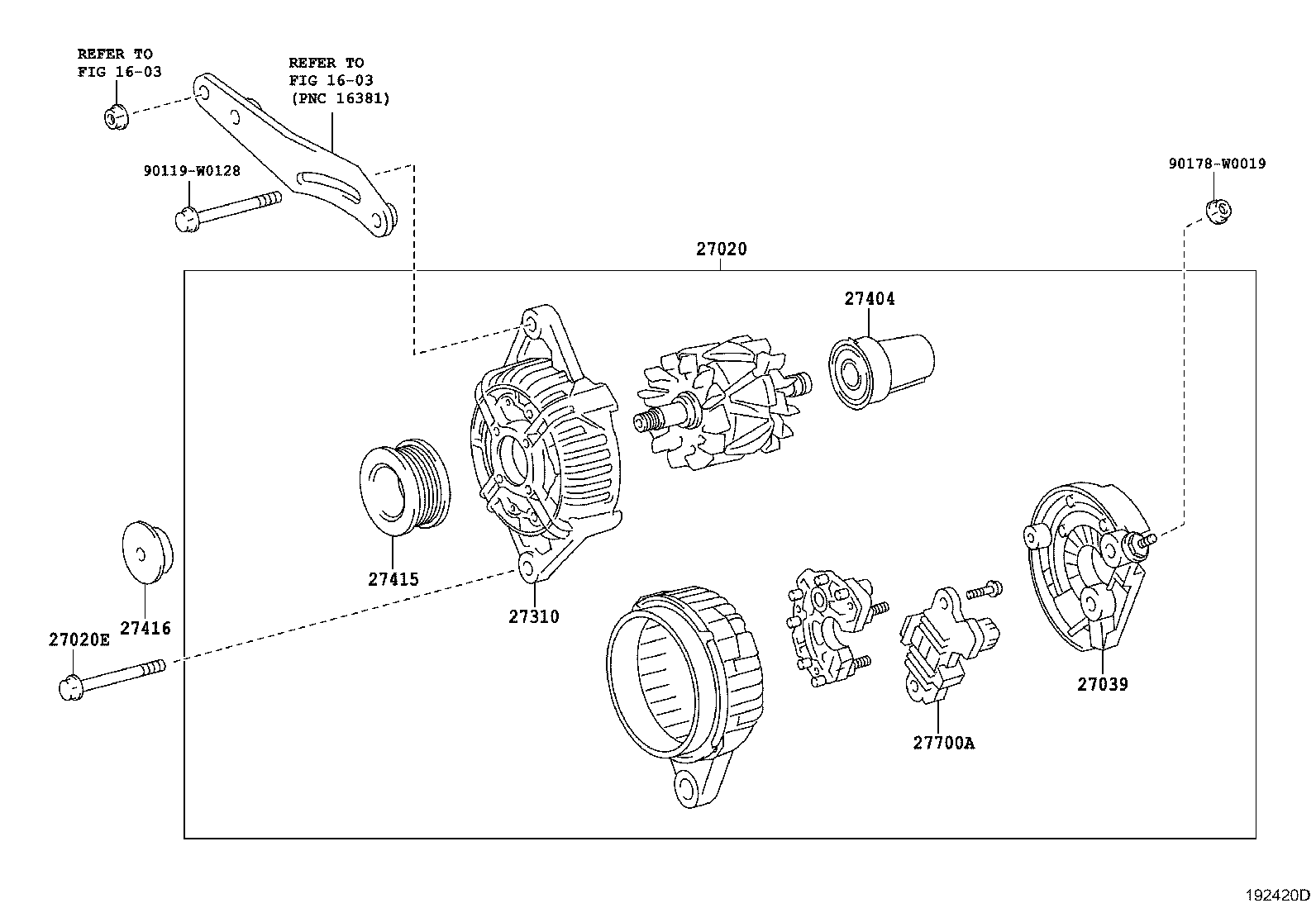

Click highlighted areas on diagram

12V 90A

diagram 1603 1603 27020 27020E 27039 27310 27404 27415 27416 27700A 90119W0128 90178W0019
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0N011

1NDTV..NLP90..FRP

12V 90A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-W0119

1NDTV..NLP90..FRP

 1
27039 - COVER, ALTERNATOR REAR END
27039-0Q030

1KRFE,1NDTV..KSP90,NLP90..FRP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0N010

1NDTV..NLP90..FRP

 1
27404 - BEARING SET, ALTERNATOR
27404-0D020

1KRFE,1NDTV..KSP90,NLP90..FRP

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-33060

1NDTV..NLP90..FRP

 1
27416 - CAP, ALTERNATOR PULLEY
27416-33010

1NDTV..NLP90..FRP

 1
27700A - REGULATOR ASSY, GENERATOR
27702-0N010

1NDTV..NLP90..FRP

 1
Common parts
90119-W0128
90178-W0019
Linked diagrams
1603
