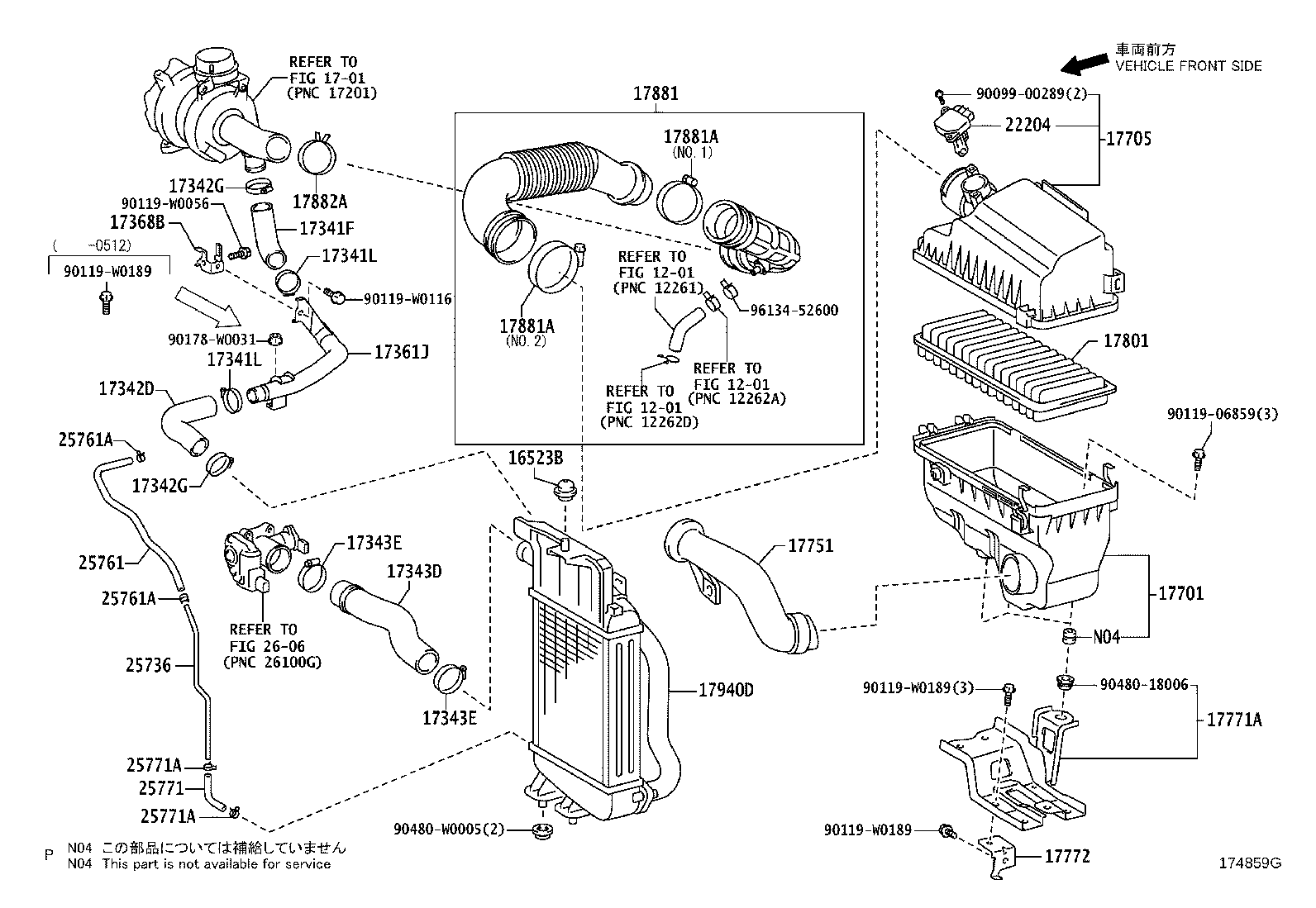

NLP90L-CGMRXW (2006)
Toyota Yaris (Frp)
(0511-0811)1NDTV..FRP..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16523B - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Q020 |
1NDTV..NLP90..FRP |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-33040 |
1NDTV..NLP90..FRP |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50005 |
1NDTV..NLP90..FRP |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50005 |
1NDTV..NLP90..FRP |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-50005 |
1NDTV..NLP90..FRP |
2 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-50005 |
1NDTV..NLP90..FRP |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-33020 |
1NDTV..NLP90..FRP |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1NDTV..NLP90..FRP |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1NDTV..NLP90..FRP |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0N020 |
1NDTV..NLP90..FRP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0N020 |
1NDTV..NLP90..FRP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0N021 |
1NDTV..NLP90..FRP |
1 | ||
| 17751-0N020 |
1NDTV..NLP90..FRP |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0N020 |
1NDTV..NLP90..FRP |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-0N031 |
1NDTV..NLP90..FRP |
1 | ||
| 17880-0N030 |
1NDTV..NLP90..FRP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-62003 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90460-80006 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90460-62003 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90460-80006 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-62003 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90460-80006 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 90460-62003 |
1NDTV..NLP90..FRP NO.1 |
1 | ||
| 90460-80006 |
1NDTV..NLP90..FRP NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-54002 |
1NDTV..NLP90..FRP |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17900-0N010 |
1NDTV..NLP90..FRP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 25736 - PIPE, VACUUM TRANSMITTING, NO.1 | ||||
| 25736-33020 |
1NDTV..NLP90..FRP |
1 | ||
| 25761 - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-33010 |
1NDTV..NLP90..FRP |
1 | ||
| 25761A - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 90467-07094 |
1NDTV..NLP90..FRP |
2 | ||
| 25761A - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 90467-07094 |
1NDTV..NLP90..FRP |
2 | ||
| 25771 - HOSE, VACCUM TRANSMITTING, NO.2 | ||||
| 25771-33030 |
1NDTV..NLP90..FRP |
1 | ||
| 25771A - CLIP(VACCUM TRANSMITTING HOSE NO.2) | ||||
| 90467-07094 |
1NDTV..NLP90..FRP |
2 | ||
| 25771A - CLIP(VACCUM TRANSMITTING HOSE NO.2) | ||||
| 90467-07094 |
1NDTV..NLP90..FRP |
2 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-W0056 | ||||
| 90119-W0116 | ||||
| 90119-W0189 | ||||
| 90178-W0031 | ||||
| 90480-18006 | ||||
| 90480-W0005 | ||||
| 96134-52600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2606 | ||||
