NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)1NDTV..FRP

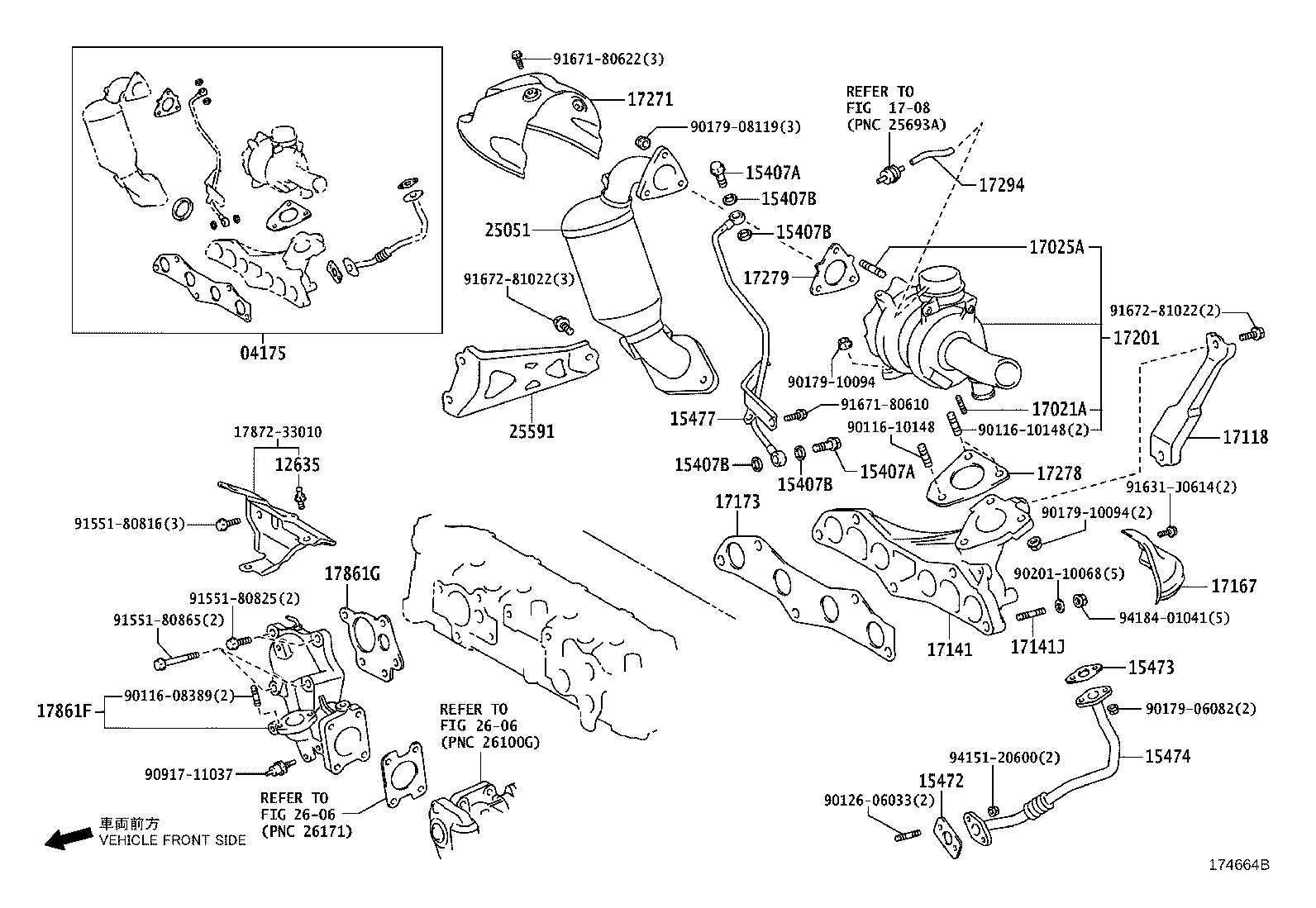

Click highlighted areas on diagram

diagram 04175 12635 15407A 15407A 15407B 15407B 15407B 15407B 15472 15473 15474 15477 17021A 17025A 1708 17118 17141 17141J 17167 17173 17201 17271 17278 17279 17294 17861F 17861G 1787233010 25051 25591 2606 2606 9011608389 9011610148 9011610148 9012606033 9017906082 9017908119 9017910094 9017910094 9020110068 9091711037 9155180816 9155180825 9155180865 91631J0614 9167180610 9167180622 9167281022 9167281022 9415120600 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0N040

1NDTV..NLP90..FRP

 1
12635 - JOINT, ENGINE COVER
12635-33010

1NDTV..NLP90..FRP

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10065

1NDTV..NLP90..FRP

 2
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10065

1NDTV..NLP90..FRP

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10027

1NDTV..NLP90..FRP

 4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10027

1NDTV..NLP90..FRP

 4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10027

1NDTV..NLP90..FRP

 4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10027

1NDTV..NLP90..FRP

 4
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-33010

1NDTV..NLP90..FRP

 1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15473-33010

1NDTV..NLP90..FRP

 1
15474 - PIPE, TURBO OIL OUTLET
15474-33010

1NDTV..NLP90..FRP

*132

 1
15474-33020

1NDTV..NLP90..FRP

 1
15474-33020

1NDTV..NLP90..FRP

*137

 1
15477 - PIPE, TURBO OIL INLET
15477-33010

1NDTV..NLP90..FRP

 1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-06048

1NDTV..NLP90..FRP

 2
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08260

1NDTV..NLP90..FRP

 3
17118 - STAY, MANIFOLD
17118-33030

1NDTV..NLP90..FRP

 1
17141 - MANIFOLD, EXHAUST
17141-0N010

1NDTV..NLP90..FRP

(L)

 1
17141-33040

1NDTV..NLP90..FRP

(J)

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10018

1NDTV..NLP90..FRP

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-33010

1NDTV..NLP90..FRP

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-33010

1NDTV..NLP90..FRP

(J)

 1
17173-0N010

1NDTV..NLP90..FRP

(L)

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0N030

1NDTV..NLP90..FRP

 1
17271 - INSULATOR, TURBO, NO.1
17271-33030

1NDTV..NLP90..FRP

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-27010

1NDTV..NLP90..FRP

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27020

1NDTV..NLP90..FRP

 1
17294 - HOSE, ACTUATOR
17294-33030

1NDTV..NLP90..FRP

 1
17861F - CONNECTOR, INTAKE AIR
17861-33020

1NDTV..NLP90..FRP

 1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-33011

1NDTV..NLP90..FRP

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0N020

1NDTV..NLP90..FRP

*114=TOYOTA/0N020/Y

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-33020

1NDTV..NLP90..FRP

 1
Common parts
17872-33010
90116-08389
90116-10148
90126-06033
90179-06082
90179-08119
90179-10094
90201-10068
90917-11037
91551-80816
91551-80825
91551-80865
91631-J0614
91671-80610
91671-80622
91672-81022
94151-20600
94184-01041
