NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)1NDTV..FRP

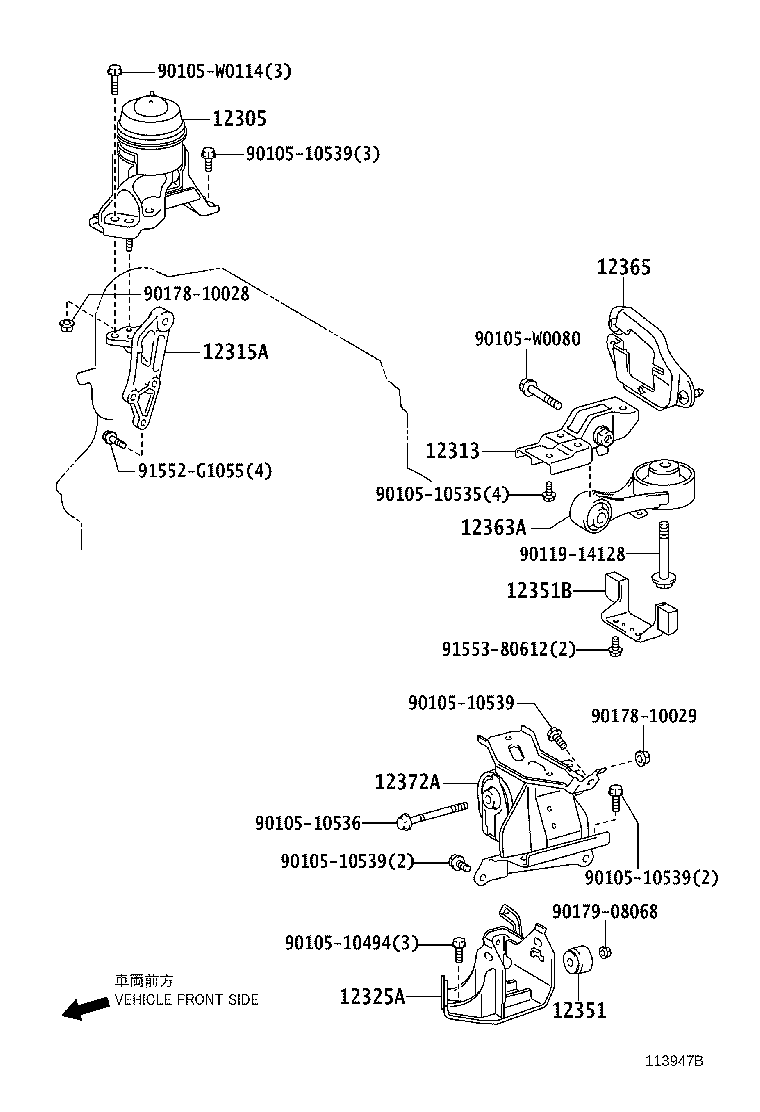

Click highlighted areas on diagram

diagram 12305 12313 12315A 12325A 12351 12351B 12363A 12365 12372A 9010510494 9010510535 9010510536 9010510539 9010510539 9010510539 9010510539 90105W0080 90105W0114 9011914128 9017810028 9017810029 9017908068 91552G1055 9155380612
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0N020

1NDTV..NLP90..FRP

 1
12305-0N021

1NDTV..NLP90..FRP

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0N010

1NDTV..NLP90..FRP

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33061

1NDTV..NLP90..FRP

 1
12315-33060

1NDTV..NLP90..FRP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0N020

1NDTV..NLP90..FRP

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0Q010

1NDTV..NLP90..FRP

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0N030

1NDTV..NLP90..FRP

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0N010

1NDTV..NLP90..FRP

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH(REAR HEATER DUCT)

 1
12365-40010

1NDTV..NLP90..FRP..LHD

COLD SPEC, WITH OUT(REAR HEATER DUCT)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0N010

1NDTV..NLP90..FRP

 1
Common parts
90105-10494
90105-10535
90105-10536
90105-10539
90105-W0080
90105-W0114
90119-14128
90178-10028
90178-10029
90179-08068
91552-G1055
91553-80612
