NLP90L-CGMRXW (2006)

Toyota Yaris (Frp)

Production Jan 2006 - Nov 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511-0811)1NDTV..FRP

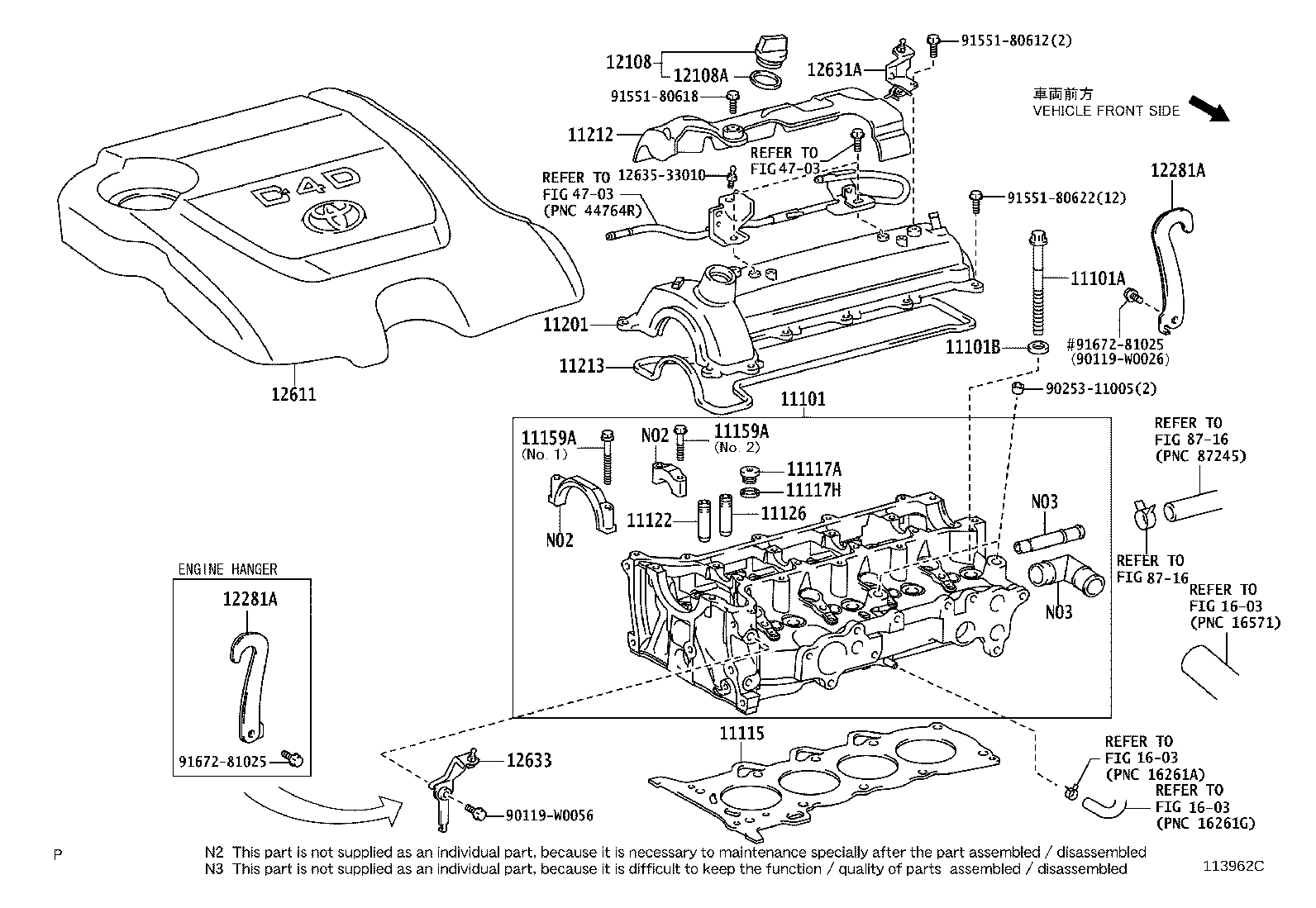

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117H 11122 11126 11159A 11159A 11201 11212 11213 12108 12108A 12281A 12281A 12611 12631A 12633 1263533010 1603 1603 1603 4703 4703 8716 8716 90119W0026 90119W0056 9025311005 9155180612 9155180618 9155180622 9167281025 9167281025
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-33050

1NDTV..NLP90..FRP

 1
11101-33051

1NDTV..NLP90..FRP

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02148

1NDTV..NLP90..FRP

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13021

1NDTV..NLP90..FRP

 10
11115 - GASKET, CYLINDER HEAD
11115-33030C0

1NDTV..NLP90..FRP

MARKC,REFER REPAIR MANUAL

 1
11115-33030A0

1NDTV..NLP90..FRP

MARKA,REFER REPAIR MANUAL

 1
11115-33030B0

1NDTV..NLP90..FRP

MARKB,REFER REPAIR MANUAL

 1
11115-33030E0

1NDTV..NLP90..FRP

MARKE,REFER REPAIR MANUAL

 1
11115-33030D0

1NDTV..NLP90..FRP

MARKD,REFER REPAIR MANUAL

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008

1NDTV..NLP90..FRP

 3
11117H - GASKET(FOR WATER HOLE)
90430-14008

1NDTV..NLP90..FRP

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-33030

1NDTV..NLP90..FRP

O/S 0.05

 4
11122-33030

1NDTV..NLP90..FRP

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-33030

1NDTV..NLP90..FRP

STD

 4
11123-33030

1NDTV..NLP90..FRP

O/S 0.05

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07008

1NDTV..NLP90..FRP

NO.1

 4
90119-07009

1NDTV..NLP90..FRP

NO.2

 8
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07008

1NDTV..NLP90..FRP

NO.1

 4
90119-07009

1NDTV..NLP90..FRP

NO.2

 8
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-33031

1NDTV..NLP90..FRP

*132

 1
11201-0N010

1NDTV..NLP90..FRP

*137

 1
11201-33030

1NDTV..NLP90..FRP

*132

 1
11201-0N011

1NDTV..NLP90..FRP

*137

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-0N020

1NDTV..NLP90..FRP

*137

 1
11212-33020

1NDTV..NLP90..FRP

*132

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-33021

1NDTV..NLP90..FRP

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0N010

1NDTV..NLP90..FRP

*137

 1
12180-28010

1NDTV..NLP90..FRP

*132

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1NDTV..NLP90..FRP

*132

 1
90080-43020

1NDTV..NLP90..FRP

*137

 1
12281A - HANGER, ENGINE, NO.1
12281-21010

1NDTV..NLP90..FRP

 2
12281A - HANGER, ENGINE, NO.1
12281-21010

1NDTV..NLP90..FRP

 2
12611 - COVER, ENGINE, NO.1
12611-0N030

1NDTV..NLP90..FRP

 1
12631A - BRACKET, ENGINE COVER
12632-33020

1NDTV..NLP90..FRP

 1
12633 - BRACKET, ENGINE COVER, NO.3
12633-33010

1NDTV..NLP90..FRP

 1
Common parts
12635-33010
90119-W0026
90119-W0056
90253-11005
91551-80612
91551-80618
91551-80622
91672-81025
Linked diagrams
1603
4703
8716
