NLP10R-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

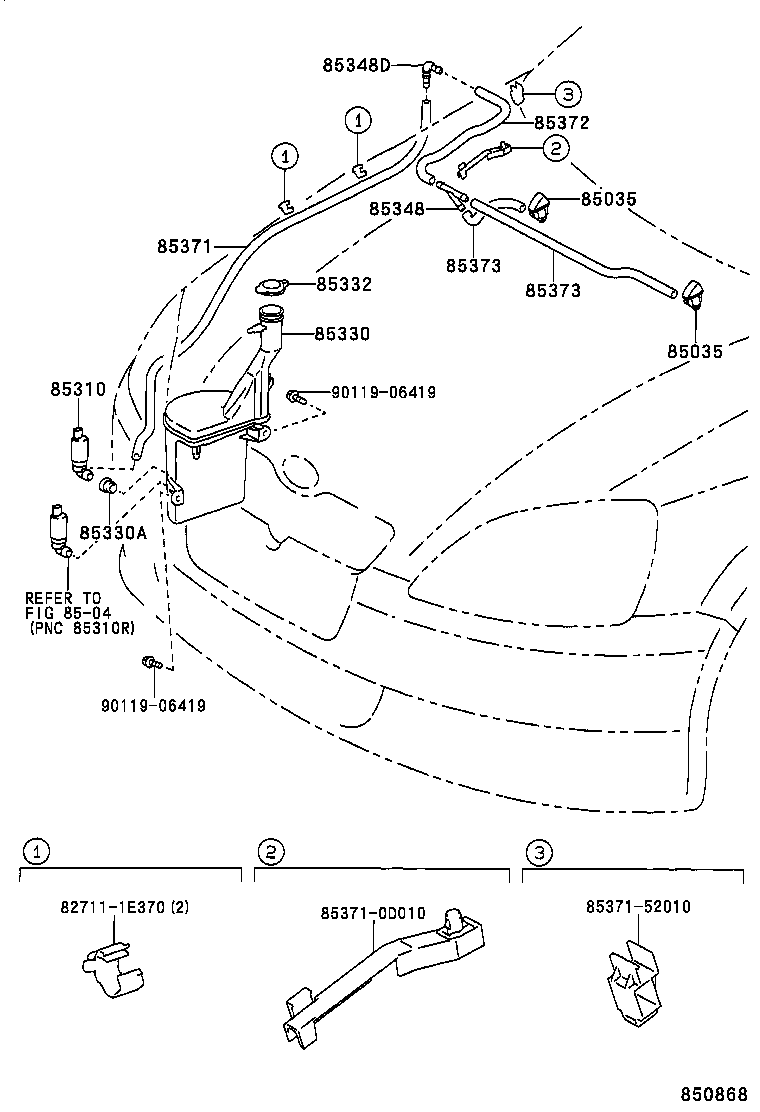

Click highlighted areas on diagram

diagram 827111E370 85035 85035 8504 85310 85330 85330A 85332 85348 85348D 85371 853710D010 8537152010 85372 85373 85373 9011906419 9011906419
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0D011

NLP10,SCP1#..FRP..RHD

 2
85381-0D010

NLP10,SCP1#..FRP..RHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0D011

NLP10,SCP1#..FRP..RHD

 2
85381-0D010

NLP10,SCP1#..FRP..RHD

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-05031

NLP10,SCP1#..FRP

 1
85330-05030

NLP10,SCP1#..FRP

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0D010

NLP10,SCP1#..FRP

 1
85315-0D010

NLP10,SCP1#..FRP

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90069-20005

NLP10,SCP1#..FRP

 1
90069-20005

NLP10,SCP1#..FRP

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0D010

NLP10,SCP1#..FRP

 1
85316-0D010

NLP10,SCP1#..FRP

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-05030

NLP10,SCP1#..FRP

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-0D010

NLP10,SCP1#..FRP

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90069-16010

NLP10,SCP1#..FRP

*H,L=1130

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-16009

NLP10,SCP1#..FRP

*H,L=525

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

NLP10,SCP1#..FRP

*H,L=660

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-16009

NLP10,SCP1#..FRP

*H,L=660

 1
Common parts
82711-1E370
85371-0D010
85371-52010
90119-06419
Linked diagrams
8504
