NLP10R-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )FRP

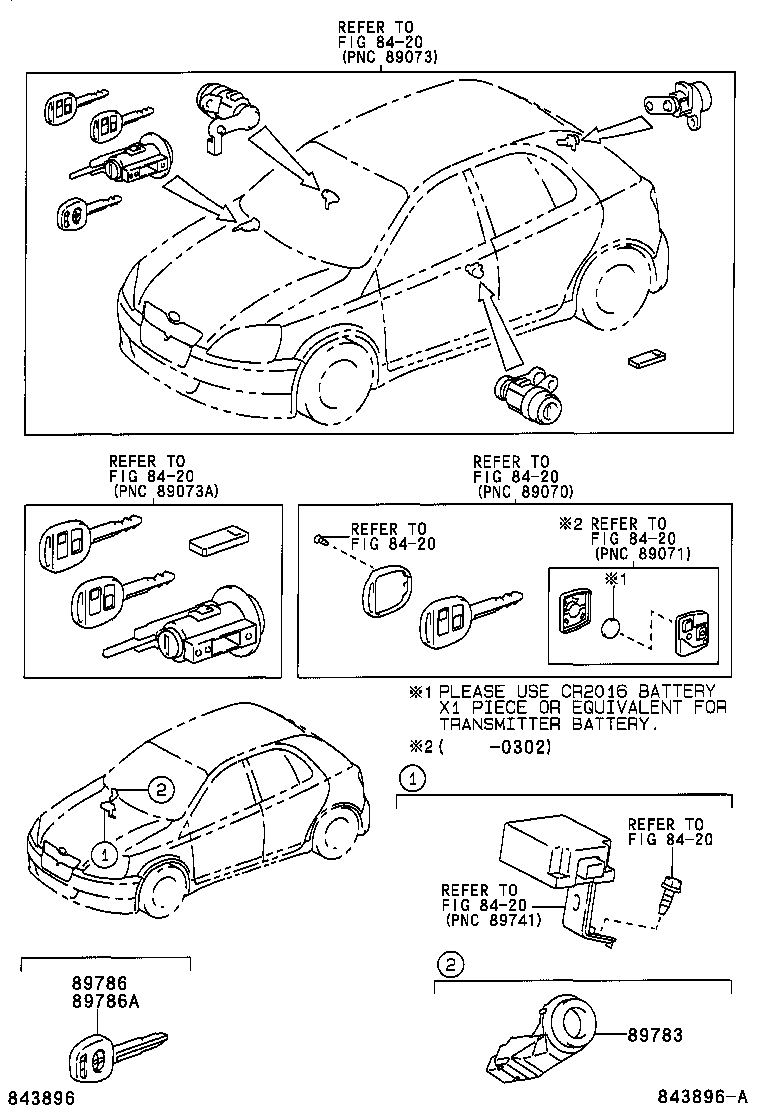

Click highlighted areas on diagram

W/O(KEY LESS ENTRY)

diagram 89703 89708C 89783 89785 89785A 89786 89786A
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-0D010

NLP10,SCP1#..FRP

 1
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-0D010

NLP10,SCP1#..FRP

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D010

NLP10,SCP1#..FRP

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-05020

NLP10,SCP1#..FRP

 1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-05030

NLP10,SCP1#..FRP

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

NLP10,SCP1#..FRP

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

NLP10,SCP1#..FRP

 1

(0101- )FRP

Click highlighted areas on diagram

W(KEY LESS ENTRY)-W/O(DOUBLE-LOCK)

diagram 8420 8420 8420 8420 8420 8420 8420 89783 89785 89785A 89786 89786A
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D010

NLP10,SCP1#..FRP

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-05020

NLP10,SCP1#..FRP

 1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-05030

NLP10,SCP1#..FRP

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

NLP10,SCP1#..FRP

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

NLP10,SCP1#..FRP

 1
Linked diagrams
8420

(0101- )FRP..RHD

Click highlighted areas on diagram

W(KEY LESS ENTRY)-W(DOUBLE-LOCK)

diagram 8420 8420 8420 8420 8420 8420 8420 89783 89786 89786A
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D010

NLP10,SCP1#..FRP

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

NLP10,SCP1#..FRP

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

NLP10,SCP1#..FRP

 1
Linked diagrams
8420
