NLP10R-CGMRXW (2003)
Toyota Yaris (Frp)
ILLUST NO. 2 OF 6(0101- )FRP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1NDTV..NLP10..FRP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
NLP10,SCP1#..FRP |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D030 |
NLP10..FRP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52051 |
NLP10..FRP;SCP1#..FRP..LHD..(SOL,TRSTD) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D010 |
NLP10..FRP |
2 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D010 |
NLP10..FRP |
2 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
NLP10..FRP |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-02010 |
NLP10,SCP1#..FRP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87019 |
NLP10..FRP;SCP10..FRP..5FS;SCP10..FRP..TSGS;SCP12..FRP..TRSTD |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
NLP10,SCP1#..FRP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NLP10,SCP1#..FRP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NLP10..FRP DEALER KIT |
1 | ||
| 90987-02022 |
NLP10..FRP |
1 | ||
| 90987-02022 |
NLP10..FRP |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-52020 |
NLP10..FRP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87019 |
NLP10,SCP1#..FRP PART NUMBER LABEL=90080-87019 |
1 | ||
| 90080-87013 |
NLP10,SCP1#..FRP PART NUMBER LABEL=90080-87013 |
1 | ||
| Common parts | ||||
| 82715-52010 | ||||
| 90179-06292 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| 91651-40614 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 3 OF 6(0101- )FRP..RHD..4FC,5F

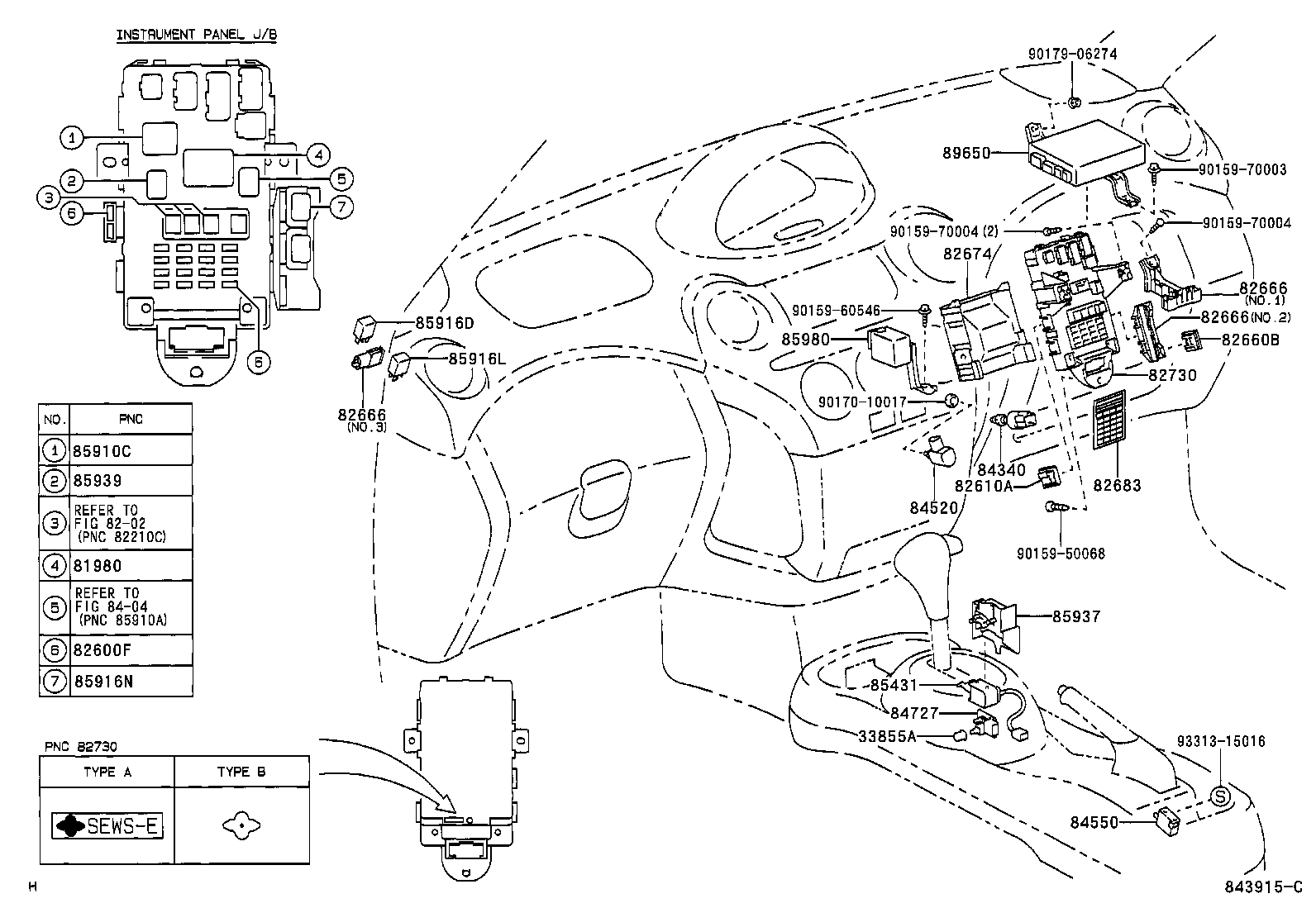

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-05040 |
NLP10,SCP1#..FRP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82022 |
NLP10,SCP1#..FRP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
NLP10,SCP1#..FRP 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
NLP10,SCP1#..FRP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82033 |
NLP10,SCP1#..FRP 25A,MINI FUSE |
1 | ||
| 90080-82023 |
NLP10,SCP1#..FRP 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82024 |
NLP10,SCP1#..FRP 30A,MINI FUSE,GREEN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20080 |
NLP10..FRP |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
3 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-0D010 |
NLP10,SCP1#..FRP NO.1 |
1 | ||
| 82666-0D030 |
NLP10,SCP1#..FRP NO.2 |
1 | ||
| 82666-20270 |
NLP10,SCP1#..FRP..(SOL,TRSTD) NO.3 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-0D070 |
NLP10,SCP1#..FRP |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0D040 |
NLP10,SCP1#..FRP..(SOL,TRSTD) MARK N |
1 | ||
| 82732-52060 |
NLP10,SCP1#..FRP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82732-0D010 |
NLP10,SCP1#..FRP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-20060 |
NLP10..FRP;SCP10..FRP..5FS |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NLP10..FRP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NLP10,SCP1#..FRP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NLP10,SCP1#..FRP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
NLP10,SCP1#..FRP |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90080-87013 |
NLP10,SCP1#..FRP..(SOL,TRSTD) PART NUMBER LABEL=90080-87013 |
1 | ||
| 90080-87019 |
NLP10,SCP1#..FRP..(SOL,TRSTD) PART NUMBER LABEL=90080-87019 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-0D080 |
NLP10,SCP1#..FRP..RHD W(DOUBLE-LOCK) |
1 | ||
| 85980-0D060 |
NLP10,SCP1#..FRP..RHD W(DOUBLE-LOCK & KEY LESS ENTRY) |
1 | ||
| 85980-0D070 |
NLP10,SCP1#..FRP..RHD W(POWER DOOR LOCK) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D080 |
NLP10..FRP..RHD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06274 | ||||
| 93313-15016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 4 OF 6(0101- )FRP..RHD

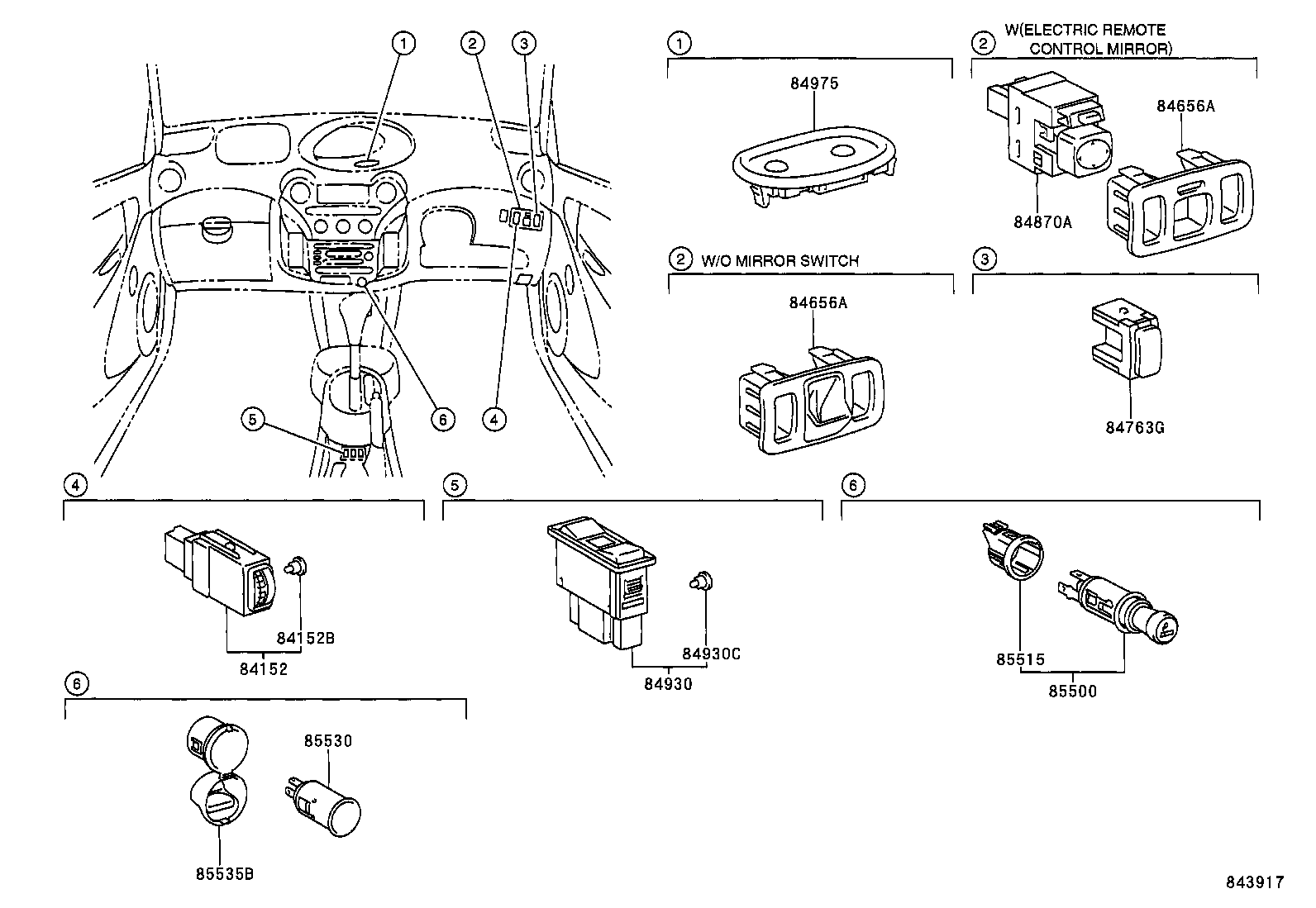

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 84152-0D021 |
NLP10,SCP1#..FRP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90011-11047 |
NLP10,SCP1#..FRP |
1 | ||
| 90011-11015 |
NLP10,SCP1#..FRP |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02020B3 |
NLP10,SCP12..FRP..TRSTD DK.GRAY,TRIM10,17,18 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-02020B3 |
NLP10,SCP12..FRP..TRSTD DK.GRAY,TRIM10,17,18 |
1 | ||
| 84656-02020B3 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) DK.GRAY,TRIM10,17 |
1 | ||
| 84656-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84656-02030B4 |
SCP10..FRP..LHD..TRSTD;NLP10,SCP12..FRP..TRSTD W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM10,17 |
1 | ||
| 84763G - COVER, HOLE NO.1 | ||||
| 84763-02020B4 |
NLP10,SCP1#..FRP MD.GRAY,TRIM11 |
1 | ||
| 84763-02020B3 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,17 |
1 | ||
| 84763-02020B3 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,17,18 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02030 |
NLP10..FRP..RHD..TRSTD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0D011 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930-0D010 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90011-11046 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 90011-11017 |
NLP10,SCP1#..FRP..TRSTD |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-0D090 |
NLP10,SCP1#..FRP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09020 |
NLP10,SCP1#..FRP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NLP10,SCP1#..FRP |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
NLP10,SCP1#..FRP |
1 | ||
ILLUST NO. 6 OF 6(0101- )FRP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NLP10,SCP1#..FRP (J) |
2 | ||
| 84231-0D010 |
NLP10,SCP1#..FRP (L) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NLP10,SCP1#..FRP (J) |
2 | ||
| 84231-0D010 |
NLP10,SCP1#..FRP (L) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D010 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D010 |
NLP10,SCP1#..FRP..(SOL,TRSTD) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D060 |
NLP10,SCP1#..FRP..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D060 |
NLP10,SCP1#..FRP..RHD |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-70003 | ||||
ILLUST NO. 5 OF 6(0101- )FRP..RHD

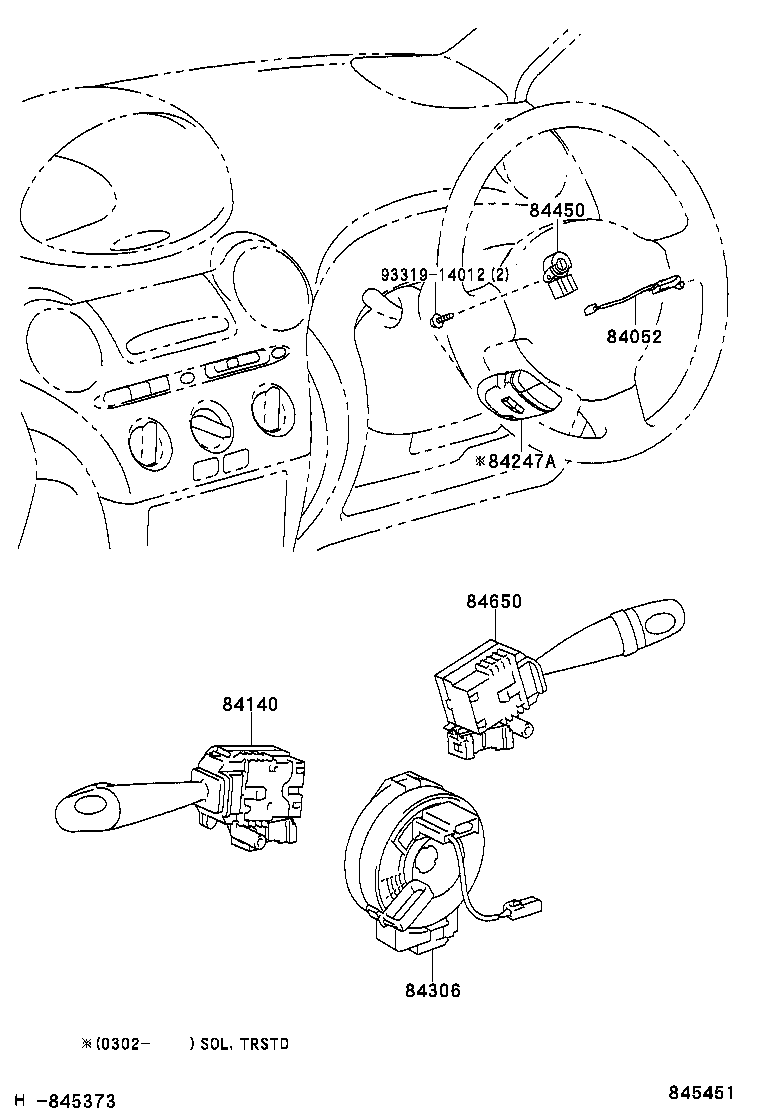

IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
NLP10,SCP1#..FRP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 84140-0D070 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(FRONT FOG LAMP & DRIVING LAMP) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-0D010B0 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,11,17 |
1 | ||
| 84247-0D010B0 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,11,17,18 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0D050 |
NLP10,SCP1#..FRP..(SOL,TRSTD) W(STEERING AUDIO SWITCH) |
1 | ||
| 84306-0D012 |
NLP10,SCP1#..FRP |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
ILLUST NO. 1 OF 6(0302- )NLP10..FRP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NLP10,SCP1#..FRP YAZAKI |
1 | ||
| 83530-28020 |
NLP10,SCP1#..FRP DENSO |
1 | ||
| 83530-05010 |
NLP10,SCP1#..FRP JAEGER |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NLP10,SCP12..FRP..5F |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
