NLP10R-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0101- )FRP..RHD

Click highlighted areas on diagram

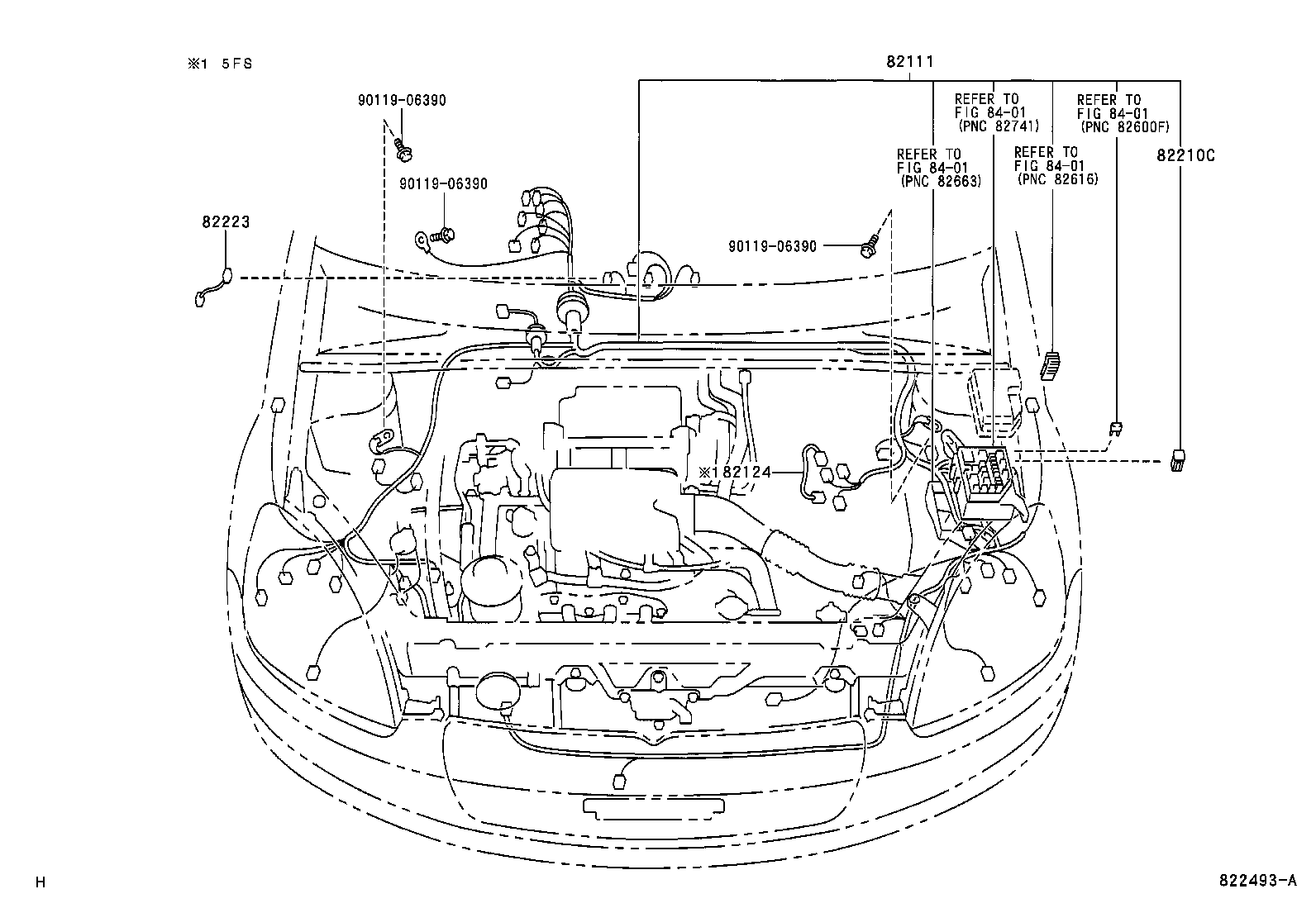

ENGINE ROOM

diagram 82111 82124 82210C 82223 8401 8401 8401 8401 9011906390 9011906390 9011906390
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0D860

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D860

 1
82111-0D880

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D880

 1
82111-0D861

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D861

 1
82111-0D881

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D881

 1
82210C - FUSIBLE LINK
90982-08274

NLP10,SCP1#..FRP

120A,TERM.:MALE,WHT

 1
90982-08282

NLP10,SCP1#..FRP..(SOL,TRSTD)

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08283

NLP10,SCP1#..FRP..(SOL,TRSTD)

30A,TERM.:FEMALE,PNK,TAIHEIYO

 1
90982-08280

NLP10,SCP1#..FRP

30A,TERM.:FEMALE,PNK,YAZAKI

 1
90982-08284

NLP10,SCP1#..FRP

40A,TERM.:FEMALE,GRN

 1
90982-08202

NLP10,SCP1#..FRP

60A,TERM.:MALE,YEL

 1
90982-08285

NLP10,SCP1#..FRP

50A,TERM.:FEMALE,RED,TAIHEIYO

 1
82223 - WIRE, SWITCH
82223-52040

NLP10..FRP

 1
Common parts
90119-06390
Linked diagrams
8401

ILLUST NO. 3 OF 7(0101- )FRP..RHD

Click highlighted areas on diagram

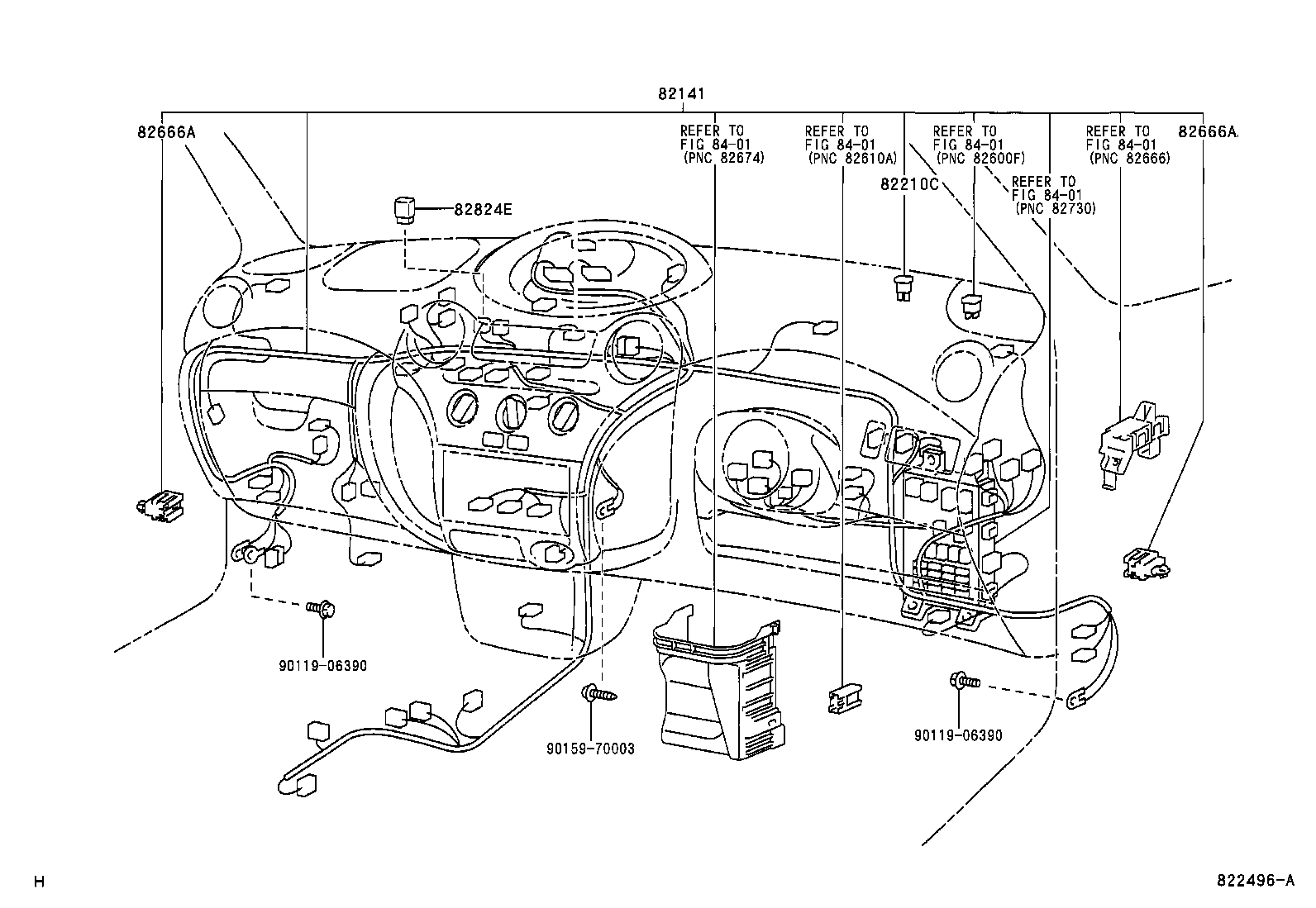

INSTRUMENT PANEL

diagram 82141 82210C 82666A 82666A 82824E 8401 8401 8401 8401 8401 9011906390 9011906390 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-0D600

NLP10..FRP..RHD

PART NUMBER LABEL=82141-0D600

 1
82210C - FUSIBLE LINK
90982-08274

NLP10,SCP1#..FRP

120A,TERM.:MALE,WHT

 1
90982-08282

NLP10,SCP1#..FRP..(SOL,TRSTD)

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08283

NLP10,SCP1#..FRP..(SOL,TRSTD)

30A,TERM.:FEMALE,PNK,TAIHEIYO

 1
90982-08280

NLP10,SCP1#..FRP

30A,TERM.:FEMALE,PNK,YAZAKI

 1
90982-08284

NLP10,SCP1#..FRP

40A,TERM.:FEMALE,GRN

 1
90982-08202

NLP10,SCP1#..FRP

60A,TERM.:MALE,YEL

 1
90982-08285

NLP10,SCP1#..FRP

50A,TERM.:FEMALE,RED,TAIHEIYO

 1
82666A - HOLDER, CONNECTOR NO.2
82666-0D020

NLP10,SCP1#..FRP

 2
82666A - HOLDER, CONNECTOR NO.2
82666-0D020

NLP10,SCP1#..FRP

 2
82824E - CONNECTOR, WIRING HARNESS
82824-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

 1
Common parts
90119-06390
90159-70003
Linked diagrams
8401

ILLUST NO. 4 OF 7(0101- )FRP..RHD

Click highlighted areas on diagram

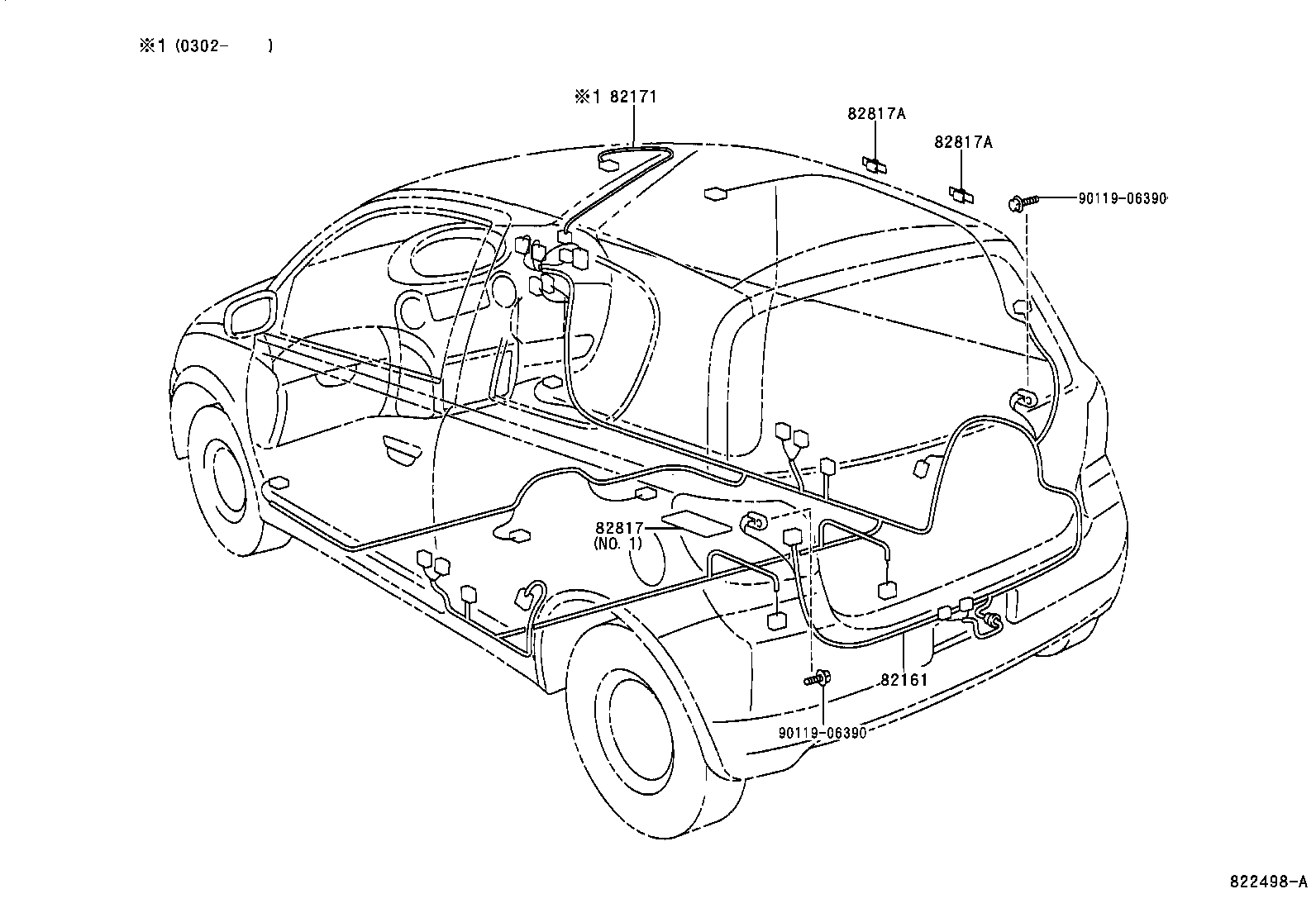

FLOOR & ROOF

diagram 82161 82171 82817 82817A 82817A 9011906390 9011906390
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-0D410

NLP10,SCP1#..FRP..RHD..3D

PART NUMBER LABEL=82161-0D410

 1
82161-0D420

NLP10,SCP1#..FRP..RHD..3D

PART NUMBER LABEL=82161-0D420

 1
82171 - WIRE, ROOF, NO.1
82171-0D020

NLP10,SCP1#..FRP..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16100

SCP10..RHD;NLP10,SCP12;SCP10..LHD..5F

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52020

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52020

NLP10,SCP1#..FRP..(SOL,TRSTD)

 2
Common parts
90119-06390

ILLUST NO. 5 OF 7(0101- )FRP..3D

Click highlighted areas on diagram

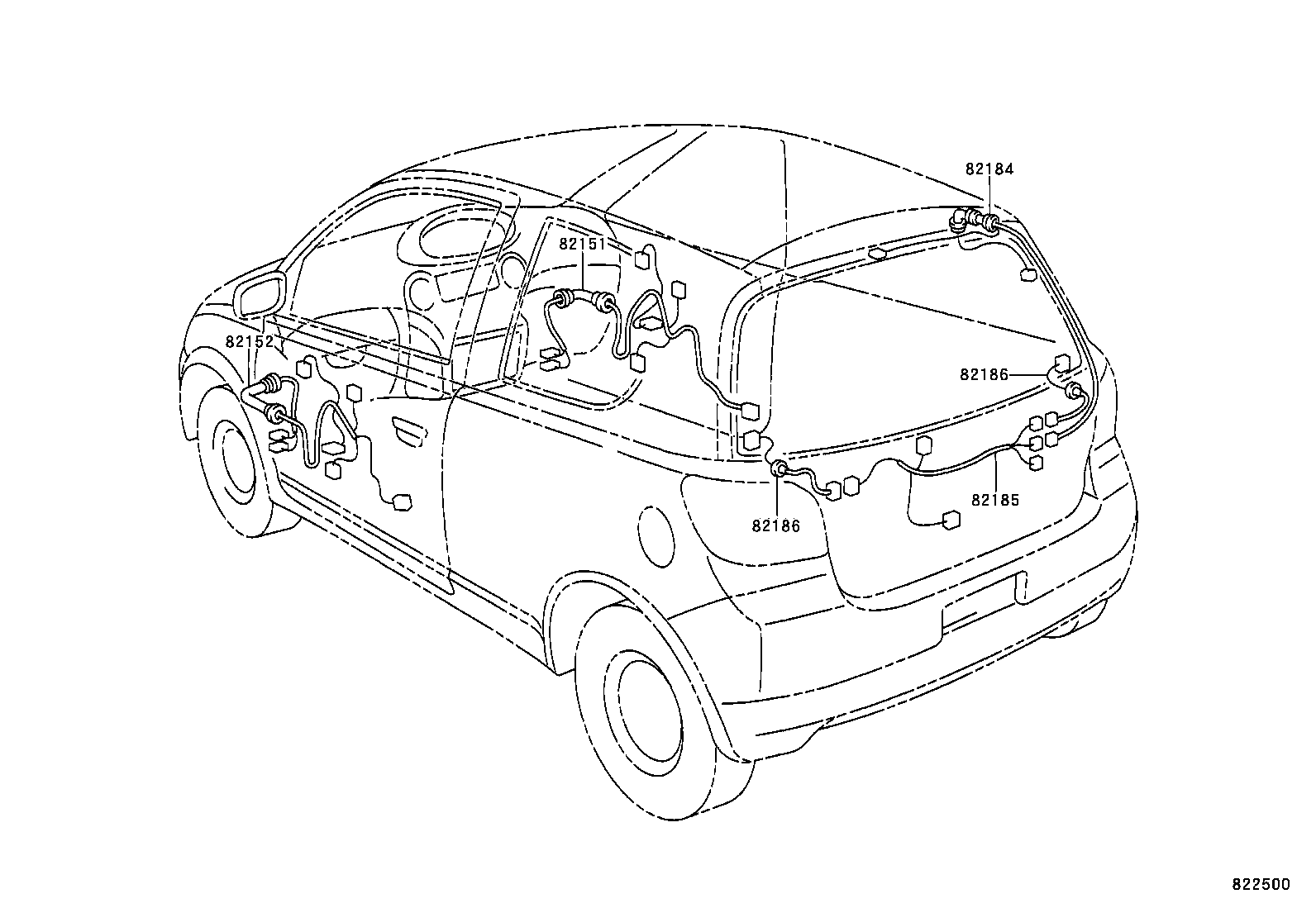

DOOR

diagram 82151 82152 82184 82185 82186 82186
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-0D030

NLP10,SCP1#..FRP..3D..TRSTD

W(POWER DOOR LOCK = DRIVER & PASSENGER)

 1
82151-0D040

NLP10,SCP1#..FRP..3D..TRSTD

W(POWER DOOR LOCK = DRIVER & PASSENGER & *80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82151-0D010

NLP10,SCP1#..FRP..TRSTD

 1
82151-0D020

NLP10,SCP1#..FRP..3D..(TRSTD,TSGS)

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82151-0D060

NLP10,SCP1#..FRP..RHD..3D..TRSTD

W(POWER DOOR LOCK = DOUBLE LOCK & *80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82151-0D050

NLP10,SCP1#..FRP..RHD..3D..TRSTD

W(POWER DOOR LOCK = DOUBLE LOCK)

 1
82151-0D090

NLP10,SCP1#..RHD..3D..(4FC,5F)

W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY)

 1
82151-0D070

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY)

 1
82151-0D080

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DRIVER SIDE & PASSENGER SIDE & POWER WINDOW = FRONT ONLY & *80,SIDE)

 1
82151-0D100

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY & *80,SIDE)

 1
82152 - WIRE, FRONT DOOR, LH
82152-0D050

NLP10,SCP1#..FRP..RHD..3D..TRSTD

W(POWER DOOR LOCK = DOUBLE LOCK)

 1
82152-0D040

NLP10,SCP1#..FRP..3D..TRSTD

W(POWER DOOR LOCK = DRIVER & PASSENGER & *80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82152-0D080

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DRIVER SIDE & PASSENGER SIDE & POWER WINDOW = FRONT ONLY & *80,SIDE)

 1
82152-0D030

NLP10,SCP1#..FRP..3D..TRSTD

W(POWER DOOR LOCK = DRIVER & PASSENGER)

 1
82152-0D020

NLP10,SCP1#..FRP..3D..(TRSTD,TSGS)

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82152-0D070

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DRIVER & PASSENGER & POWER WINDOW = FRONT ONLY)

 1
82152-0D010

NLP10,SCP1#..FRP..TRSTD

 1
82152-0D100

NLP10..FRP..RHD..3D..TRSTD;SCP1#..FRP..RHD..3D..(4FC,5F);SCP10..FRP..RHD..3D..TRSTD..5FS

W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW = FRONT ONLY & *80,SIDE)

 1
82152-0D060

NLP10,SCP1#..FRP..RHD..3D..TRSTD

W(POWER DOOR LOCK = DOUBLE LOCK & *80,DRIVER SIDE & PASSENGER SIDE & SIDE)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-0D030

NLP10,SCP1#..FRP..(TRSTD,TSGS)

 1
82184-0D020

SCP10..FRP..TRSTD..5FS;NLP10,SCP12..FRP..TRSTD

W(POWER DOOR LOCK = INTERLOCKING-DOOR KEY)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-0D040

SCP10..FRP..RHD..TRSTD..5FS;NLP10,SCP12..FRP..RHD..TRSTD

W(POWER DOOR LOCK = INTERLOCKING-DOOR KEY)

 1
82185-0D060

NLP10,SCP1#..FRP..RHD..TRSTD

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D010

NLP10,SCP1#..FRP

 2
82186 - WIRE, REAR WINDOW, NO.1
82186-0D010

NLP10,SCP1#..FRP

 2

ILLUST NO. 6 OF 7(0101- )FRP

Click highlighted areas on diagram

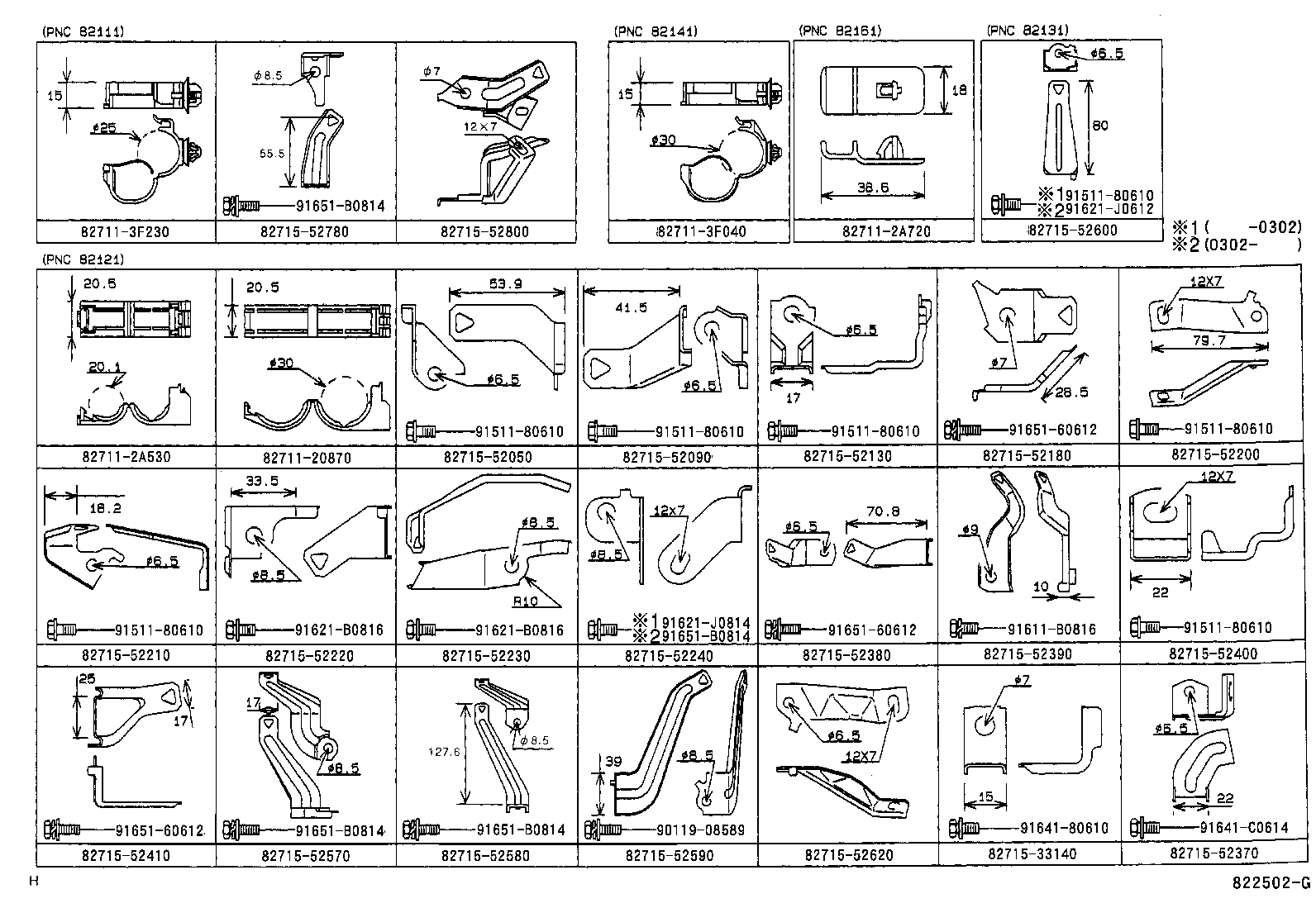

CLAMP & BRACKET

diagram 8271120870 827112A530 827112A720 827113F040 827113F230 8271533140 8271552050 8271552090 8271552130 8271552180 8271552200 8271552210 8271552220 8271552230 8271552240 8271552370 8271552380 8271552390 8271552400 8271552410 8271552570 8271552580 8271552590 8271552600 8271552620 8271552780 8271552800 9011908589 9151180610 9151180610 9151180610 9151180610 9151180610 9151180610 9151180610 91611B0816 91621B0816 91621B0816 91621J0612 91621J0814 9164180610 91641C0614 9165160612 9165160612 9165160612 91651B0814 91651B0814 91651B0814 91651B0814
Part # Description Qty Price
Common parts
82711-20870
82711-2A530
82711-2A720
82711-3F040
82711-3F230
82715-33140
82715-52050
82715-52090
82715-52130
82715-52180
82715-52200
82715-52210
82715-52220
82715-52230
82715-52240
82715-52370
82715-52380
82715-52390
82715-52400
82715-52410
82715-52570
82715-52580
82715-52590
82715-52600
82715-52620
82715-52780
82715-52800
90119-08589
91511-80610
91611-B0816
91621-B0816
91621-J0612
91621-J0814
91641-80610
91641-C0614
91651-60612
91651-B0814

ILLUST NO. 6 OF 7(0101- )FRP

Click highlighted areas on diagram

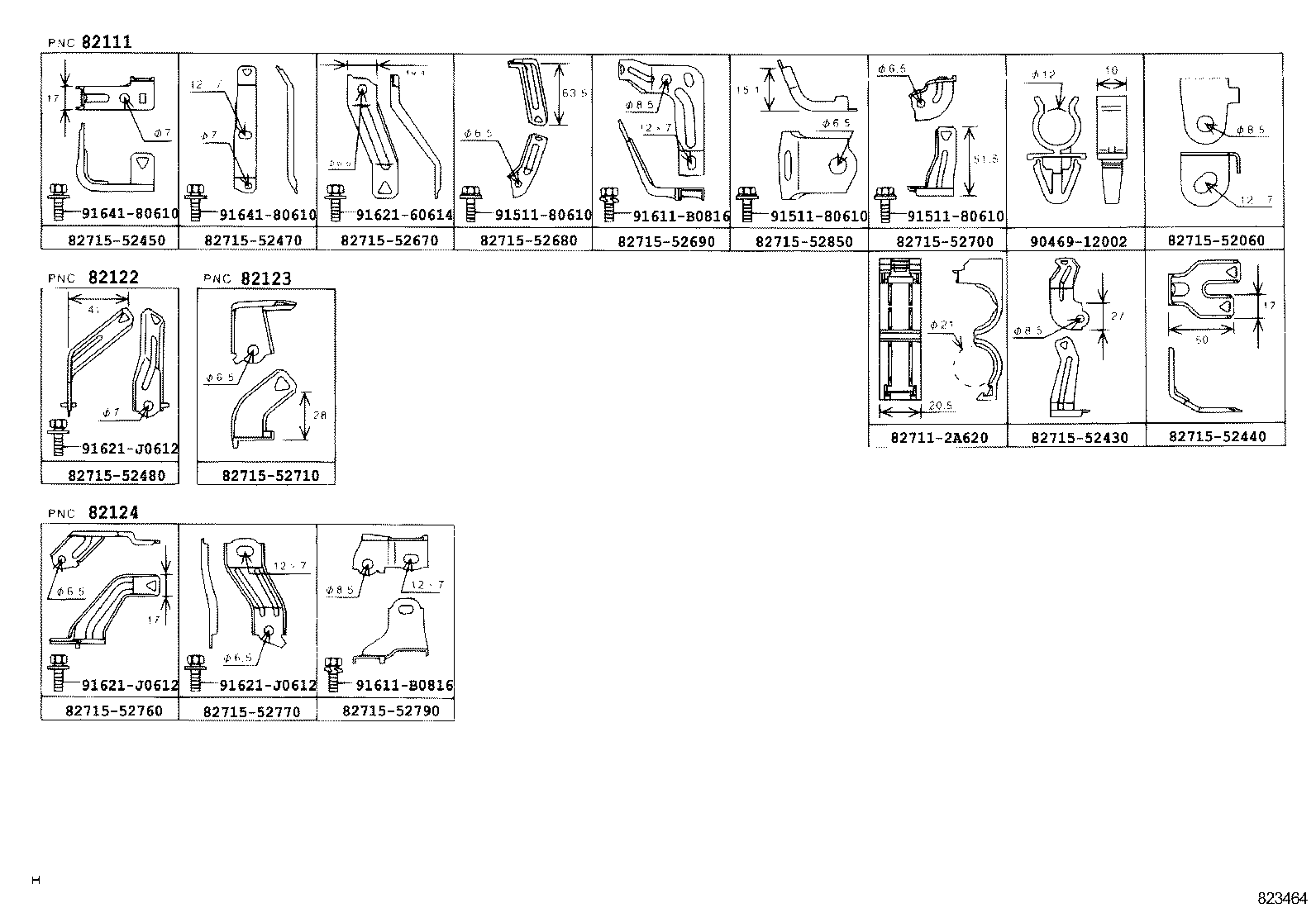

CLAMP & BRACKET

diagram 82111 82122 82123 82124 827112A620 8271552060 8271552430 8271552440 8271552450 8271552470 8271552480 8271552670 8271552680 8271552690 8271552700 8271552710 8271552760 8271552770 8271552790 8271552850 9046912002 9151180610 9151180610 9151180610 91611B0816 91611B0816 9162160614 91621J0612 91621J0612 91621J0612 9164180610 9164180610
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0D860

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D860

 1
82111-0D880

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D880

 1
82111-0D861

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D861

 1
82111-0D881

NLP10..FRP..RHD

PART NUMBER LABEL=82111-0D881

 1
82122 - WIRE, ENGINE, NO.2
82122-0D010

NLP10..FRP

 1
82122-0D020

NLP10..FRP

BATTERY=80D26R-MF

 1
82123 - WIRE, ENGINE, NO.3
82123-0D110

NLP10..FRP

 1
Common parts
82711-2A620
82715-52060
82715-52430
82715-52440
82715-52450
82715-52470
82715-52480
82715-52670
82715-52680
82715-52690
82715-52700
82715-52710
82715-52760
82715-52770
82715-52790
82715-52850
90469-12002
91511-80610
91611-B0816
91621-60614
91621-J0612
91641-80610

ILLUST NO. 2 OF 7(0302- )NLP10..FRP

Click highlighted areas on diagram

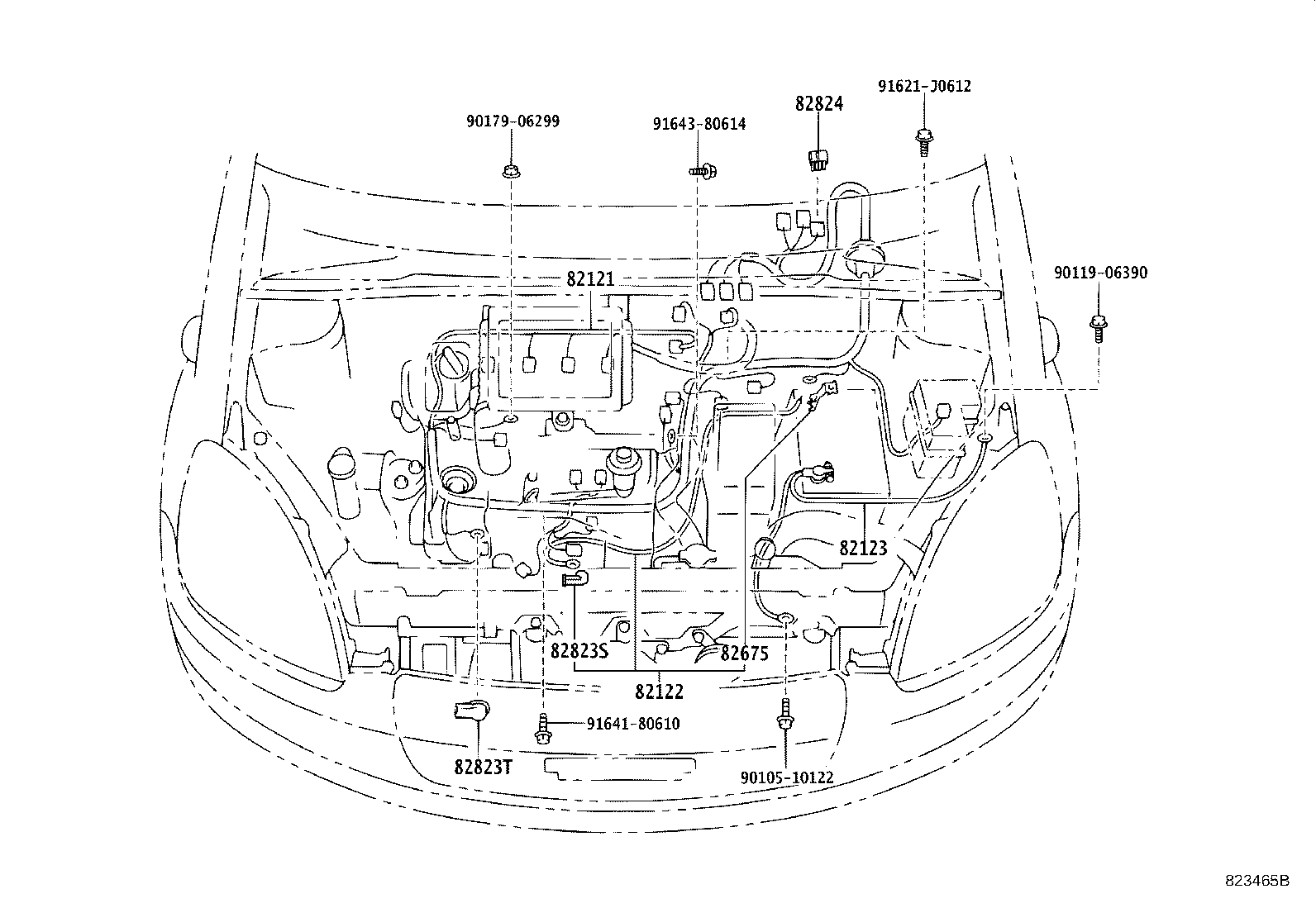

ENGINE

diagram 82121 82122 82123 82675 82823S 82823T 82824 9010510122 9011906390 9017906299 91621J0612 9164180610 9164380614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0D310

NLP10..FRP..RHD

 1
82122 - WIRE, ENGINE, NO.2
82122-0D010

NLP10..FRP

 1
82122-0D020

NLP10..FRP

BATTERY=80D26R-MF

 1
82123 - WIRE, ENGINE, NO.3
82123-0D110

NLP10..FRP

 1
82675 - TERMINAL, JUNCTION
82675-0D010

NLP10..FRP

 1
82823S - CAP, STARTER TERMINAL
82823-52010

NLP10..FRP

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NLP10,SCP1#..FRP

 1
82824 - CONNECTOR, WIRING HARNESS
82824-30130

NLP10..FRP

 1
Common parts
90105-10122
90119-06390
90179-06299
91621-J0612
91641-80610
91643-80614

ILLUST NO. 7 OF 7(0101- )FRP

Click highlighted areas on diagram

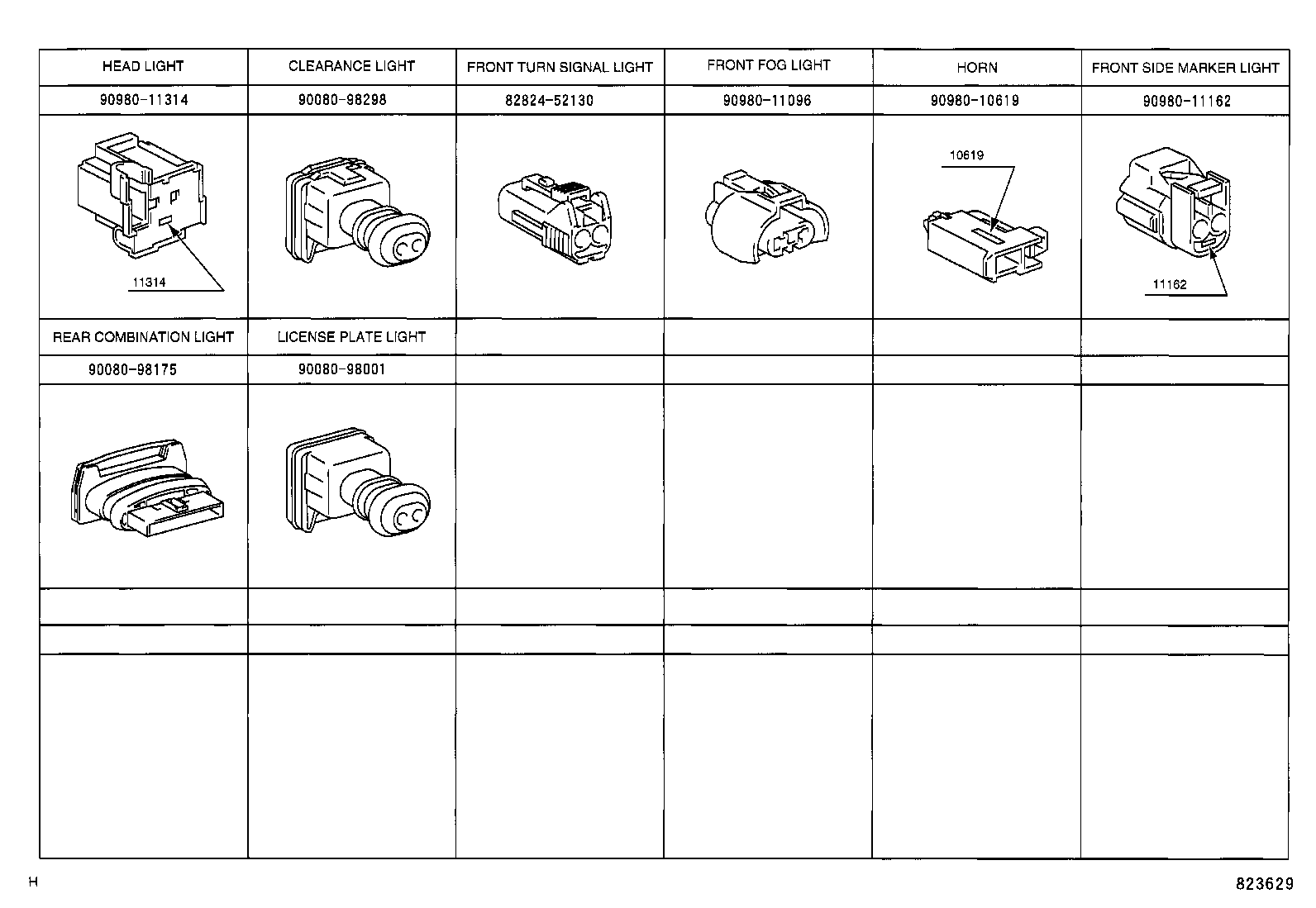

CONNECTOR

diagram 8282452130 9008098001 9008098175 9008098298 9098010619 9098011096 9098011162 9098011314
Part # Description Qty Price
Common parts
82824-52130
90080-98001
90080-98175
90080-98298
90980-10619
90980-11096
90980-11162
90980-11314
