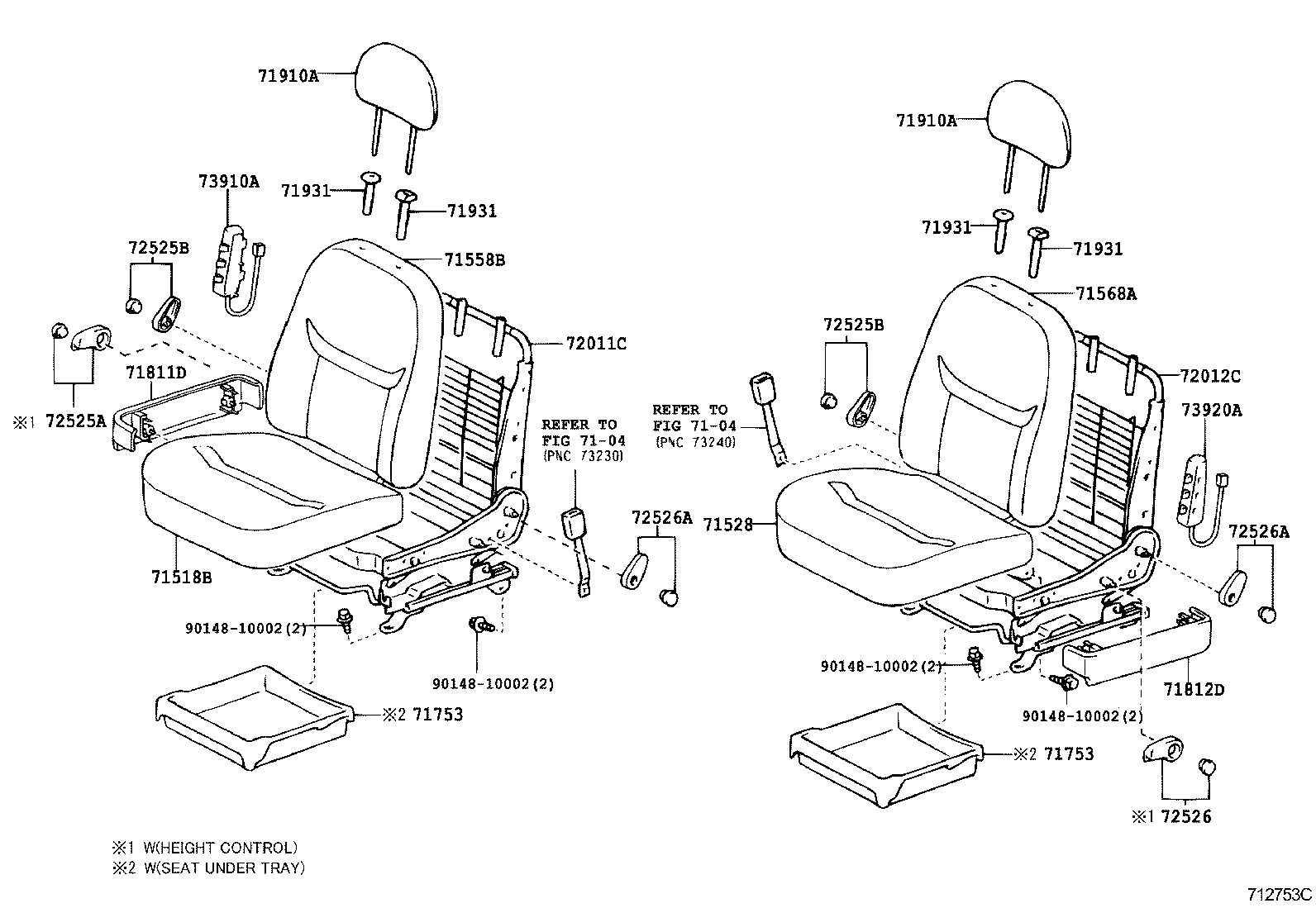

NLP10R-CGMRXW (2003)
Toyota Yaris (Frp)
(0302-0511)FRP..3D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-0D060J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71518-0D060B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D080B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM10,11 |
1 | ||
| 71528-0D080J0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A-*104,DK. GRAY,TRIM17 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-0D070B0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104,DK. GRAY/GRAY,TRIM10,11 |
1 | ||
| 71558-0D070J0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104,DK. GRAY/BLUE,TRIM17 |
1 | ||
| 71558-0D200B0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY/GRAY,TRIM10,11 |
1 | ||
| 71558-0D200J0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY/BLUE,TRIM17 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D230J0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY/BLUE,TRIM17 |
1 | ||
| 71568-0D220B0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104,DK. GRAY/GRAY,TRIM10,11 |
1 | ||
| 71568-0D230B0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DK. GRAY/GRAY,TRIM10,11 |
1 | ||
| 71568-0D220J0 |
NLP10,SCP1#..FRP..RHD..TRSTD SEAT = TYPE A-*104,DK. GRAY/BLUE,TRIM17 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71811-0D010B1 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,11,17,18 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D010B1 |
NLP10,SCP1#..FRP..TRSTD..5F;SCP10..FRP..LHD..TRSTD..5FS DK.GRAY,TRIM10,11,17 |
1 | ||
| 71812-0D010B1 |
NLP10..FRP..RHD..TRSTD DK.GRAY,TRIM10,11,17,18 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D170B0 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) SEAT = TYPE A OR TYPE C-*104,DK. GRAY,TRIM10,11,17 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP12..FRP..TRSTD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP12..FRP..TRSTD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP12..FRP..TRSTD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP12..FRP..TRSTD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP12..FRP..TRSTD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP12..FRP..TRSTD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP12..FRP..TRSTD W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-0D010B1 |
NLP10,SCP12..FRP..TRSTD W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-0D010B1 |
NLP10,SCP1#..FRP..(TRSTD,TSGS) W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0D140 |
NLP10,SCP1#..FRP..RHD..3D..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72010-0D090 |
NLP10,SCP1#..FRP..RHD..3D..TRSTD |
1 | ||
| 72010-0D091 |
NLP10,SCP1#..FRP..RHD..3D..TRSTD |
1 | ||
| 72010-0D141 |
NLP10,SCP1#..FRP..RHD..3D..TRSTD W(SRS SIDE AIR BAG) |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D150 |
NLP10,SCP1#..FRP..RHD..3D |
1 | ||
| 72020-0D160 |
NLP10,SCP1#..FRP..RHD..3D W(SRS SIDE AIR BAG) |
1 | ||
| 72020-0D151 |
NLP10,SCP1#..FRP..RHD..3D |
1 | ||
| 72020-0D161 |
NLP10,SCP1#..FRP..RHD..3D W(SRS SIDE AIR BAG) |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72526-0D060B0 |
NLP10,SCP1#..FRP..3D..TRSTD..5F;SCP10..FRP..LHD..3D..TRSTD..5FS DK.GRAY,TRIM1# |
2 | ||
| 72526-0D060B0 |
NLP10..FRP..RHD..3D..TRSTD DK.GRAY,TRIM1# |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72526-0D060B0 |
NLP10,SCP1#..FRP..3D..TRSTD..5F;SCP10..FRP..LHD..3D..TRSTD..5FS DK.GRAY,TRIM1# |
2 | ||
| 72526-0D060B0 |
NLP10..FRP..RHD..3D..TRSTD DK.GRAY,TRIM1# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-0D050B1 |
NLP10,SCP1#..FRP..3D..(TRSTD,TSGS) DK.GRAY,TRIM1# |
2 | ||
| 72525-0D050B1 |
NLP10,SCP12..FRP..3D..TRSTD DK.GRAY,TRIM1# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-0D050B1 |
NLP10,SCP1#..FRP..3D..(TRSTD,TSGS) DK.GRAY,TRIM1# |
2 | ||
| 72525-0D050B1 |
NLP10,SCP12..FRP..3D..TRSTD DK.GRAY,TRIM1# |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90148-10002 | ||||
| Linked diagrams | ||||
| 7104 | ||||
