NLP10R-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )FRP

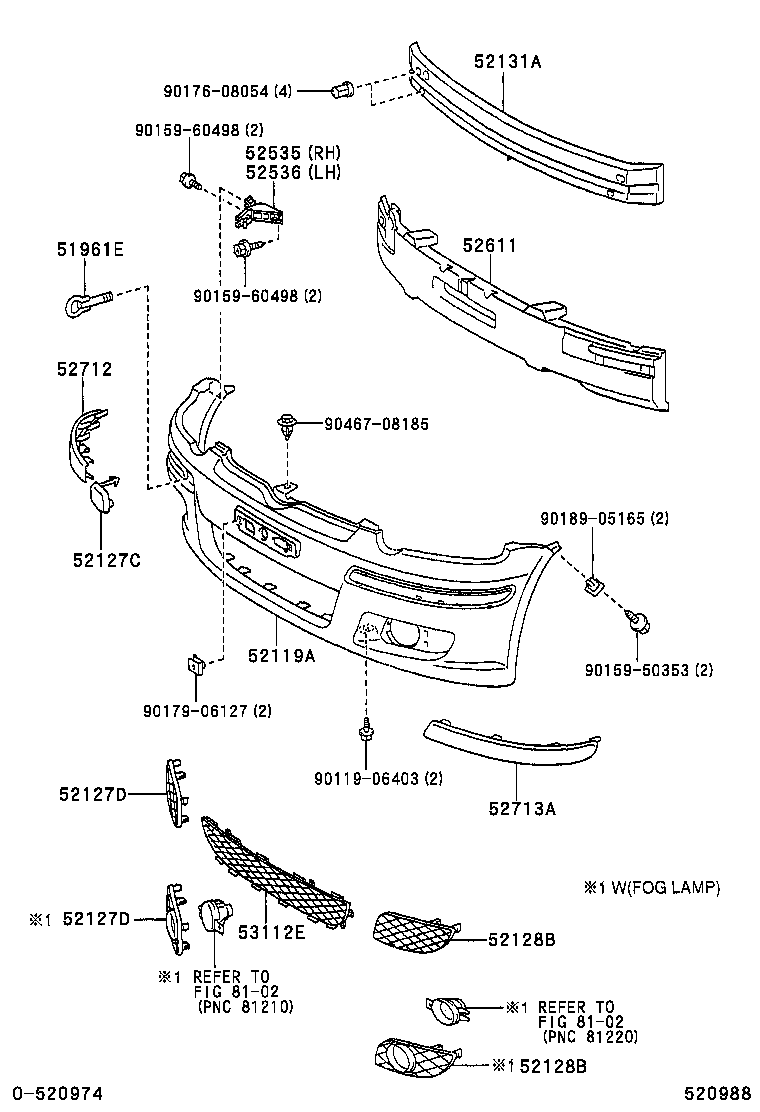

Click highlighted areas on diagram

diagram 51961E 52119A 52127C 52127D 52127D 52128B 52128B 52131A 52535 52536 52611 52712 52713A 53112E 8102 8102 9011906403 9015950353 9015960498 9015960498 9017608054 9017906127 9018905165 9046708185
Part # Description Qty Price
51961E - HOOK, FRONT
51960-0D050

NLP10,SCP1#..FRP

 1
52119A - COVER, FRONT BUMPER
52119-0D090

NLP10,SCP1#..FRP

 1
52127C - COVER, FRONT BUMPER HOLE
52721-0D010

NLP10,SCP1#..FRP..(TRSTD,TSGS)

UNPAINTED

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D050

NLP10,SCP1#..FRP

 1
52127-0D060

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(FOG LAMP)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D050

NLP10,SCP1#..FRP

 1
52127-0D060

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(FOG LAMP)

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(FOG LAMP)

 1
52128-0D010

NLP10,SCP1#..FRP

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

W(FOG LAMP)

 1
52128-0D010

NLP10,SCP1#..FRP

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-0D010

NLP10,SCP1#..FRP

 1
52021-0D010

NLP10,SCP1#..FRP

 1
52131-52070

NLP10,SCP1#..FRP

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D010

NLP10,SCP1#..FRP

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D010

NLP10,SCP1#..FRP

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0D010

NLP10,SCP1#..FRP

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-0D010

NLP10,SCP1#..FRP

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-0D010

NLP10,SCP1#..FRP..(TRSTD,TSGS)

UNPAINTED

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D020

NLP10,SCP1#..FRP..(SOL,TRSTD)

 1
Common parts
90119-06403
90159-50353
90159-60498
90176-08054
90179-06127
90189-05165
90467-08185
Linked diagrams
8102
