NLP10R-CGMRXW (2003)
Toyota Yaris (Frp)
Production
Feb 2003
-
Nov 2005
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0302- )NLP10..FRP..RHD

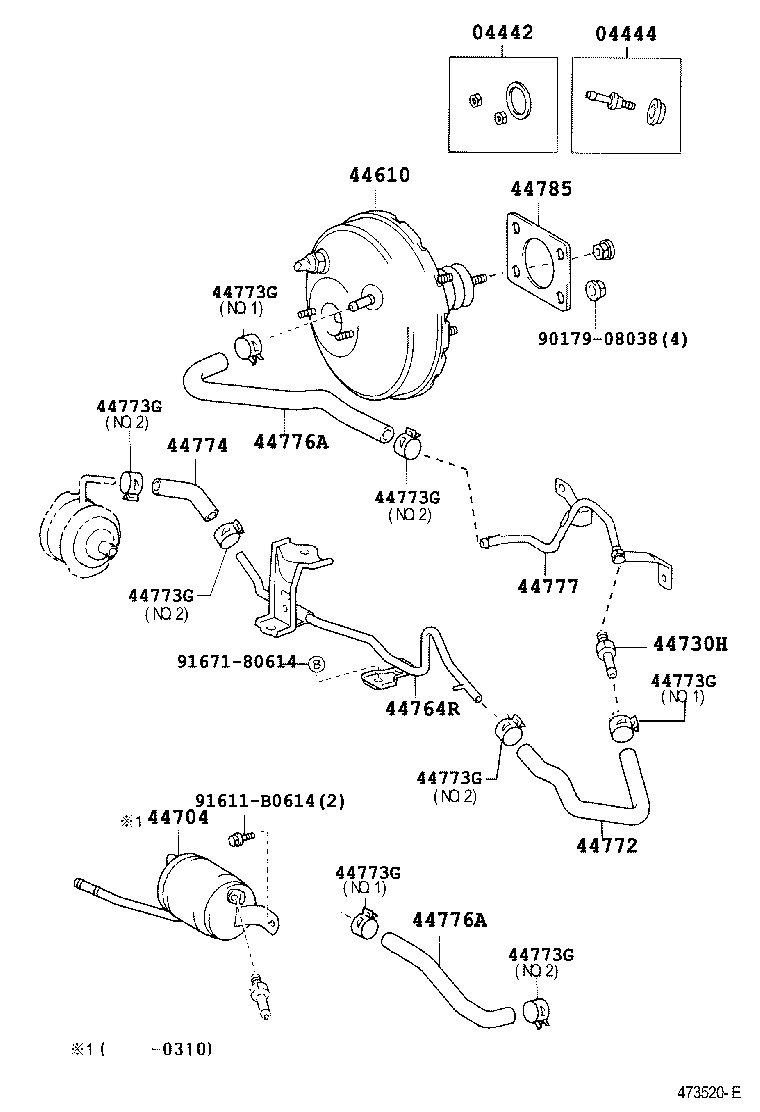

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04442 - FITTING KIT, BRAKE BOOSTER | ||||
| 04442-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 04444 - VALVE KIT, BOOSTER CONTROL | ||||
| 04444-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-09040 |
NLP10,SCP1#..FRP..RHD W(REAR DISC BRAKE) |
1 | ||
| 44610-09020 |
NLP10,SCP1#..FRP..RHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-52040 |
NLP10..FRP..RHD |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60050 |
NLP10..FRP |
1 | ||
| 44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR | ||||
| 44764-52011 |
NLP10..FRP |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52010 |
NLP10..FRP |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP10..FRP NO.2 |
4 | ||
| 90467-16014 |
NLP10..FRP NO.1 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52021 |
NLP10..FRP |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-52060 |
NLP10..FRP..RHD |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-52060 |
NLP10..FRP..RHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-52040 |
NLP10..FRP..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NLP10,SCP1#..FRP |
1 | ||
| 44785-0D010 |
NLP10,SCP1#..FRP |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91611-B0614 | ||||
| 91671-80614 | ||||
