NLP10R-CGMRXW (2003)

Toyota Yaris (Frp)

Production Feb 2003 - Nov 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0101- )FRP..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301B 31301B 31301C 31301C 31301F 31321 31324 31453A 31453B 55107A 9010508120 9017910088 9046816142 9413060800 9413061000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-52060

NLP10..FRP..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

NLP10,SCP1#..FRP..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NLP10,SCP1#..FRP..RHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP10,SCP1#..FRP..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NLP10,SCP1#..FRP..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NLP10,SCP1#..FRP..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

NLP10,SCP1#..FRP..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

NLP10,SCP1#..FRP..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243

NLP10,SCP1#..FRP..RHD..5F

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

NLP10,SCP1#..FRP..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-52070

NLP10..FRP..RHD

 1
Common parts
90105-08120
90179-10088
90468-16142
94130-60800
94130-61000

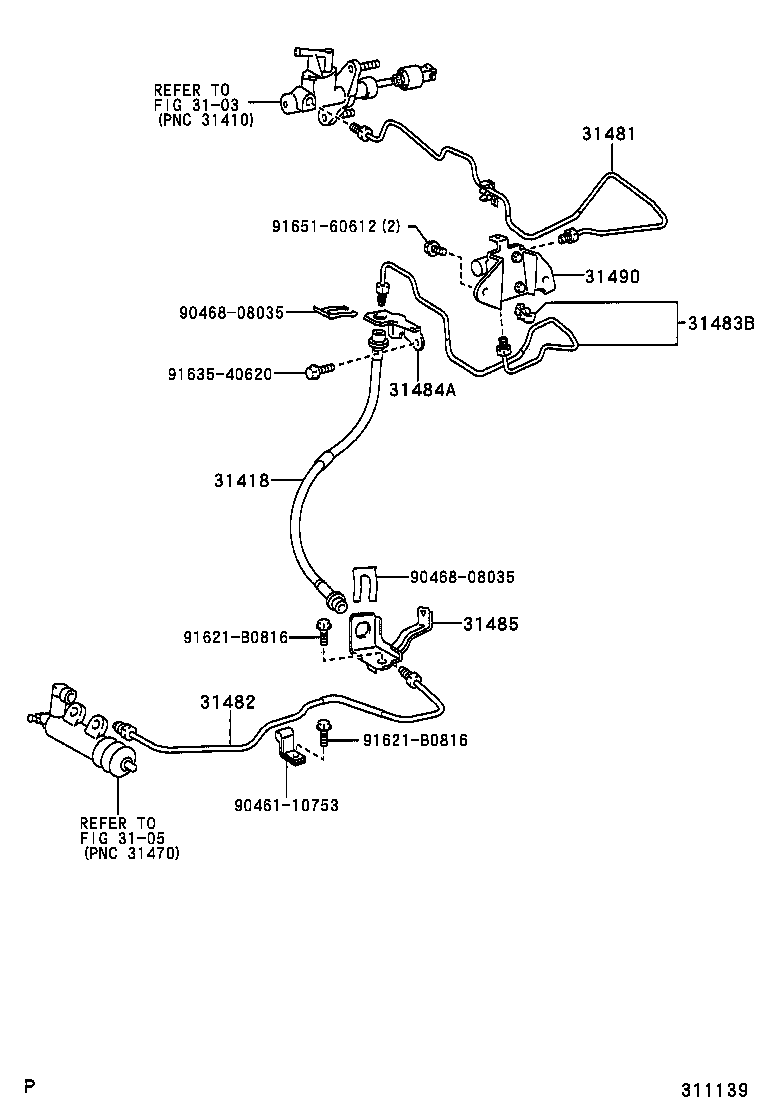

ILLUST NO. 2 OF 2(0302- )NLP10..FRP..RHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31483B 31484A 31485 31490 9046110753 9046808035 9046808035 91621B0816 91621B0816 9163540620 9165160612
Part # Description Qty Price
31418 - HOSE, CLUTCH
90080-94206

NLP10..FRP

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D060

NLP10..FRP..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D050

NLP10..FRP

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0D010

NLP10..FRP..RHD

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52010

NLP10,SCP1#..FRP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-52010

NLP10..FRP

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52020

NLP10..FRP

 1
Common parts
90461-10753
90468-08035
91621-B0816
91635-40620
91651-60612
Linked diagrams
3103
3105
