KSP90R-CHMRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )KSP90..FRP

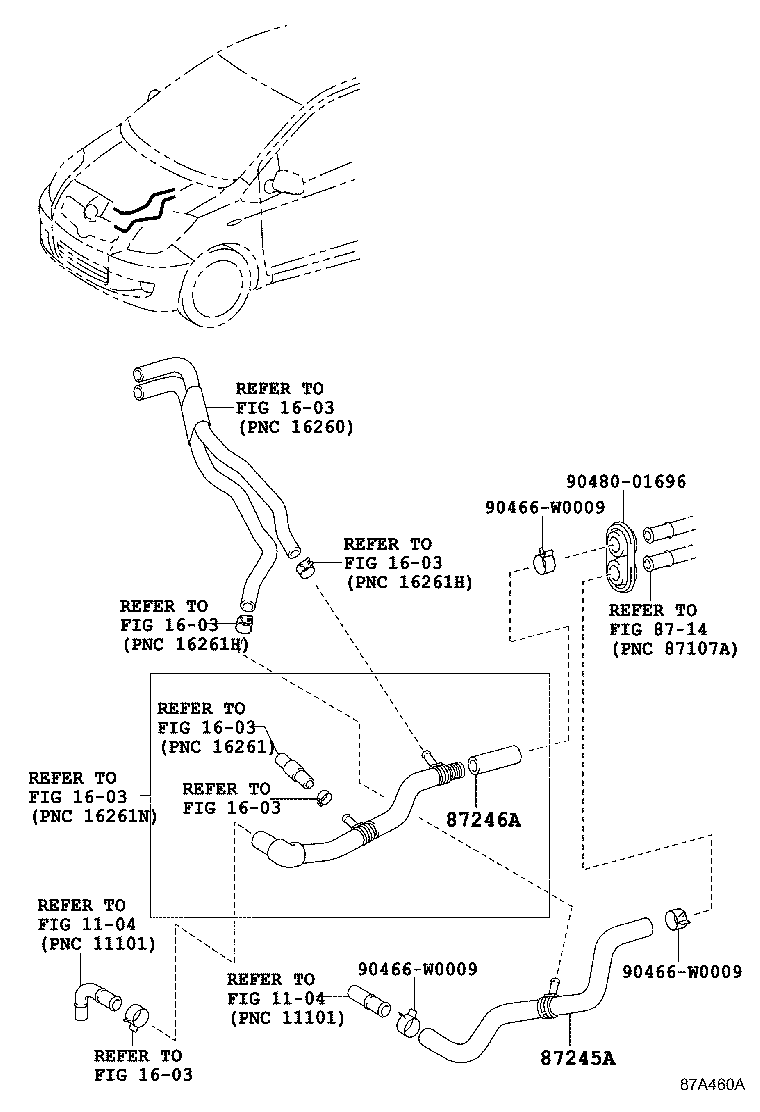

Click highlighted areas on diagram

diagram 1104 1104 1603 1603 1603 1603 1603 1603 1603 8714 87245A 87246A 90466W0009 90466W0009 90466W0009 9048001696
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-0D081

KSP90..FRP

 1
87209-0D081

KSP90..FRP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-0D090

KSP90..FRP

 1
87245-52190

KSP90..FRP

 1
Common parts
90466-W0009
90480-01696
Linked diagrams
1104
1603
8714
