KSP90R-CHMRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0811- )FRP..RHD..5F

Click highlighted areas on diagram

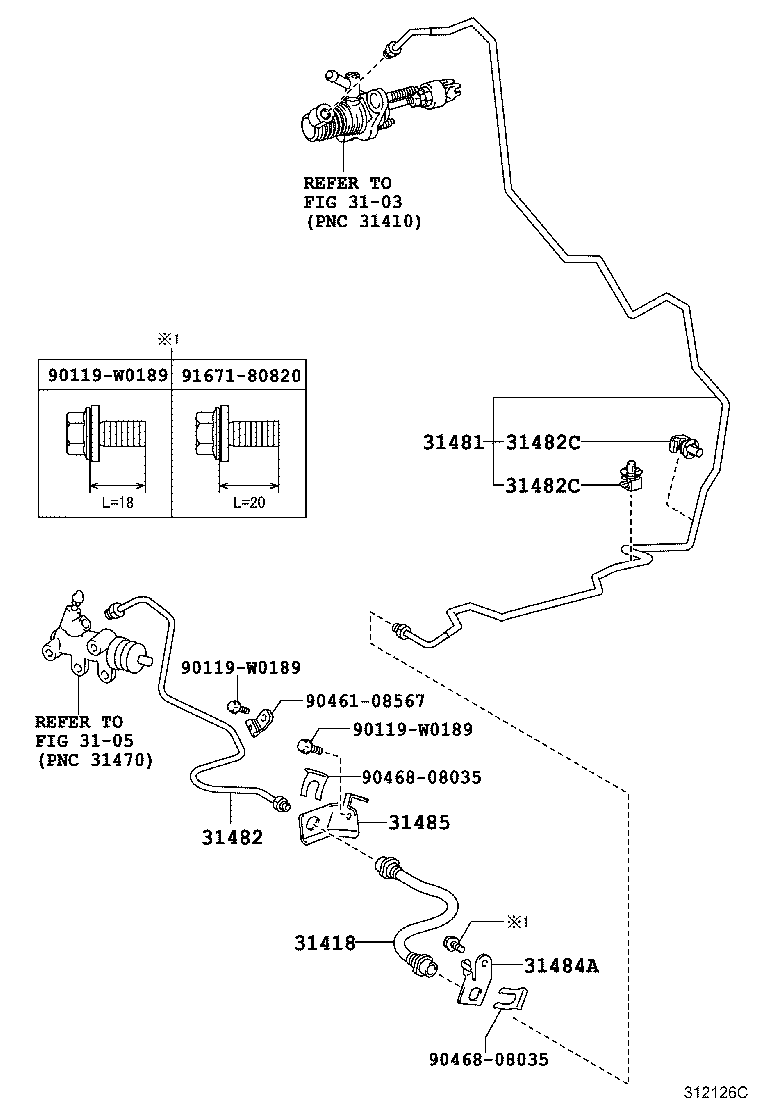

diagram 3103 3105 31418 31481 31482 31482C 31482C 31484A 31485 90119W0189 90119W0189 90119W0189 9046108567 9046808035 9046808035 9167180820
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-W2005

KSP90,SCP90..FRP..5F

 1
90947-W2005

KSP90,NSP90..FRP..(5F,6F)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D030

KSP90,NLP90,SCP90..FRP..RHD..5F

 1
31481-0D180

KSP90,NSP90..FRP..RHD..(5F,6F)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D070

KSP90..FRP..5F

 1
31482-0D070

KSP90,SCP90..FRP..5F

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,SCP90..FRP..5F

 2
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP90,NLP90,SCP90..FRP..5F

 2
90949-01D17

KSP90,NLP90,NSP90..FRP..(5F,6F)

 2
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP90,NLP90,NSP90..FRP..(5F,6F)

 1
31484-52090

KSP90,NLP90,SCP90..FRP..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-52100

KSP90..FRP..5F

 1
31484-52100

KSP90,SCP90..FRP..5F

 1
Common parts
90119-W0189
90461-08567
90468-08035
91671-80820
