KSP90R-CHMRKW (2008)

Toyota Yaris (Frp)

Production Nov 2008 - Jul 2011
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )1KRFE..FRP

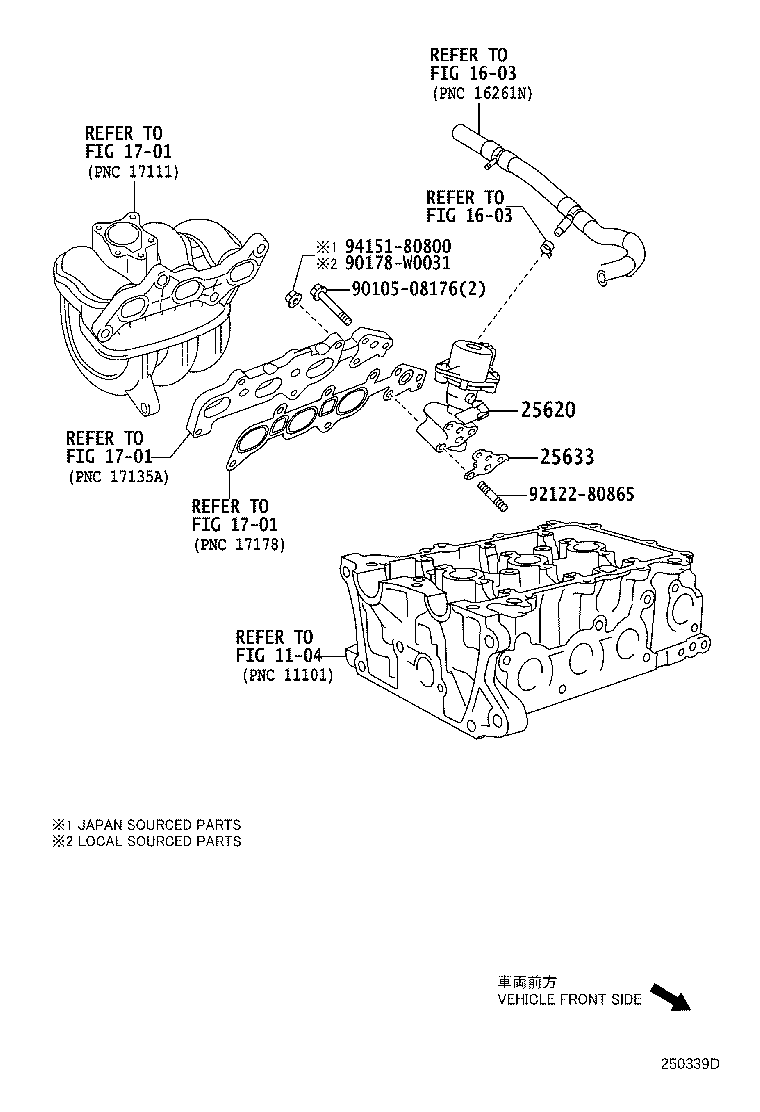

Click highlighted areas on diagram

diagram 1104 1603 1603 1701 1701 1701 25620 25633 9010508176 90178W0031 9212280865 9415180800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-40020

1KRFE..KSP90..FRP..5F

 1
25633 - GASKET, EGR VALVE
25633-40020

1KRFE..KSP90..FRP..5F

(J)

 1
25633-0Q010

1KRFE..KSP90..FRP..5F

(L)

 1
Common parts
90105-08176
90178-W0031
92122-80865
94151-80800
Linked diagrams
1104
1603
1701
