KSP90R-CHMRKW (2008)
Toyota Yaris (Frp)
Production
Nov 2008
-
Jul 2011
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0511-0904)1KRFE..FRP
Click highlighted areas on diagram
12V 0.9KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0Q031 |
1KRFE..KSP90..FRP 12V 0.9KW |
1 | ||
| 28100-0Q050 |
1KRFE..KSP90..FRP 12V 1.3KW |
1 | ||
| 28100-0Q031 |
1KRFE..KSP90..FRP 12V 0.9KW |
1 | ||
| 28100-0Q080 |
1KRFE..KSP90..FRP 12V 0.8KW |
1 | ||
| Common parts | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||

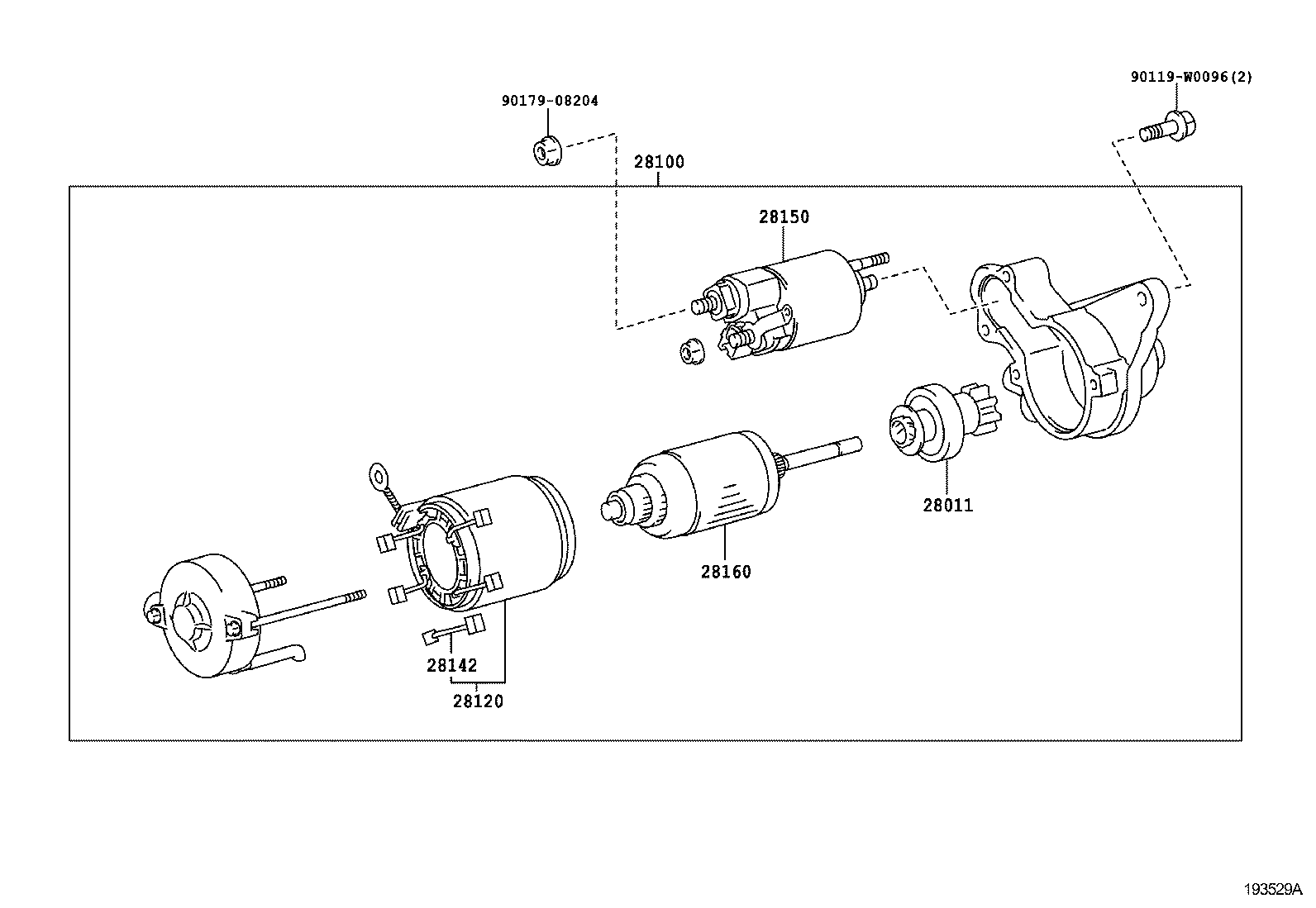

(1008- )1KRFE..FRP
Click highlighted areas on diagram
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-40070 |
1KRFE..KSP90..FRP |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Q031 |
1KRFE..KSP90..FRP 12V 0.9KW |
1 | ||
| 28100-0Q050 |
1KRFE..KSP90..FRP 12V 1.3KW |
1 | ||
| 28100-0Q031 |
1KRFE..KSP90..FRP 12V 0.9KW |
1 | ||
| 28100-0Q080 |
1KRFE..KSP90..FRP 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q050 |
1KRFE..KSP90..FRP |
1 | ||
| 28120-40120 |
1KRFE..KSP90..FRP |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10020 |
1KRFE..KSP90..FRP |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40070 |
1KRFE..KSP90..FRP |
1 | ||
| 28150-40090 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0D180 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 28160-40070 |
1KRFE..KSP90..FRP |
1 | ||
| Common parts | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||
