KSP90R-CHMRKW (2008)
Toyota Yaris (Frp)
Production
Nov 2008
-
Jul 2011
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )1KRFE..FRP

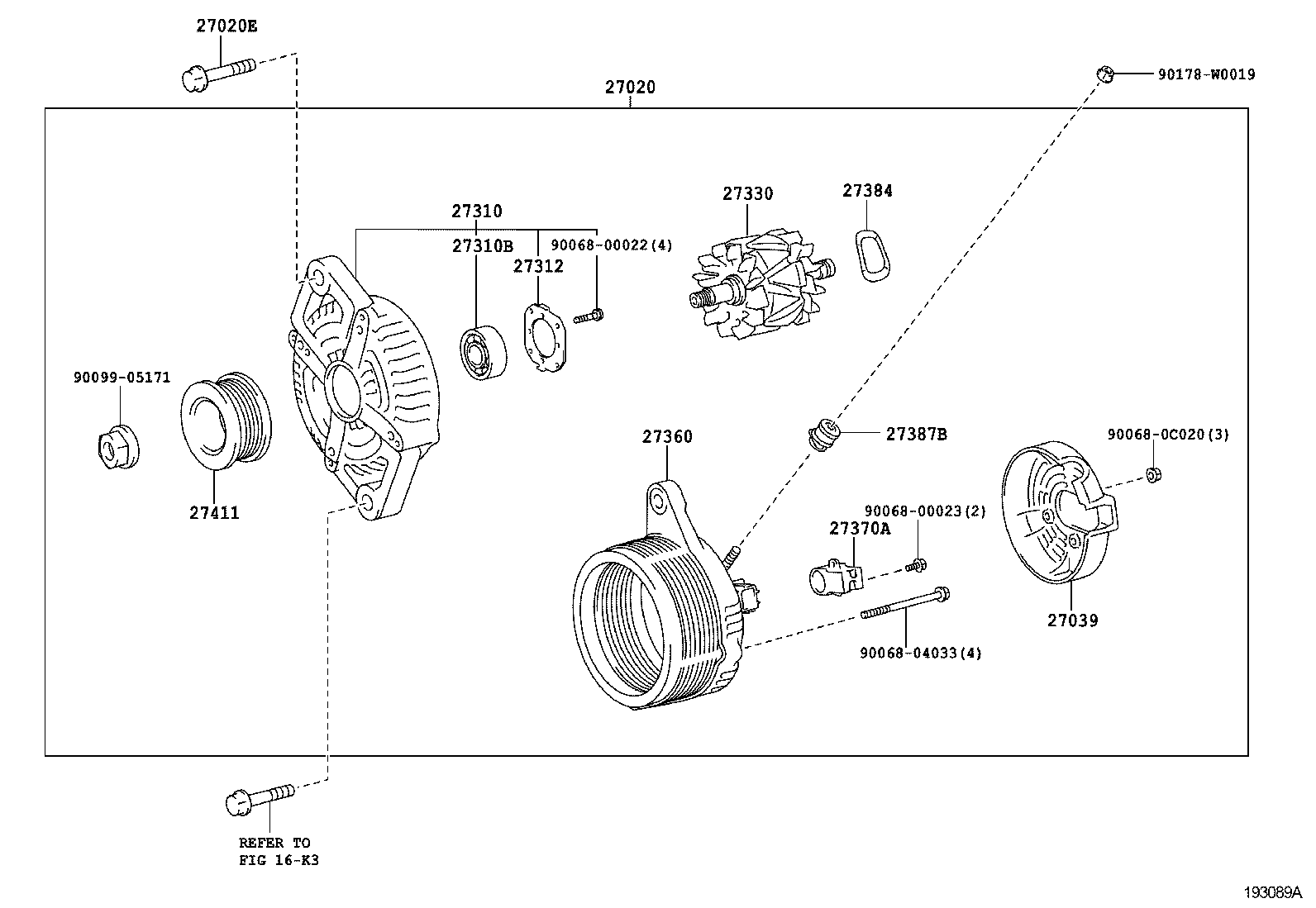

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q060 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q030 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q040 |
1KRFE..KSP90..FRP 12V 90A,ALTERNATOR-LIP2+(90A) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Q030 |
1KRFE,1NDTV..KSP90,NLP90..FRP |
1 | ||
| 27039-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Q030 |
1KRFE..KSP90..FRP |
1 | ||
| 27310-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10029 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0M040 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04033 | ||||
| 90068-0C020 | ||||
| 90099-05171 | ||||
| 90178-W0019 | ||||
