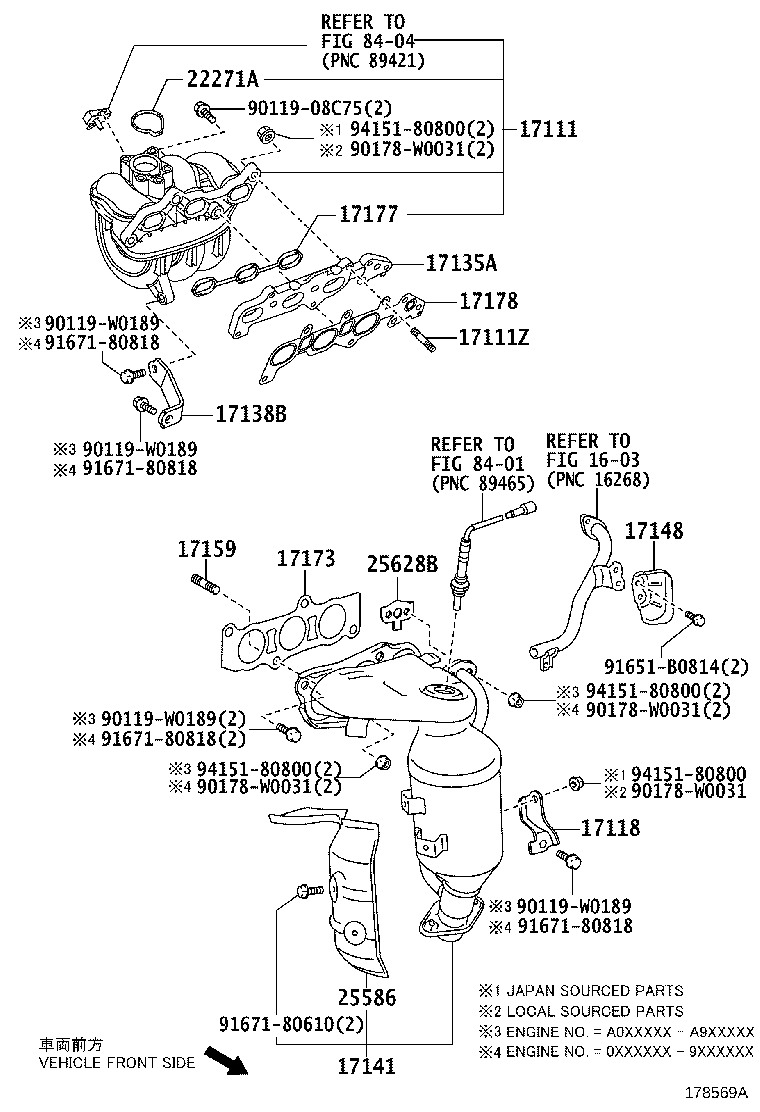

KSP90R-CHMRKW (2008)
Toyota Yaris (Frp)
(0811- )1KRFE..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0Q020 |
1KRFE..KSP90..FRP |
1 | ||
| 17120-0Q030 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80845 |
1KRFE..KSP90..FRP..5F |
2 | ||
| 92122-80828 |
1KRFE..KSP90..FRP |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-40010 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 17118-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 17118-40010 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 17118-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-40020 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 17138B - STAY, INTAKE MANIFOLD | ||||
| 17138-40040 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 17138-40040 |
1KRFE..KSP90..FRP..5F (J) |
1 | ||
| 17138-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 17138-0Q010 |
1KRFE..KSP90..FRP..5F (L) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-0Q020 |
1KRFE..KSP90..FRP *114=TOYOTA/0Q020/Y |
1 | ||
| 17140-0Q030 |
1KRFE..KSP90..FRP *114=TOYOTA/0Q030/Y |
1 | ||
| 17140-40070 |
1KRFE..KSP90..FRP *114=TOYOTA/40070/Y |
1 | ||
| 17140-0Q070 |
1KRFE..KSP90..FRP *114=TOYOTA/0Q070/Y |
1 | ||
| 17140-40040 |
1KRFE..KSP90..FRP *114=TOYOTA/40040/Y |
1 | ||
| 17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET) | ||||
| 17148-40020 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08055 |
1KRFE..KSP90..FRP |
4 | ||
| 90126-08055 |
1KRFE..KSP90..FRP |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 17173-40020 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 17173-40020 |
1KRFE..KSP90..FRP..5F (J) |
1 | ||
| 17173-0Q010 |
1KRFE..KSP90..FRP..5F (L) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0Q010 |
1KRFE..KSP90..FRP |
1 | ||
| 17177-0Q020 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 17177-40020 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-40020 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40010 |
1KRFE..KSP90..FRP |
1 | ||
| 22271-40010 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-40040 |
1KRFE..KSP90..FRP |
1 | ||
| 25586-0Q020 |
1KRFE..KSP90..FRP |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 25628-40020 |
1KRFE..KSP90..FRP (J) |
1 | ||
| Common parts | ||||
| 90119-08C75 | ||||
| 90119-W0189 | ||||
| 90178-W0031 | ||||
| 91651-B0814 | ||||
| 91671-80610 | ||||
| 91671-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
| 8404 | ||||
