KSP90R-CHMRKW (2008)
Toyota Yaris (Frp)

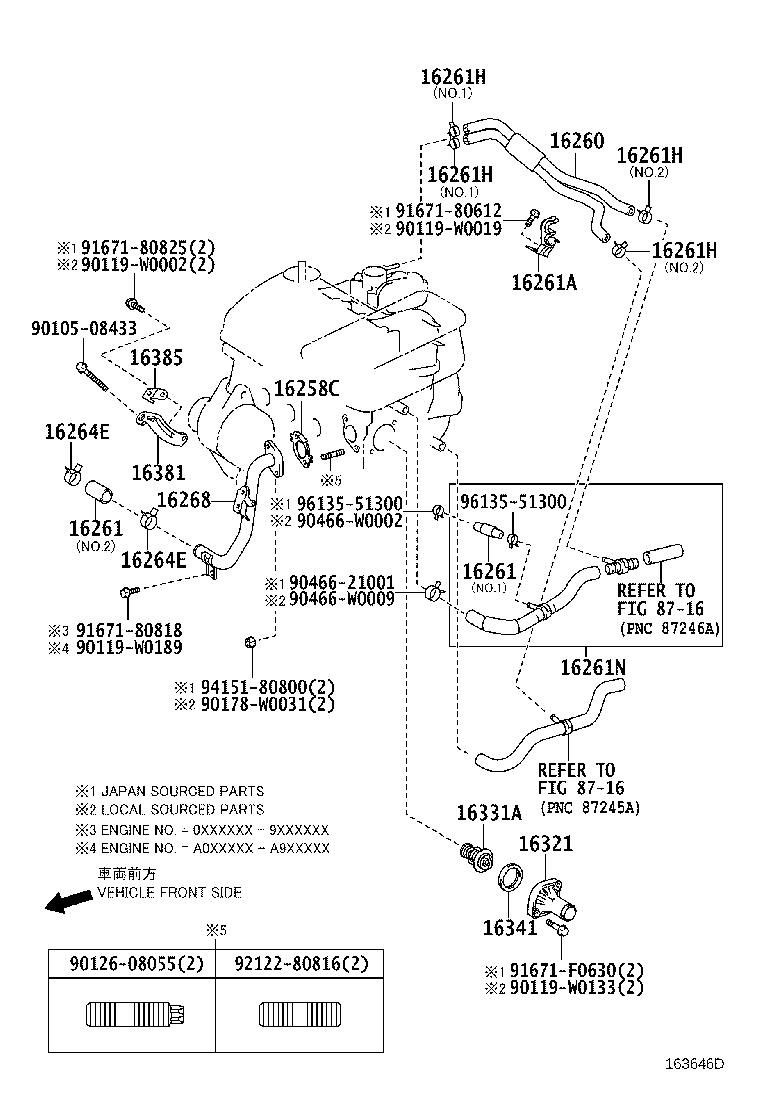

ILLUST NO. 2 OF 2(0811- )1KRFE..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40010 |
1KRFE..KSP90..FRP *138 |
1 | ||
| 16258-40010 |
1KRFE..KSP90..FRP |
1 | ||
| 16258-40020 |
1KRFE..KSP90..FRP..5F *132 |
1 | ||
| 16258-40020 |
1KRFE..KSP90..FRP..5F *138 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0Q040 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 16260-0Q080 |
1KRFE..KSP90..FRP |
1 | ||
| 16260-40070 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KSP90..FRP NO.2 |
1 | ||
| 16261-40111 |
1KRFE..KSP90..FRP |
1 | ||
| 16261-40061 |
1KRFE..KSP90..FRP L=67,NO.1 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KSP90..FRP NO.2 |
1 | ||
| 16261-40111 |
1KRFE..KSP90..FRP |
1 | ||
| 16261-40061 |
1KRFE..KSP90..FRP L=67,NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 16581-40010 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 16581-40010 |
1KRFE..KSP90..FRP |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP90..FRP (J),NO.1,(J),NO.2 |
2 | ||
| 96137-41501 |
1KRFE..KSP90..FRP NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..FRP (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (J),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..FRP (L),NO.1 & NO.2 |
4 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (L),NO.2 |
2 | ||
| 96137-51501 |
1KRFE..KSP90..FRP NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP90..FRP (J),NO.1,(J),NO.2 |
2 | ||
| 96137-41501 |
1KRFE..KSP90..FRP NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..FRP (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (J),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..FRP (L),NO.1 & NO.2 |
4 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (L),NO.2 |
2 | ||
| 96137-51501 |
1KRFE..KSP90..FRP NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP90..FRP (J),NO.1,(J),NO.2 |
2 | ||
| 96137-41501 |
1KRFE..KSP90..FRP NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..FRP (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (J),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..FRP (L),NO.1 & NO.2 |
4 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (L),NO.2 |
2 | ||
| 96137-51501 |
1KRFE..KSP90..FRP NO.2 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96135-51300 |
1KRFE..KSP90..FRP (J),NO.1,(J),NO.2 |
2 | ||
| 96137-41501 |
1KRFE..KSP90..FRP NO.1 |
2 | ||
| 90466-W0002 |
1KRFE..KSP90..FRP (L),NO.1 |
2 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (J),NO.2 |
2 | ||
| 96135-51300 |
1KRFE..KSP90..FRP (L),NO.1 & NO.2 |
4 | ||
| 90466-W0003 |
1KRFE..KSP90..FRP (L),NO.2 |
2 | ||
| 96137-51501 |
1KRFE..KSP90..FRP NO.2 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16260-40012 |
1KRFE..KSP90..FRP |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-30001 |
1KRFE..KSP90..FRP..5F |
2 | ||
| 90466-30001 |
1KRFE..KSP90..FRP |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-30001 |
1KRFE..KSP90..FRP..5F |
2 | ||
| 90466-30001 |
1KRFE..KSP90..FRP |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40040 |
1KRFE..KSP90..FRP |
1 | ||
| 16268-40050 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KSP90..FRP..5F (J) |
1 | ||
| 16321-40010 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 16321-0Q010 |
1KRFE..KSP90..FRP..5F (L) |
1 | ||
| 16321-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03134 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 90916-03134 |
1KRFE..KSP90..FRP |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KSP90..FRP |
1 | ||
| 16341-35010 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-40070 |
1KRFE..KSP90..FRP..5F |
1 | ||
| 16381-0Q011 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 16381-40041 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40011 |
1KRFE..KSP90..FRP |
1 | ||
| 16385-40011 |
1KRFE..KSP90..FRP..5F |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 90119-W0002 | ||||
| 90119-W0019 | ||||
| 90119-W0133 | ||||
| 90119-W0189 | ||||
| 90126-08055 | ||||
| 90178-W0031 | ||||
| 90466-21001 | ||||
| 90466-W0002 | ||||
| 90466-W0009 | ||||
| 91671-80612 | ||||
| 91671-80818 | ||||
| 91671-80825 | ||||
| 91671-F0630 | ||||
| 92122-80816 | ||||
| 94151-80800 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8716 | ||||
