KSP90L-CHMRKW (2008)
Toyota Yaris (Frp)
(0811- )1KRFE..FRP
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

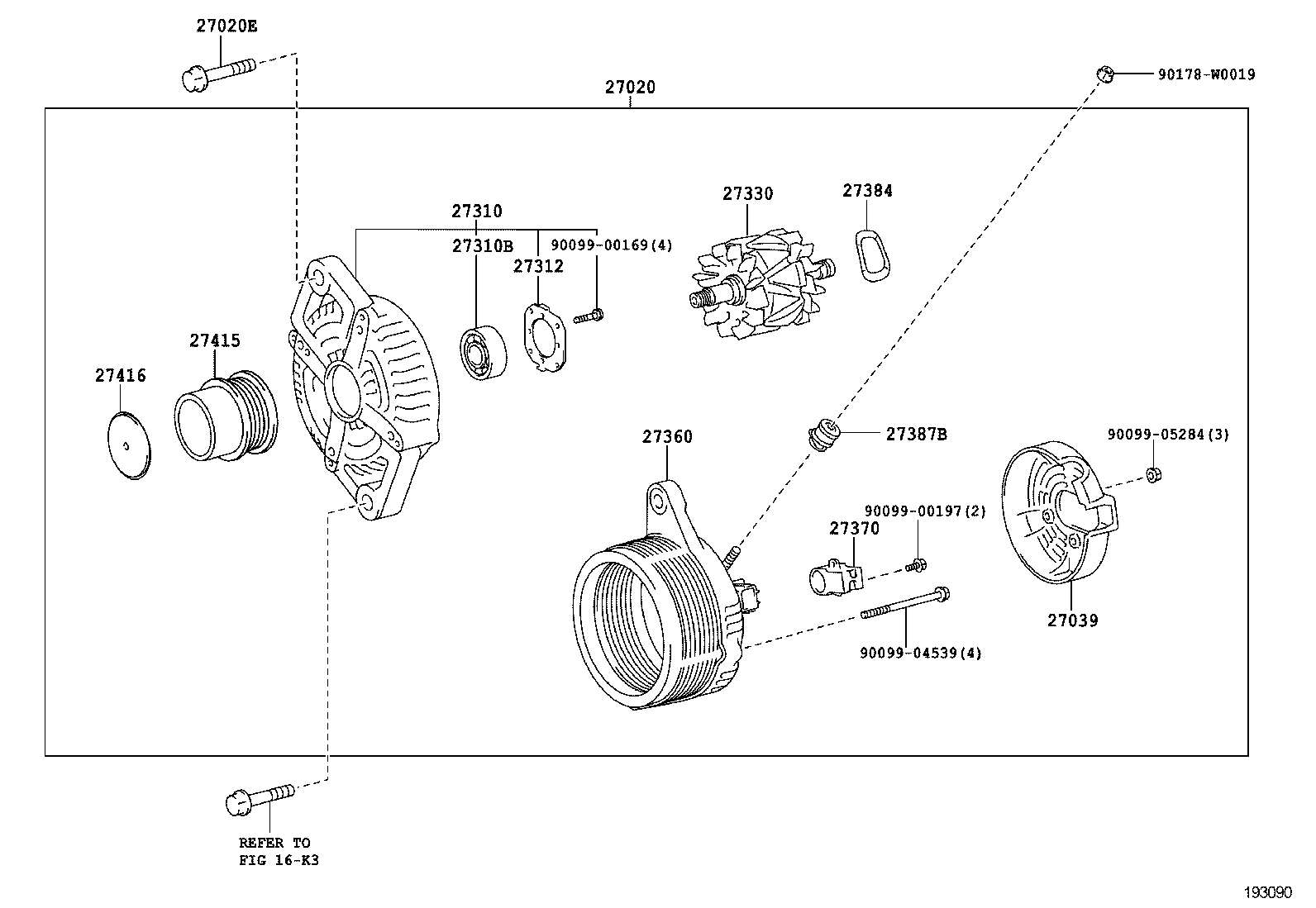

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q070 |
1KRFE..KSP90..FRP..LHD 12V 100A,COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q060 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q030 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q070 |
1KRFE..KSP90..FRP..LHD 12V 100A,COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27060-0Q040 |
1KRFE..KSP90..FRP 12V 90A,ALTERNATOR-LIP2+(90A) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Q030 |
1KRFE,1NDTV..KSP90,NLP90..FRP |
1 | ||
| 27039-26170 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27039-26170 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27039-31390 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27039-31390 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Q030 |
1KRFE..KSP90..FRP |
1 | ||
| 27310-40100 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27310-40100 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27310-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 90068-10029 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27312-72100 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27330-30070 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27330-0M040 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-40110 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27360-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27360-40110 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27384-50030 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27384-50030 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27387-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27387-20130 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04033 | ||||
| 90068-0C020 | ||||
| 90099-05171 | ||||
| 90178-W0019 | ||||
(0811- )1KRFE..FRP..LHD
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q070 |
1KRFE..KSP90..FRP..LHD 12V 100A,COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q060 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q030 |
1KRFE..KSP90..FRP 12V 80A |
1 | ||
| 27060-0Q070 |
1KRFE..KSP90..FRP..LHD 12V 100A,COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27060-0Q040 |
1KRFE..KSP90..FRP 12V 90A,ALTERNATOR-LIP2+(90A) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 90105-10075 |
1KRFE..KSP90..FRP |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Q030 |
1KRFE,1NDTV..KSP90,NLP90..FRP |
1 | ||
| 27039-26170 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27039-26170 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27039-31390 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27039-31390 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Q030 |
1KRFE..KSP90..FRP |
1 | ||
| 27310-40100 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27310-40100 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27310-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 90068-10029 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27312-72100 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27330-30070 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD..(5F,5FS,6FS) COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27330-0M040 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-40110 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27360-0Q060 |
1KRFE..KSP90..FRP |
1 | ||
| 27360-40110 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27370-31220 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27384 - WASHER | ||||
| 27384-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27384-50030 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27384-50030 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27387-0C020 |
1KRFE,1NRFE..KSP90,NSP90..FRP |
1 | ||
| 27387-20130 |
1KRFE,1NRFE..KSP90,NSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W031 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| 27415-0W031 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH OUT(REAR HEATER DUCT) |
1 | ||
| 27416-0W020 |
1KRFE..KSP90..FRP..LHD COLD SPEC, WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90178-W0019 | ||||
