KSP90L-CHMGKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )KSP90..FRP

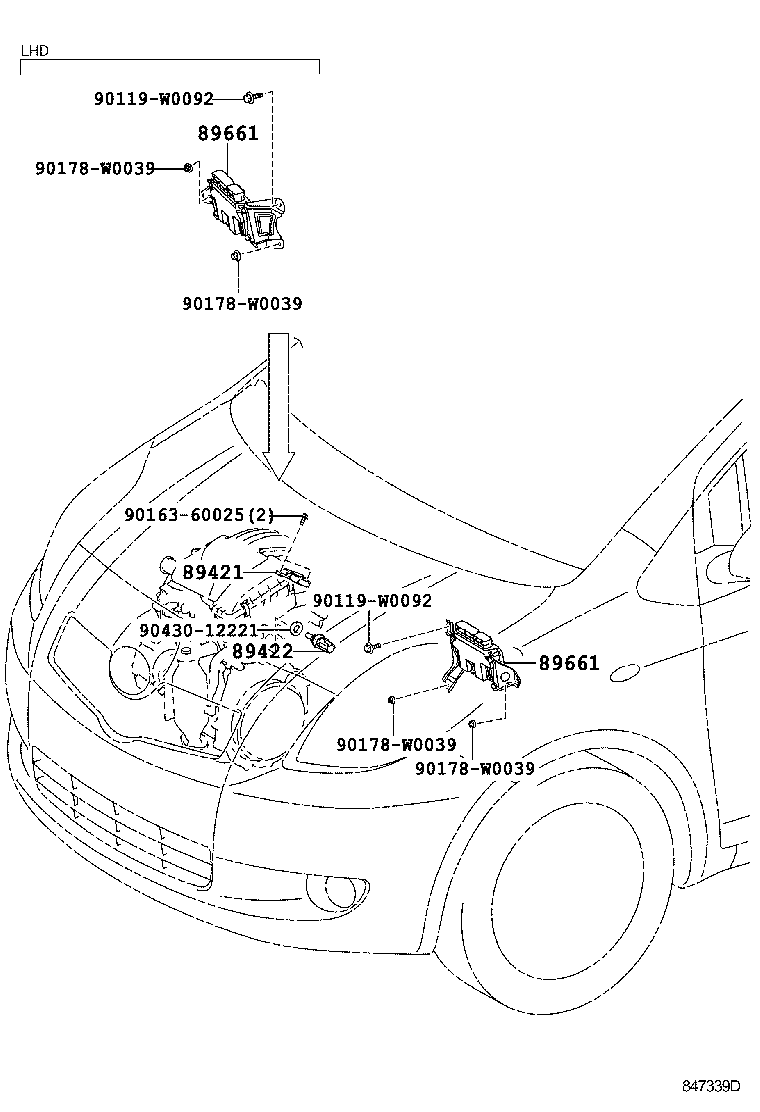

Click highlighted areas on diagram

diagram 89421 89422 89661 89661 90119W0092 90119W0092 9016360025 90178W0039 90178W0039 90178W0039 90178W0039 9043012221
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-52010

KSP90..FRP

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0H010

KSP90,SCP90..FRP

 1
89661 - COMPUTER, ENGINE CONTROL
89660-0D390

KSP90..FRP..LHD..5F

 1
89660-0D430

KSP90..FRP..LHD..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
89661 - COMPUTER, ENGINE CONTROL
89660-0D390

KSP90..FRP..LHD..5F

 1
89660-0D430

KSP90..FRP..LHD..5F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(OBD)

 1
Common parts
90119-W0092
90163-60025
90178-W0039
90430-12221
