KSP90L-CHMGKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0511- )FRP..LHD

Click highlighted areas on diagram

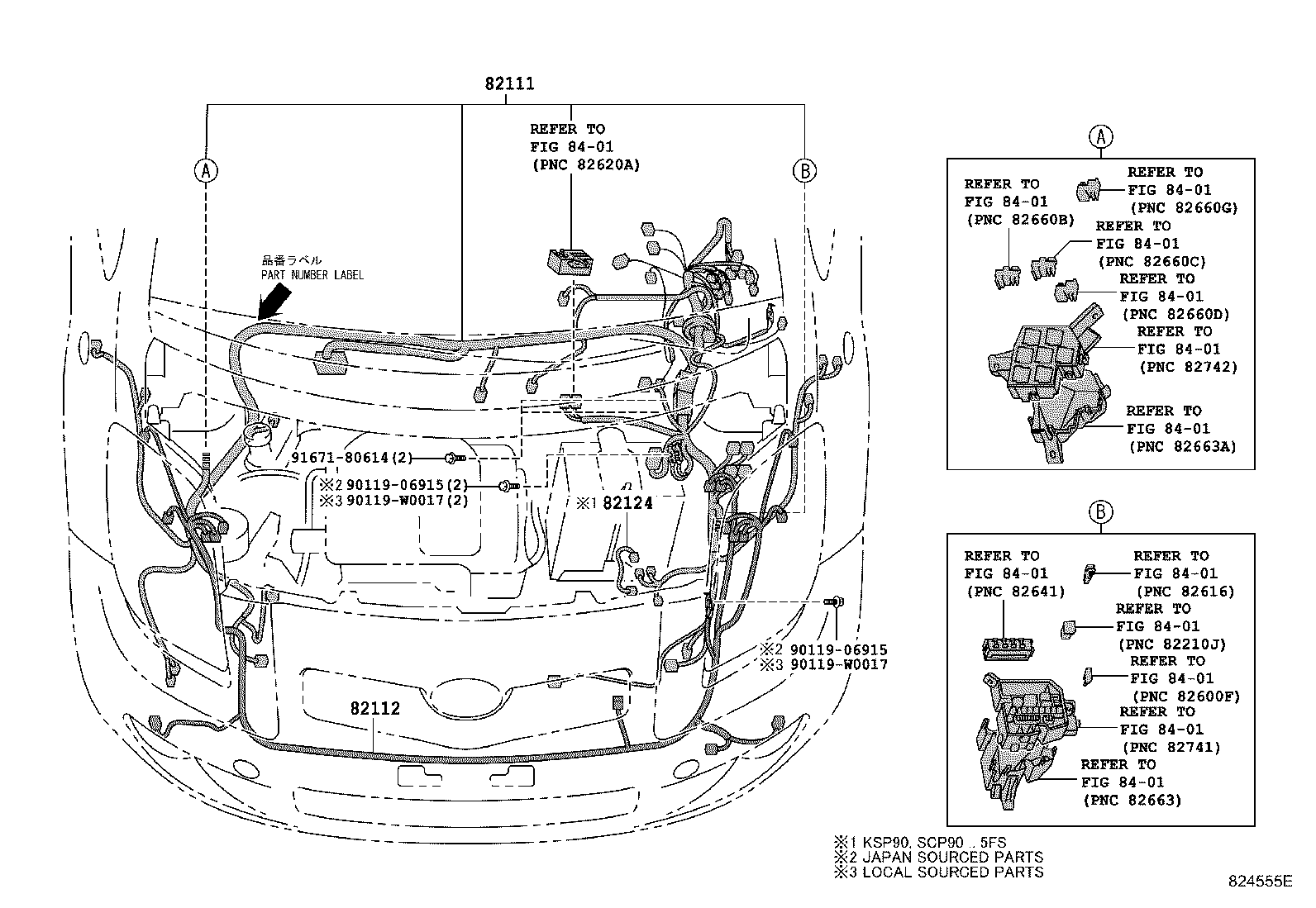

ENGINE ROOM

diagram 82111 82112 82124 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 90119W0017 90119W0017 9167180614
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-0DA10

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

 1
82111-0DA00

KSP90..FRP..LHD..5F..SOL

FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

VEHICLE STABILITY CONT-WITH&FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

VEHICLE STABILITY CONT-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA10

KSP90..FRP..LHD..5F..SOL

FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA70

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA70

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA70

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA70

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&DAYTIME RUNNING LIGHT SYSTEM-WITH&FRONT AIR CONDITIONER-W/O

 1
82111-0DA70

KSP90..FRP..LHD..5F

COLD SPEC, WITH(REAR HEATER DUCT)&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-0D040

KSP90,NLP90,SCP90..FRP..LHD

FRONT FOG LAMP-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82112-0D030

KSP90,NLP90,SCP90..FRP..LHD

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82112-0D020

KSP90,NLP90,SCP90..FRP

FRONT FOG LAMP-WITH

 1
82112-0D010

KSP90,NLP90,SCP90..FRP

 1
Common parts
90119-06915
90119-W0017
91671-80614
Linked diagrams
8401

ILLUST NO. 2 OF 7(0511- )KSP90..FRP..LHD

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82823T 90105W0158 90119W0059 90178W0024 90178W0031
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0D140

KSP90..FRP..LHD..5F

 1
82123 - WIRE, ENGINE, NO.3
82123-0D160

KSP90,SCP90..FRP

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

KSP90,NLP90,SCP90..FRP

 1
Common parts
90105-W0158
90119-W0059
90178-W0024
90178-W0031

ILLUST NO. 4 OF 7(0511- )FRP

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153A 82154A 82184 82185 82186 90119W0066 90119W0066 9098011300
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-0D390

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

 1
82151-0D410

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82151-0D410

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

 1
82151-0D400

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82152 - WIRE, FRONT DOOR, LH
82152-0D400

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

 1
82152-0D420

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82152-0D410

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82152-0D420

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

 1
82153A - WIRE, REAR DOOR, RH
82153-0D140

KSP90,NLP90,SCP90..FRP..5D..SOL

 1
82153-0D100

KSP90..FRP..5D..SOL

AUDIO-RADIOLESS 4SPEAKER

 1
82154A - WIRE, REAR DOOR, LH
82153-0D140

KSP90,NLP90,SCP90..FRP..5D..SOL

 1
82153-0D100

KSP90..FRP..5D..SOL

AUDIO-RADIOLESS 4SPEAKER

 1
82184 - WIRE, BACK DOOR, NO.1
82184-0D040

KSP90,NLP90,SCP90..FRP..LHD

 1
82184-0D050

KSP90,NLP90,SCP90..FRP..LHD..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

 1
82185 - WIRE, BACK DOOR, NO.2
82185-0D090

KSP90,NLP90,SCP90..FRP

 1
82185-0D100

KSP90,NLP90,SCP90..FRP..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D030

KSP90,NLP90,SCP90..FRP

 1
Common parts
90119-W0066
90980-11300

ILLUST NO. 5 OF 7(0511- )FRP

Click highlighted areas on diagram

FLOOR & ROOF

diagram 8121 82161 82171 82345A 82817A 82824 90119W0066 90119W0066
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-0D620

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

 1
82161-0D640

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

 1
82161-0DA20

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

 1
82161-0D630

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE)

 1
82161-0D640

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

PART NUMBER LABEL=82161-0D640

 1
82161-0DA20

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

PART NUMBER LABEL=82161-0DA20

 1
82161-0D630

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

PART NUMBER LABEL=82161-0D630

 1
82161-0D620

KSP90,NLP90,SCP90..FRP..LHD..5D..SOL

PART NUMBER LABEL=82161-0D620

 1
82171 - WIRE, ROOF, NO.1
82171-0D030

KSP90,NLP90,SCP90..FRP

 1
82171-0D030

KSP90,NLP90,SCP90..FRP

PART NUMBER LABEL=82171-0D030

 1
82345A - DIODE
82345-32010

KSP90,NLP90,SCP90..FRP

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

KSP90,NLP90,SCP90..FRP

 1
82824 - CONNECTOR, WIRING HARNESS
82824-44030

KSP90,NLP90,SCP90..FRP

 1
Common parts
90119-W0066
Linked diagrams
8121

ILLUST NO. 6 OF 7(0511- )FRP

Click highlighted areas on diagram

CLAMP & BRACKET 1/2

diagram 827150D570 827150D670 827150D730 827150D740 8271512N30 8271552A70 8271552D30 8271552G50 8271552G60 8271552G70 8271552G80 8271552J00 8271552J10 8271552J20 8271552J80 8271552Q10 8271552R40 8271552S90 90119W0018 90119W0018 90119W0018 90119W0018 90119W0018 90119W0115 90119W0115 90119W0115 90119W0115 9167180610 9167180610 9167180610 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816
Part # Description Qty Price
Common parts
82715-0D570
82715-0D670
82715-0D730
82715-0D740
82715-12N30
82715-52A70
82715-52D30
82715-52G50
82715-52G60
82715-52G70
82715-52G80
82715-52J00
82715-52J10
82715-52J20
82715-52J80
82715-52Q10
82715-52R40
82715-52S90
90119-W0018
90119-W0115
91671-80610
91671-80816

ILLUST NO. 6 OF 7(0511-0811)FRP ; (0811- )KSP90..FRP

Click highlighted areas on diagram

CLAMP & BRACKET 2/2

diagram 8271502300 8271502390 827150H230 8271552050 8271552090 8271552210 8271552220 8271552230 8271552560 8271552B70 8271552B80 8271552B90 8271552C00 8271552C20 8271552D10 8271552D20 8271552E50 8271552E80 8271552E90 8271552F00 8271552F10 8271552F20 8271552F30 8271552F60 8271552J70 8271552K30 8271552K80 8271552K90 827155C210 9011908429 90119W0018 90119W0018 90119W0018 90119W0018 90119W0018 90119W0019 90119W0019 90119W0019 90119W0019 90119W0019 90119W0019 90119W0019 90119W0019 90119W0019 90119W0190 9167180610 9167180610 9167180610 9167180610 9167180610 9167180614 9167180614 9167180614 9167180614 9167180812 9167180816 9167180816 9167180816 9167180816
Part # Description Qty Price
Common parts
82715-02300
82715-02390
82715-0H230
82715-52050
82715-52090
82715-52210
82715-52220
82715-52230
82715-52560
82715-52B70
82715-52B80
82715-52B90
82715-52C00
82715-52C20
82715-52D10
82715-52D20
82715-52E50
82715-52E80
82715-52E90
82715-52F00
82715-52F10
82715-52F20
82715-52F30
82715-52F60
82715-52J70
82715-52K30
82715-52K80
82715-52K90
82715-5C210
90119-08429
90119-W0018
90119-W0019
90119-W0190
91671-80610
91671-80614
91671-80812
91671-80816

ILLUST NO. 3 OF 7(0511- )FRP..LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82345 82666A 82666A 82666B 82824D 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 90119W0017 90119W0017 90119W0017 9015970004
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-0DL40

KSP90,NLP90,SCP90..FRP..LHD..5F

DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82141-0DL60

KSP90,SCP90..FRP..LHD..5F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82141-0DL70

KSP90,SCP90..FRP..LHD..5F..SOL

VEHICLE STABILITY CONT-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82141-0DL50

KSP90,NLP90,SCP90..FRP..LHD..5F

VEHICLE STABILITY CONT-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
82141-0DK60

KSP90,NLP90,SCP90..FRP..LHD..5F

 1
82141-0DK70

KSP90,NLP90,SCP90..FRP..LHD..5F

VEHICLE STABILITY CONT-WITH

 1
82141-0DK90

KSP90..FRP..LHD..5F..SOL

VEHICLE STABILITY CONT-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&FRONT AIR CONDITIONER-AUTO

 1
82141-0DK80

KSP90..FRP..LHD..5F..SOL

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&FRONT AIR CONDITIONER-AUTO

 1
82141-0DL40

KSP90..FRP..LHD..5F

COLD SPEC, WITH(REAR HEATER DUCT)&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REARVIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82141-0DL60

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR&FRONT AIR CONDITIONER-AUTO

 1
82141-0DL70

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR&FRONT AIR CONDITIONER-AUTO

 1
82141-0DL50

KSP90..FRP..LHD..5F

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR

 1
82141-0DL70

KSP90,SCP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DL70 OR 82141-0DA80

 1
82141-0DL40

KSP90,NLP90,SCP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DL40 OR 82141-0DA50

 1
82141-0DL60

KSP90,SCP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DL60 OR 82141-0DA70

 1
82141-0DL50

KSP90,NLP90,SCP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DL50 OR 82141-0DA60

 1
82141-0DK60

KSP90,NLP90,SCP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DK60 OR 82141-0D870

 1
82141-0DK90

KSP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DK90 OR 82141-0DA00

 1
82141-0DK70

KSP90,NLP90,SCP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DK70 OR 82141-0D880

 1
82141-0DL40

KSP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DL40 OR 82141-0DA50

 1
82141-0DL50

KSP90..FRP..LHD..5F

PART NUMBER LABEL=82141-0DL50 OR 82141-0DA60

 1
82141-0DK80

KSP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DK80 OR 82141-0D890

 1
82141-0DL60

KSP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DL60 OR 82141-0DA70

 1
82141-0DL70

KSP90..FRP..LHD..5F..SOL

PART NUMBER LABEL=82141-0DL70 OR 82141-0DA80

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-0D050

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82142-0D060

KSP90..FRP..LHD..SOL;NLP90,SCP90..FRP..LHD;KSP90..FRP..5FS..TRSTD

 1
82142-0D050

KSP90,SCP90..FRP..LHD..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O

 1
82142-0D050

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT FOG LAMP-WITH&FRONT AIR CONDITIONER-W/O

 1
82142-0D050

KSP90..FRP..LHD..5F..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&VEHICLE STABILITY CONT-WITH&FRONT AIR CONDITIONER-W/O

 1
82142-0D040

KSP90..FRP..LHD..5F..SOL

FRONT AIR CONDITIONER-W/O

 1
82142-0D070

KSP90,SCP90..FRP..LHD..SOL

COLD SPEC, WITH(REAR HEATER DUCT)

 1
82142-0D080

KSP90,NLP90,SCP90..FRP..LHD..SOL

FRONT AIR CONDITIONER-AUTO

 1
82142-0D090

KSP90,SCP90..FRP..LHD..SOL

COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO

 1
82345 - DIODE
82345-32010

KSP90,NLP90,SCP90..FRP

 1
82666A - HOLDER, CONNECTOR NO.2
82666-52080

KSP90,NLP90,SCP90..FRP

 2
82666A - HOLDER, CONNECTOR NO.2
82666-52080

KSP90,NLP90,SCP90..FRP

 2
82666B - HOLDER, CONNECTOR NO.3
82666-52090

KSP90,NLP90,SCP90..FRP..LHD

 1
Common parts
90119-06915
90119-W0017
90159-70004
Linked diagrams
8401

ILLUST NO. 7 OF 7(0511- )FRP

Click highlighted areas on diagram

CONNECTOR

diagram 8282452050 8282452130 8282460460 9008098001 9008098028 9008098298 9098010619 9098010860 9098010942 9098010957 9098011016 9098011019 9098011148 9098011148 9098011162 9098011162 9098011314 9098011967
Part # Description Qty Price
Common parts
82824-52050
82824-52130
82824-60460
90080-98001
90080-98028
90080-98298
90980-10619
90980-10860
90980-10942
90980-10957
90980-11016
90980-11019
90980-11148
90980-11162
90980-11314
90980-11967
