KSP90L-CHGRKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP

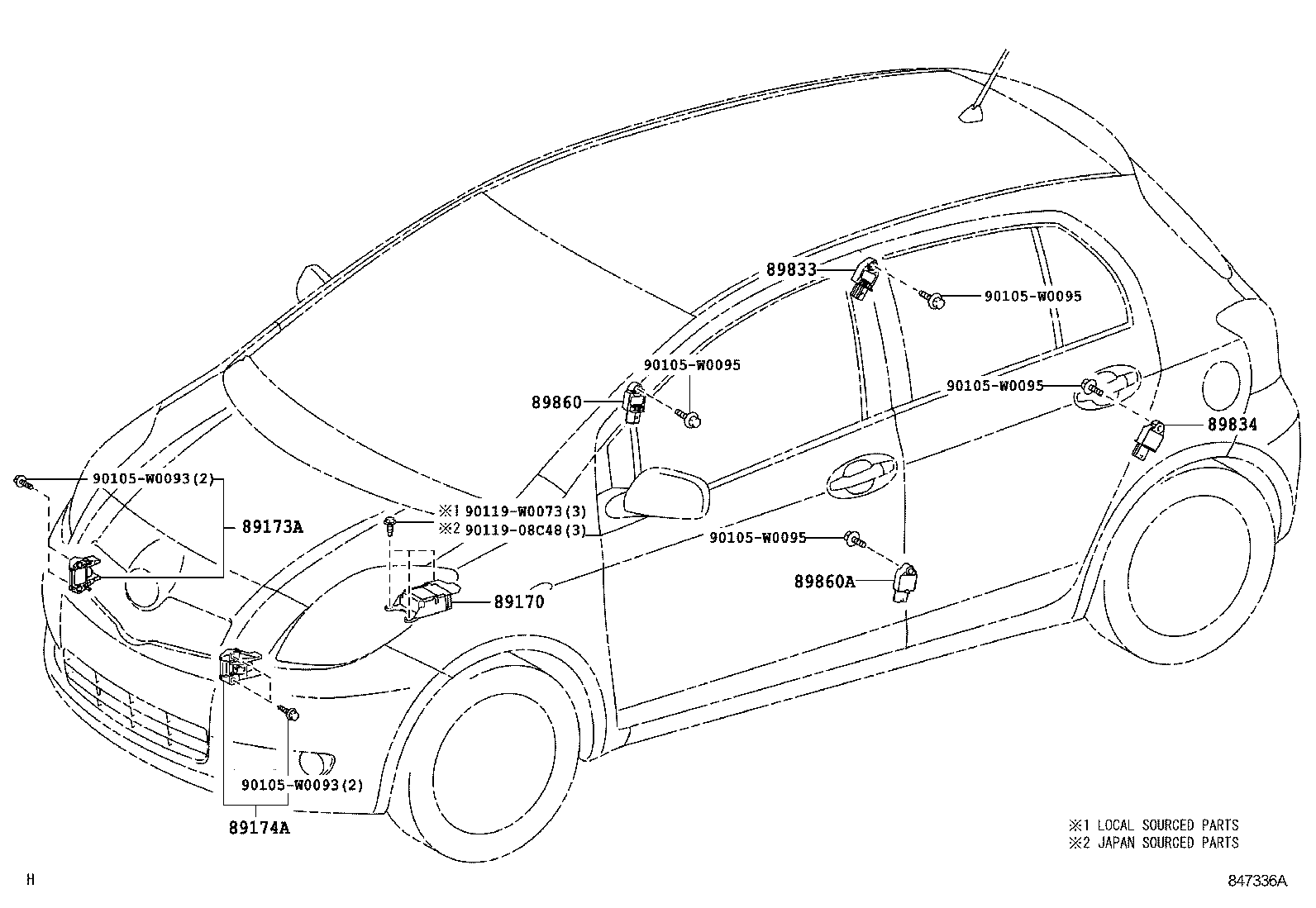

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89860 89860A 90105W0093 90105W0093 90105W0095 90105W0095 90105W0095 90105W0095 9011908C48 90119W0073
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0D250

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

 1
89170-0D210

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

 1
89170-0D180

KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE)

 1
89170-0D210

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,(L)

 1
89170-0D250

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

(L)

 1
89170-0D180

KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),(L)

 1
89170-52620

KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE),(J)

 1
89170-52730

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,(J)

 1
89170-52A50

KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD

(J)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09380

KSP90,NLP90,SCP90..FRP

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09380

KSP90,NLP90,SCP90..FRP

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-0D010

KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-0D010

KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0H010

KSP90,NLP90,SCP90..FRP

 1
89831-0H010

KSP90,SCP90..FRP..5D..SOL;KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE)

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0H010

KSP90,SCP90..FRP..5D..SOL;KSP90,NLP90,SCP90..FRP..TRSTD

SRS AIR BAG-*DPP(WITHOUT/SIDE & CURTAIN & KNEE)

 1
89831-0H010

KSP90,NLP90,SCP90..FRP

 1
Common parts
90105-W0093
90105-W0095
90119-08C48
90119-W0073
