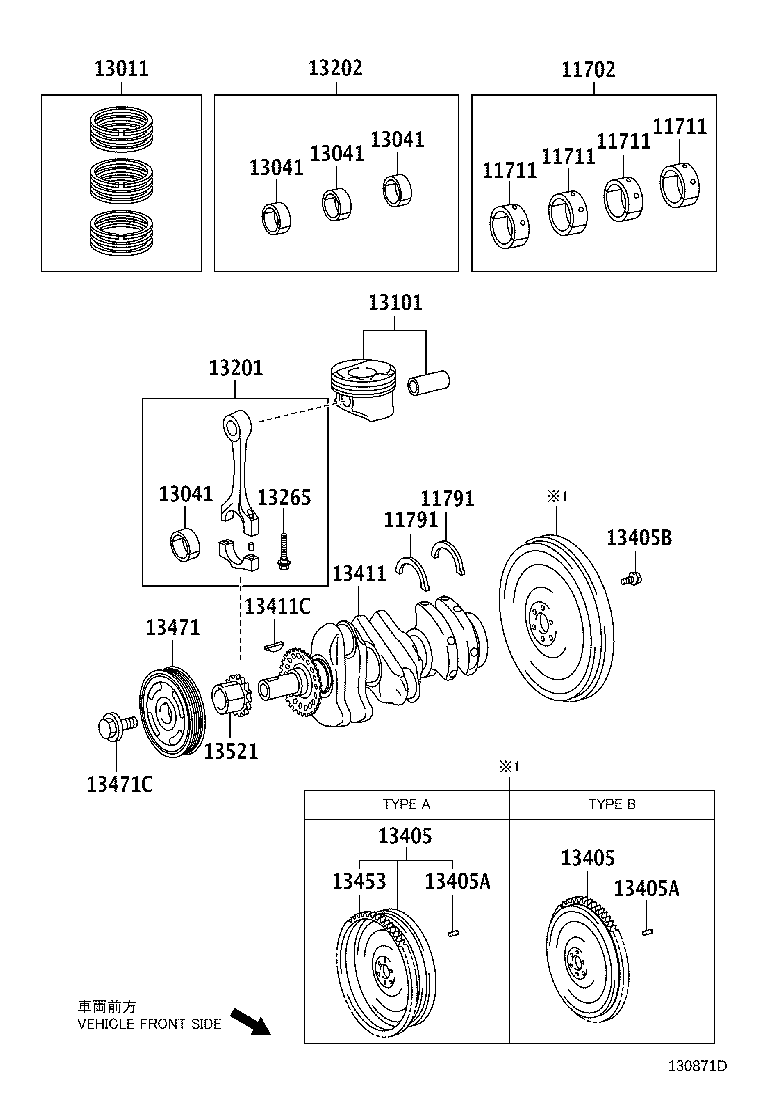

KSP90L-CHGRKW (2005)
Toyota Yaris (Frp)
(0511- )1KRFE..FRP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-40040 |
1KRFE..KSP90..FRP U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q01005 |
1KRFE..KSP90..FRP MARK5,(L):REFER R/M |
4 | ||
| 11701-0Q01002 |
1KRFE..KSP90..FRP MARK2,(L):REFER R/M |
4 | ||
| 11701-4004003 |
1KRFE..KSP90..FRP MARK3,(J):REFER R/M |
4 | ||
| 11701-4004004 |
1KRFE..KSP90..FRP MARK4,(J):REFER R/M |
4 | ||
| 11701-0Q01004 |
1KRFE..KSP90..FRP MARK4,(L):REFER R/M |
4 | ||
| 11701-4004005 |
1KRFE..KSP90..FRP MARK5,(J):REFER R/M |
4 | ||
| 11701-0Q01003 |
1KRFE..KSP90..FRP MARK3,(L):REFER R/M |
4 | ||
| 11701-4004002 |
1KRFE..KSP90..FRP MARK2,(J):REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q01005 |
1KRFE..KSP90..FRP MARK5,(L):REFER R/M |
4 | ||
| 11701-0Q01002 |
1KRFE..KSP90..FRP MARK2,(L):REFER R/M |
4 | ||
| 11701-4004003 |
1KRFE..KSP90..FRP MARK3,(J):REFER R/M |
4 | ||
| 11701-4004004 |
1KRFE..KSP90..FRP MARK4,(J):REFER R/M |
4 | ||
| 11701-0Q01004 |
1KRFE..KSP90..FRP MARK4,(L):REFER R/M |
4 | ||
| 11701-4004005 |
1KRFE..KSP90..FRP MARK5,(J):REFER R/M |
4 | ||
| 11701-0Q01003 |
1KRFE..KSP90..FRP MARK3,(L):REFER R/M |
4 | ||
| 11701-4004002 |
1KRFE..KSP90..FRP MARK2,(J):REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q01005 |
1KRFE..KSP90..FRP MARK5,(L):REFER R/M |
4 | ||
| 11701-0Q01002 |
1KRFE..KSP90..FRP MARK2,(L):REFER R/M |
4 | ||
| 11701-4004003 |
1KRFE..KSP90..FRP MARK3,(J):REFER R/M |
4 | ||
| 11701-4004004 |
1KRFE..KSP90..FRP MARK4,(J):REFER R/M |
4 | ||
| 11701-0Q01004 |
1KRFE..KSP90..FRP MARK4,(L):REFER R/M |
4 | ||
| 11701-4004005 |
1KRFE..KSP90..FRP MARK5,(J):REFER R/M |
4 | ||
| 11701-0Q01003 |
1KRFE..KSP90..FRP MARK3,(L):REFER R/M |
4 | ||
| 11701-4004002 |
1KRFE..KSP90..FRP MARK2,(J):REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Q01005 |
1KRFE..KSP90..FRP MARK5,(L):REFER R/M |
4 | ||
| 11701-0Q01002 |
1KRFE..KSP90..FRP MARK2,(L):REFER R/M |
4 | ||
| 11701-4004003 |
1KRFE..KSP90..FRP MARK3,(J):REFER R/M |
4 | ||
| 11701-4004004 |
1KRFE..KSP90..FRP MARK4,(J):REFER R/M |
4 | ||
| 11701-0Q01004 |
1KRFE..KSP90..FRP MARK4,(L):REFER R/M |
4 | ||
| 11701-4004005 |
1KRFE..KSP90..FRP MARK5,(J):REFER R/M |
4 | ||
| 11701-0Q01003 |
1KRFE..KSP90..FRP MARK3,(L):REFER R/M |
4 | ||
| 11701-4004002 |
1KRFE..KSP90..FRP MARK2,(J):REFER R/M |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q010 |
1KRFE..KSP90..FRP STD,(L) |
2 | ||
| 11791-40020 |
1KRFE..KSP90..FRP STD,(J) |
2 | ||
| 11792-40020 |
1KRFE..KSP90..FRP O/S 0.125 |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-0Q010 |
1KRFE..KSP90..FRP STD,(L) |
2 | ||
| 11791-40020 |
1KRFE..KSP90..FRP STD,(J) |
2 | ||
| 11792-40020 |
1KRFE..KSP90..FRP O/S 0.125 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0Q010 |
1KRFE..KSP90..FRP STD,(L) |
1 | ||
| 13011-40030 |
1KRFE..KSP90..FRP STD,(J) |
1 | ||
| 13011-40050 |
1KRFE..KSP90..FRP STD,(J) |
1 | ||
| 13011-0Q030 |
1KRFE..KSP90..FRP STD,(L) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003001 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-0Q01001 |
1KRFE..KSP90..FRP MARK1,*138,(L):REFER R/M |
3 | ||
| 13041-4003002 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-0Q01002 |
1KRFE..KSP90..FRP MARK2,*138,(L):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*138,(J):REFER R/M |
3 | ||
| 13041-4003003 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041-0Q01003 |
1KRFE..KSP90..FRP MARK3,*138,(L):REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*138,(J):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*138,(J):REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003001 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-0Q01001 |
1KRFE..KSP90..FRP MARK1,*138,(L):REFER R/M |
3 | ||
| 13041-4003002 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-0Q01002 |
1KRFE..KSP90..FRP MARK2,*138,(L):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*138,(J):REFER R/M |
3 | ||
| 13041-4003003 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041-0Q01003 |
1KRFE..KSP90..FRP MARK3,*138,(L):REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*138,(J):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*138,(J):REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003001 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-0Q01001 |
1KRFE..KSP90..FRP MARK1,*138,(L):REFER R/M |
3 | ||
| 13041-4003002 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-0Q01002 |
1KRFE..KSP90..FRP MARK2,*138,(L):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*138,(J):REFER R/M |
3 | ||
| 13041-4003003 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041-0Q01003 |
1KRFE..KSP90..FRP MARK3,*138,(L):REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*138,(J):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*138,(J):REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4003001 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-0Q01001 |
1KRFE..KSP90..FRP MARK1,*138,(L):REFER R/M |
3 | ||
| 13041-4003002 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-0Q01002 |
1KRFE..KSP90..FRP MARK2,*138,(L):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*138,(J):REFER R/M |
3 | ||
| 13041-4003003 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13041-0Q01003 |
1KRFE..KSP90..FRP MARK3,*138,(L):REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*138,(J):REFER R/M |
3 | ||
| 13041-4003101 |
1KRFE..KSP90..FRP MARK1,*132:REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*138,(J):REFER R/M |
3 | ||
| 13041-4003102 |
1KRFE..KSP90..FRP MARK2,*132:REFER R/M |
3 | ||
| 13041-4003103 |
1KRFE..KSP90..FRP MARK3,*132:REFER R/M |
3 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-40021 |
1KRFE..KSP90..FRP STD |
3 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09296 |
1KRFE..KSP90..FRP |
3 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-40031 |
1KRFE..KSP90..FRP U/S 0.25 |
1 | ||
| 13204-40030 |
1KRFE..KSP90..FRP U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-21020 |
1KRFE..KSP90..FRP |
6 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-40070 |
1KRFE..KSP90..FRP TYPE A |
1 | ||
| 13405-0Q010 |
1KRFE..KSP90..FRP TYPE B |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-40070 |
1KRFE..KSP90..FRP TYPE A |
1 | ||
| 13405-0Q010 |
1KRFE..KSP90..FRP TYPE B |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1KRFE..KSP90..FRP L=18,OD=8 |
3 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1KRFE..KSP90..FRP L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10463 |
1KRFE..KSP90..FRP |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-40030 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 13401-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90280-04001 |
1KRFE..KSP90..FRP |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-23020 |
1KRFE..KSP90..FRP |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-40010 |
1KRFE..KSP90..FRP (J) |
1 | ||
| 13470-0Q010 |
1KRFE..KSP90..FRP (L) |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1KRFE..KSP90..FRP |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-40020 |
1KRFE..KSP90..FRP |
1 | ||
