KSP90L-CHGGKW (2005)
Toyota Yaris (Frp)
(0511- )FRP
RH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051 - PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, RH | ||||
| 71051-0D010 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-0D151B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71010-0D171B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71010-0D151B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71010-0D171B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71010-0D172B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71010-0D152B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71010-0D152B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71010-0D172B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71010-0D153B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71010-0D173B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71010-0D173B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71010-0D172B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71010-0D153B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71010-0D152B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71010-0D172B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71010-0D152B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71010-0D173B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71010-0D173B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-0D220C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71518-0D160B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL GRAY,TRIM19 |
1 | ||
| 71518-0D220B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71518-0D221B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71518-0D160C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL BLACK,TRIM18 |
1 | ||
| 71518-0D221C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-0D391B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71558-0D311C0 |
KSP90,NLP90,SCP90..FRP..5D..SOL BLACK,TRIM18 |
1 | ||
| 71558-0D391C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558-0D392C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558-0D392B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71558-0D311B0 |
KSP90,NLP90,SCP90..FRP..5D..SOL GRAY,TRIM19 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D070B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D071B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71811-0D070B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71811-0D070B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D040B1 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D290B0 |
KSP90,NLP90,SCP90..FRP..SOL GRAY,TRIM19 |
1 | ||
| 71910-0D290C0 |
KSP90,NLP90,SCP90..FRP..SOL BLACK,TRIM18 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0D370 |
KSP90,NLP90,SCP90..FRP..LHD..5D |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D060B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-0D010B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0D020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 72702-0D010 | ||||
| 90119-W0160 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

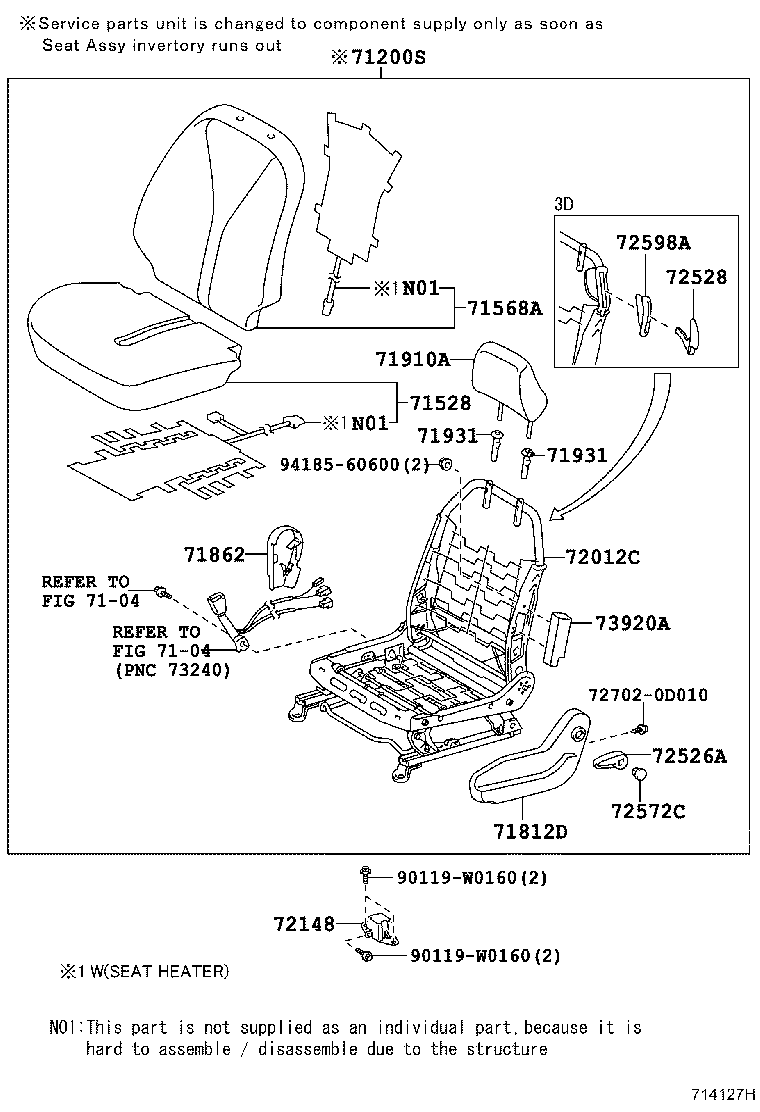

(0511- )FRP..LHD
LH-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-0D281B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D301B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D281B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D302B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D301B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D283B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D303B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D283B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D282B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D250B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D170C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL BLACK,TRIM18 |
1 | ||
| 71528-0D170B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL GRAY,TRIM19 |
1 | ||
| 71528-0D250C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71528-0D251B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D251C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D451C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D371B0 |
KSP90,NLP90,SCP90..FRP..5D..SOL GRAY,TRIM19 |
1 | ||
| 71568-0D451B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71568-0D371C0 |
KSP90,NLP90,SCP90..FRP..5D..SOL BLACK,TRIM18 |
1 | ||
| 71568-0D452C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D452B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D062B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D040B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D290B0 |
KSP90,NLP90,SCP90..FRP..SOL GRAY,TRIM19 |
1 | ||
| 71910-0D290C0 |
KSP90,NLP90,SCP90..FRP..SOL BLACK,TRIM18 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D350 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D030B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-0D010B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 72702-0D010 | ||||
| 90119-W0160 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0511- )FRP..LHD
LH-W(VERTICAL SEAT ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-0D281B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D301B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D281B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D302B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D301B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D283B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D303B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D283B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71020-0D302B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D282B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL DK.GRAY,TRIM18 |
1 | ||
| 71020-0D282B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B1 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,MD.GRAY,TRIM19 |
1 | ||
| 71020-0D303B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,DK.GRAY,TRIM18 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D250B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D170C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL BLACK,TRIM18 |
1 | ||
| 71528-0D170B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL GRAY,TRIM19 |
1 | ||
| 71528-0D250C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71528-0D251B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D251C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D451C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D371B0 |
KSP90,NLP90,SCP90..FRP..5D..SOL GRAY,TRIM19 |
1 | ||
| 71568-0D451B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71568-0D371C0 |
KSP90,NLP90,SCP90..FRP..5D..SOL BLACK,TRIM18 |
1 | ||
| 71568-0D452C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D452B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D062B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D040B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0D020B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-0D020B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D290B0 |
KSP90,NLP90,SCP90..FRP..SOL GRAY,TRIM19 |
1 | ||
| 71910-0D290C0 |
KSP90,NLP90,SCP90..FRP..SOL BLACK,TRIM18 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D350 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-0D021B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D030B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-0D010B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| Common parts | ||||
| 72702-0D010 | ||||
| 72702-0D040 | ||||
| 90119-W0160 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0511- )FRP
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051 - PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, RH | ||||
| 71051-0D010 |
KSP90,NLP90,SCP90..FRP..LHD |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-0D220C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71518-0D160B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL GRAY,TRIM19 |
1 | ||
| 71518-0D220B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71518-0D221B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71518-0D160C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL BLACK,TRIM18 |
1 | ||
| 71518-0D221C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-0D391B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71558-0D311C0 |
KSP90,NLP90,SCP90..FRP..5D..SOL BLACK,TRIM18 |
1 | ||
| 71558-0D391C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558-0D392C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71558-0D392B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71558-0D311B0 |
KSP90,NLP90,SCP90..FRP..5D..SOL GRAY,TRIM19 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-0D070B0 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D071B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71811-0D070B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71811-0D070B2 |
KSP90,NLP90,SCP90..FRP..TRSTD;KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D040B1 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D290B0 |
KSP90,NLP90,SCP90..FRP..SOL GRAY,TRIM19 |
1 | ||
| 71910-0D290C0 |
KSP90,NLP90,SCP90..FRP..SOL BLACK,TRIM18 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-0D370 |
KSP90,NLP90,SCP90..FRP..LHD..5D |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52020 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D060B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-0D010B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-0D010 | ||||
| 72702-52030 | ||||
| 90119-W0160 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0511- )FRP..LHD
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-0D250B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D170C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL BLACK,TRIM18 |
1 | ||
| 71528-0D170B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL GRAY,TRIM19 |
1 | ||
| 71528-0D250C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71528-0D251B0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71528-0D251C0 |
KSP90,NLP90,SCP90..FRP..LHD..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-0D451C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D371B0 |
KSP90,NLP90,SCP90..FRP..5D..SOL GRAY,TRIM19 |
1 | ||
| 71568-0D451B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71568-0D371C0 |
KSP90,NLP90,SCP90..FRP..5D..SOL BLACK,TRIM18 |
1 | ||
| 71568-0D452C0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,BLACK,TRIM18 |
1 | ||
| 71568-0D452B0 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL SEAT HEATER-DRIVER & PASSENGER,GRAY,TRIM19 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D062B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71812-0D061B2 |
KSP90,NLP90,SCP90..FRP..LHD..SOL DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D040B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0D290B0 |
KSP90,NLP90,SCP90..FRP..SOL GRAY,TRIM19 |
1 | ||
| 71910-0D290C0 |
KSP90,NLP90,SCP90..FRP..SOL BLACK,TRIM18 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B2 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),GRAY,TRIM19 |
1 | ||
| 71931-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W/O(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D010B1 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),DK.GRAY,TRIM18 |
1 | ||
| 71930-0D011B2 |
KSP90,NLP90,SCP90..FRP..SOL W(LOCK),GRAY,TRIM19 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-0D350 |
KSP90,NLP90,SCP90..FRP..LHD..5D..SOL |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52010 |
KSP90,NLP90,SCP90..FRP |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D030B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-0D010B2 |
KSP90,NLP90,SCP90..FRP DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-0D010 | ||||
| 72702-52030 | ||||
| 90119-W0160 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
