KSP90L-CHGGKW (2005)

Toyota Yaris (Frp)

Production Nov 2005 - Nov 2008
Engine 1KRFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )FRP

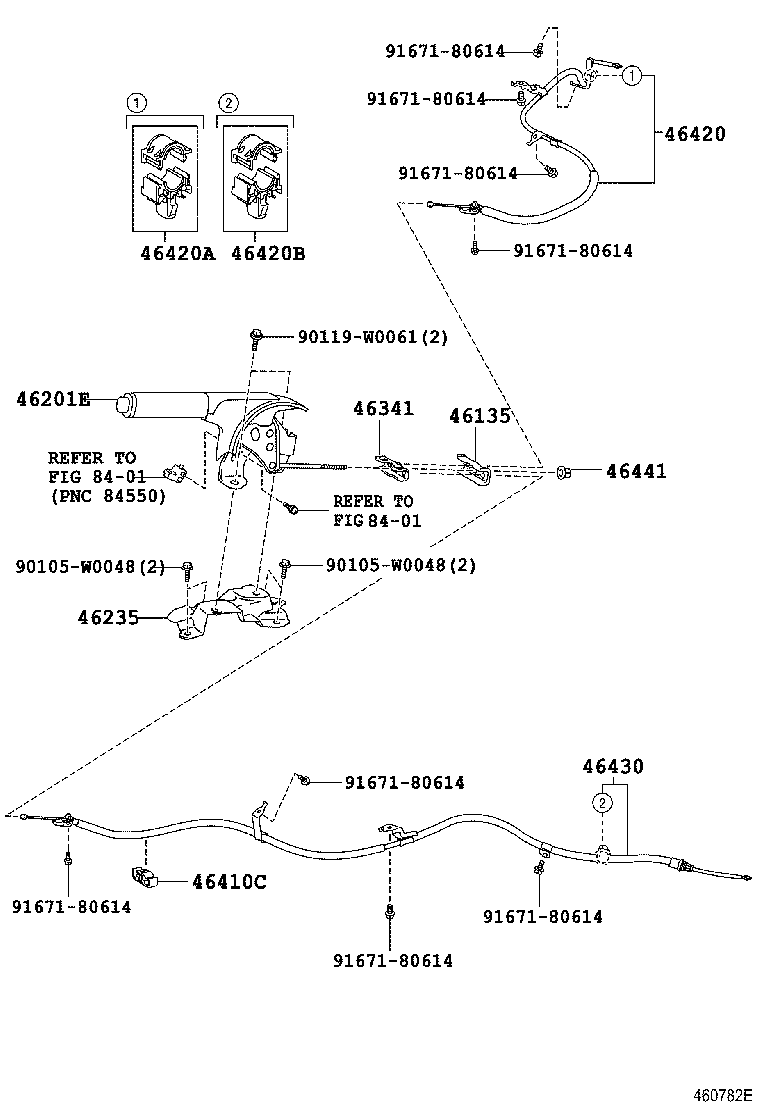

Click highlighted areas on diagram

diagram 46135 46201E 46235 46341 46410C 46420 46420A 46420B 46430 46441 8401 8401 90105W0048 90105W0048 90119W0061 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D010

KSP90,NLP90,SCP90..FRP

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D090B0

KSP90,NLP90,SCP90..FRP..SOL

PARKING BRAKE-W/O(PLATING KNOB),DK.GRAY,TRIM1#

 1
46201-0D100B0

KSP90,NLP90,SCP90..FRP..SOL

DK.GRAY,TRIM1#

 1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-0D010

KSP90,NLP90,SCP90..FRP

 1
46341 - EQUALIZER, PARKING BRAKE
46341-0D040

KSP90,NLP90,SCP90..FRP

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D010

KSP90,NLP90,SCP90..FRP

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D050

KSP90,NLP90,SCP90..FRP

 1
46420-0D060

KSP90,NLP90,SCP90..FRP

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-52030

KSP90,NLP90,SCP90..FRP

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
46402-52010

KSP90,NLP90,SCP90..FRP

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-52010

KSP90,NLP90,SCP90..FRP

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D050

KSP90,NLP90,SCP90..FRP

 1
46430-0D060

KSP90,NLP90,SCP90..FRP

REAR WHEEL BRAKE-DISK(BUILT-IN)

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-0D040

KSP90,NLP90,SCP90..FRP

 1
Common parts
90105-W0048
90119-W0061
91671-80614
Linked diagrams
8401
