NLP130R-CHFRXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130,NLP130,NSP130

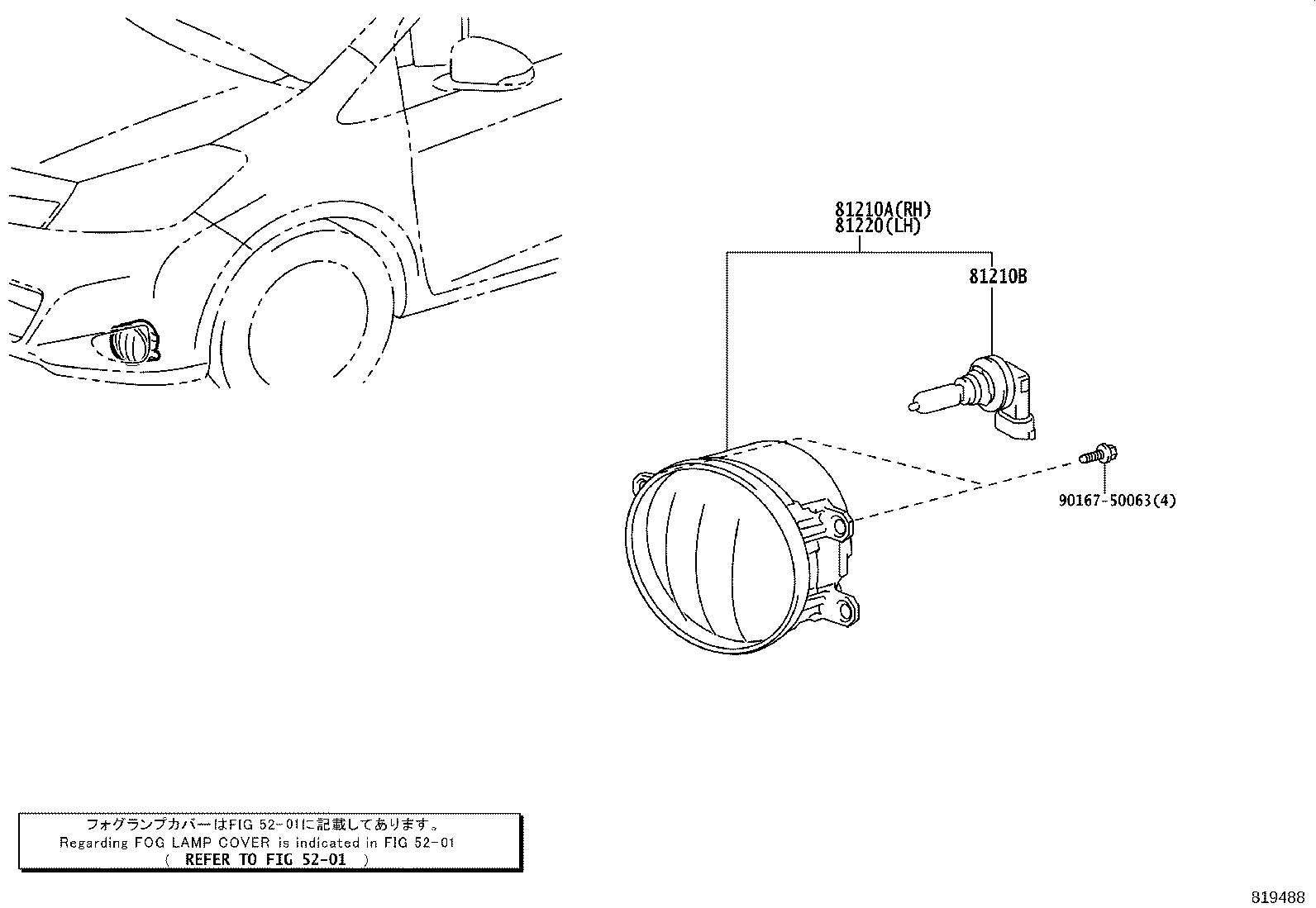

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02110

KSP130,NHP130,NLP130,NSP130..ACTIV,STD

FRONT FOG & DRIVING LAMP-WITH

 1
81210-02110

KSP130,NLP130,NSP130..5D..(ACTIV,STD)

FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

 1
81210-0D042

KSP130,NLP130,NSP130..ACTIV,STD

FRONT FOG & DRIVING LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13075

KSP130,NLP130,NSP130..ACTIV,STD

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,PHILIPS

 2
90981-WD016

KSP130,NLP130,NSP130..5D..(ACTIV,STD)

12V 19W,FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

 2
90981-13081

KSP130,NLP130,NSP130..ACTIV,STD

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,OSRAM

 2
90981-WD016

KSP130,NHP130,NLP130,NSP130..ACTIV,STD

12V 19W,FRONT FOG & DRIVING LAMP-WITH

 2
81220 - LAMP ASSY, FOG, LH
81220-0D042

KSP130,NLP130,NSP130..ACTIV,STD

FRONT FOG & DRIVING LAMP-WITH

 1
81220-02110

KSP130,NHP130,NLP130,NSP130..ACTIV,STD

FRONT FOG & DRIVING LAMP-WITH

 1
81220-02110

KSP130,NLP130,NSP130..5D..(ACTIV,STD)

FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

 1
Common parts
90167-50063
Linked diagrams
5201
