NLP130R-CHFRXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

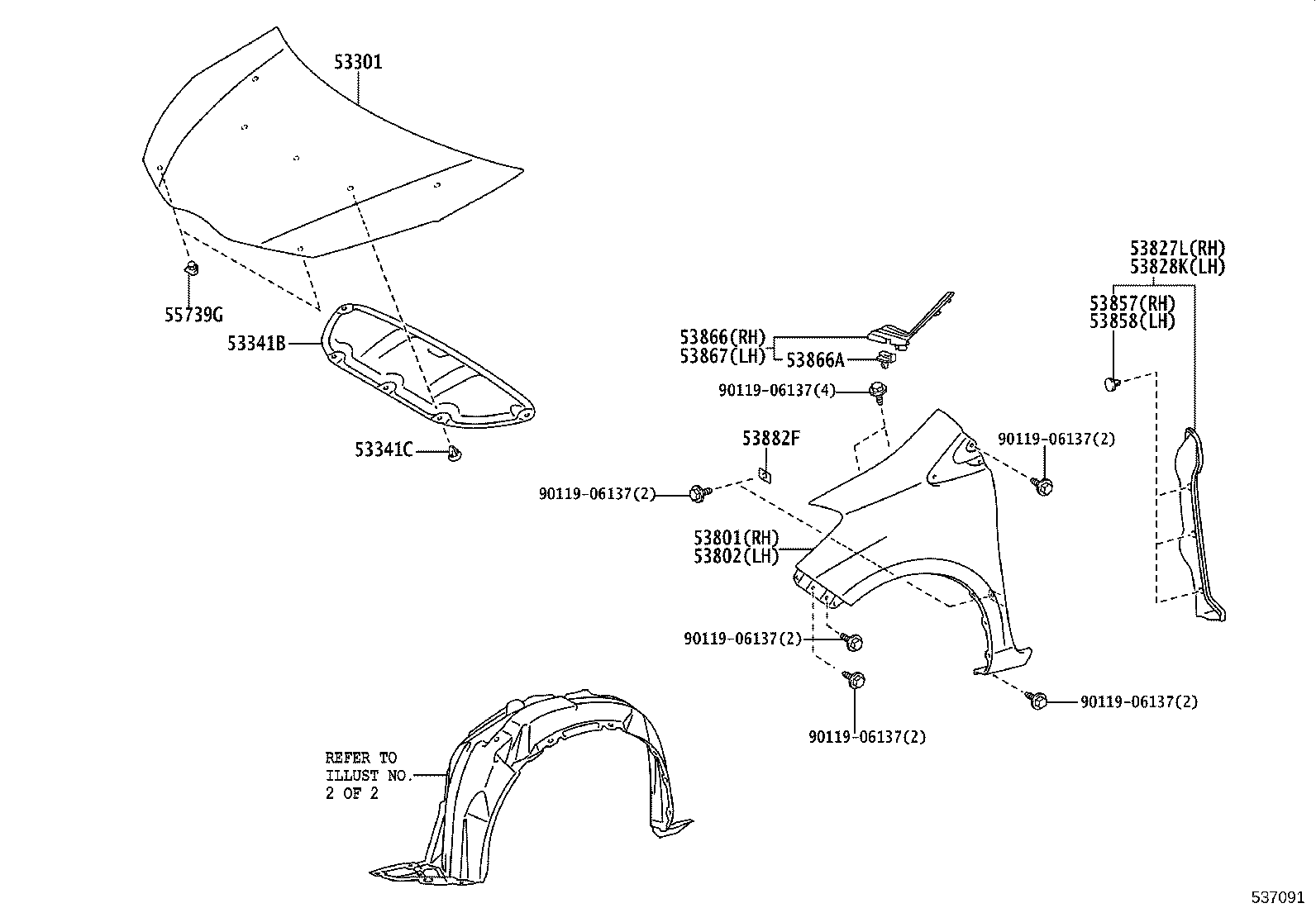

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53801 53802 53827L 53828K 53857 53858 53866 53866A 53867 53882F 55739G 9011906137 9011906137 9011906137 9011906137 9011906137 9011906137
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0D130

KSP130,NHP130,NLP130,NSP130

 1
53341B - INSULATOR, HOOD
53341-0D150

NHP130,NLP130

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

KSP130,NHP130,NLP130,NSP130

 5
53801 - FENDER SUB-ASSY, FRONT RH
53811-52390

KSP130,NHP130,NLP130,NSP130

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-52360

KSP130,NHP130,NLP130,NSP130

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D100

KSP130,NHP130,NLP130,NSP130

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D100

KSP130,NHP130,NLP130,NSP130

 1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

KSP130,NHP130,NLP130,NSP130

 3
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

KSP130,NHP130,NLP130,NSP130

 3
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0D090

KSP130,NHP130,NLP130,NSP130

 1
53866-0D091

KSP130,NHP130,NLP130,NSP130

 1
53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
55799-52020

KSP130,NHP130,NLP130,NSP130

 2
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0D090

KSP130,NHP130,NLP130,NSP130

 1
53867-0D091

KSP130,NHP130,NLP130,NSP130

 1
53882F - SEAL, FRONT FENDER
53882-16030

KSP130,NHP130,NLP130,NSP130

 2
55739G - STOPPER, HOOD
55738-52060

KSP130,NHP130,NLP130,NSP130

 2
Common parts
90119-06137

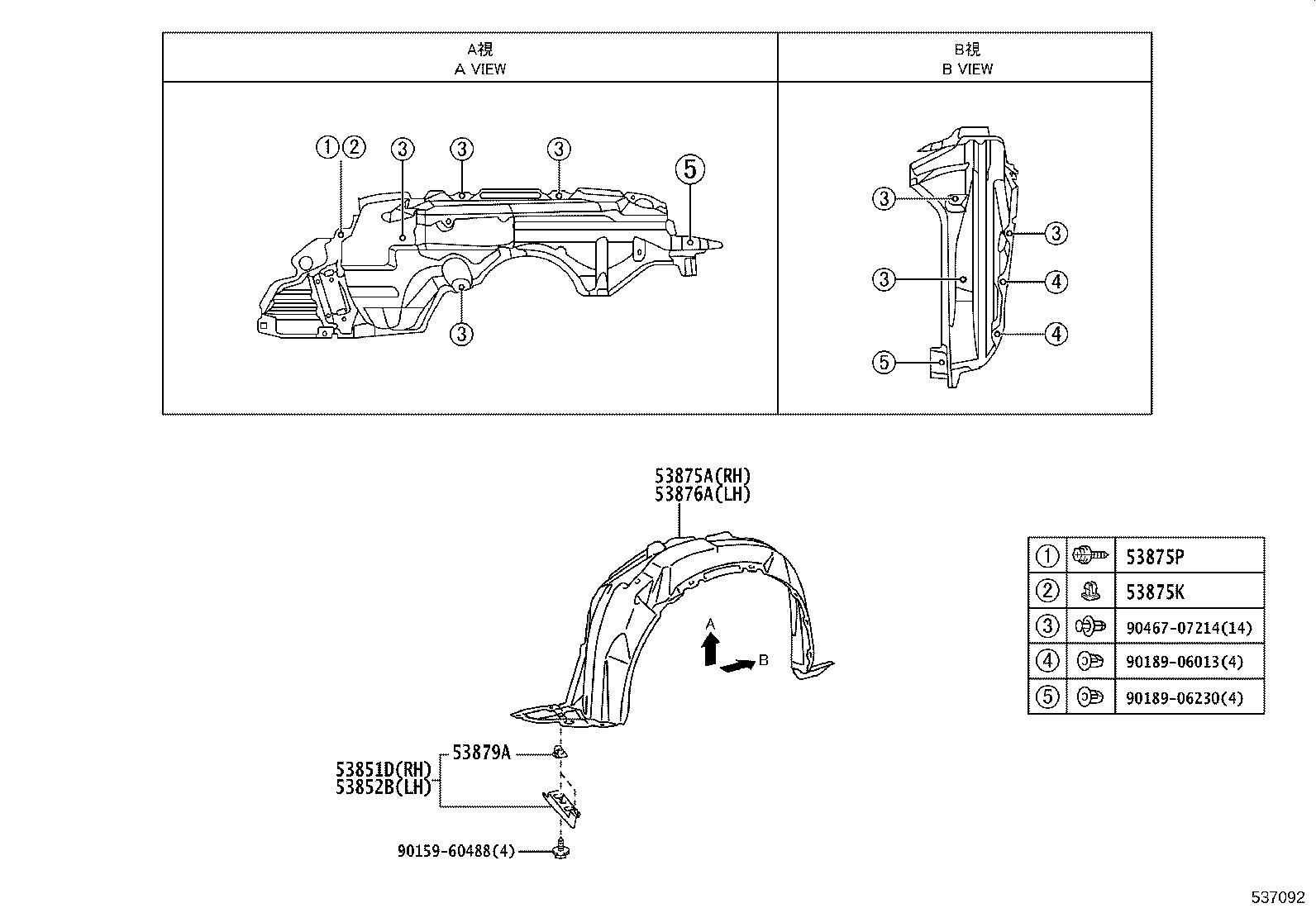

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

FENDER LINER

diagram 53851D 53852B 53875A 53875K 53875P 53876A 53879A 9015960488 9018906013 9018906230 9046707214
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0D070

KSP130,NHP130,NLP130,NSP130

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0D030

KSP130,NHP130,NLP130,NSP130

 1
53875A - LINER, FRONT FENDER, RH
53875-0D160

NHP130,NLP130;KSP130,NSP130..LOUNG,STYLE

 1
53875-0D430

NLP130;KSP130,NHP130,NSP130..ACTIV,LOUNG,STYLE

 1
53875K - GROMMET, SCREW
90189-06237

KSP130,NHP130,NLP130,NSP130

 2
90189-06193

KSP130,NLP130,NSP130

 2
53875P - SCREW, NO.1
90159-60383

KSP130,NHP130,NLP130,NSP130

 2
53876A - LINER, FRONT FENDER, LH
53876-0D430

NLP130;KSP130,NHP130,NSP130..ACTIV,LOUNG,STYLE

 1
53876-0D160

NHP130,NLP130;KSP130,NSP130..LOUNG,STYLE

 1
53879A - RETAINER, FRONT FENDER LINER
53879-17020

KSP130,NHP130,NLP130,NSP130

 4
Common parts
90159-60488
90189-06013
90189-06230
90467-07214
