NLP130R-CHFGXW (2011)
Toyota Yaris/Hybrid (Frp)

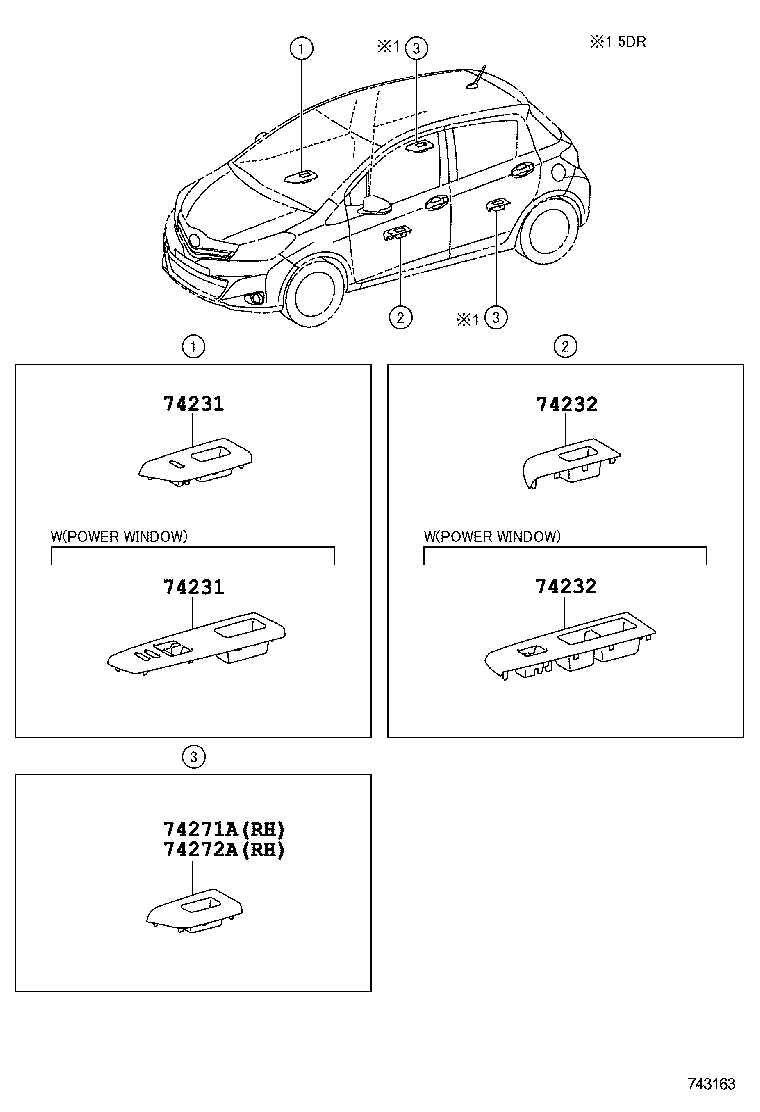

ILLUST NO. 1 OF 2(1107- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D310C0 |
KSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D310C0 |
KSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D310C0 |
KSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-0D310C0 |
KSP130,NHP130,NLP130,NSP130..RHD..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D320C0 |
KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D320C0 |
KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D320C0 |
KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-0D320C0 |
KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D110C0 |
KSP130,NHP130,NLP130,NSP130..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0D110C0 |
KSP130,NHP130,NLP130,NSP130..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D110C0 |
KSP130,NHP130,NLP130,NSP130..5D..LOUNG BLACK,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0D110C0 |
KSP130,NHP130,NLP130,NSP130..5D..LOUNG BLACK,TRIM1# |
1 | ||
ILLUST NO. 2 OF 2(1107- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-0D660B0 |
KSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) LT.GRAY,TRIM1# |
1 | ||
| 74310-0D710B0 |
NHP130..RHD..LOUNG;NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-0D730B0 |
NHP130..RHD..LOUNG;NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) AIR BAG CAUTION LABEL-*PGRBTMA&MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74320-0D610B0 |
NHP130..RHD..LOUNG;NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1# |
1 | ||
| 74320-0D580B0 |
KSP130,NHP130,NLP130,NSP130..RHD LT.GRAY,TRIM1# |
1 | ||
| 74320-0D720B0 |
KSP130,NHP130,NLP130,NSP130..RHD AIR BAG CAUTION LABEL-*PGRBTMA,LT.GRAY,TRIM1# |
1 | ||
| 74320-0D611B0 |
NHP130..RHD..LOUNG;NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) MOON ROOF-WITH(PANORAMIC ROOF),LT. GRAY,TRIM1# |
1 | ||
| 74320-0D581B0 |
KSP130,NHP130,NLP130,NSP130..RHD LT. GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-05140B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
3 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-05130B0 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080B1 |
KSP130,NHP130,NLP130,NSP130 LT.GRAY,TRIM1# |
8 | ||
| Common parts | ||||
| 90149-50009 | ||||
