Toyota Yaris/hybrid (frp) NLP130 FRONT SEAT & SEAT TRACK

NLP130R-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )RHD..5D

Click highlighted areas on diagram

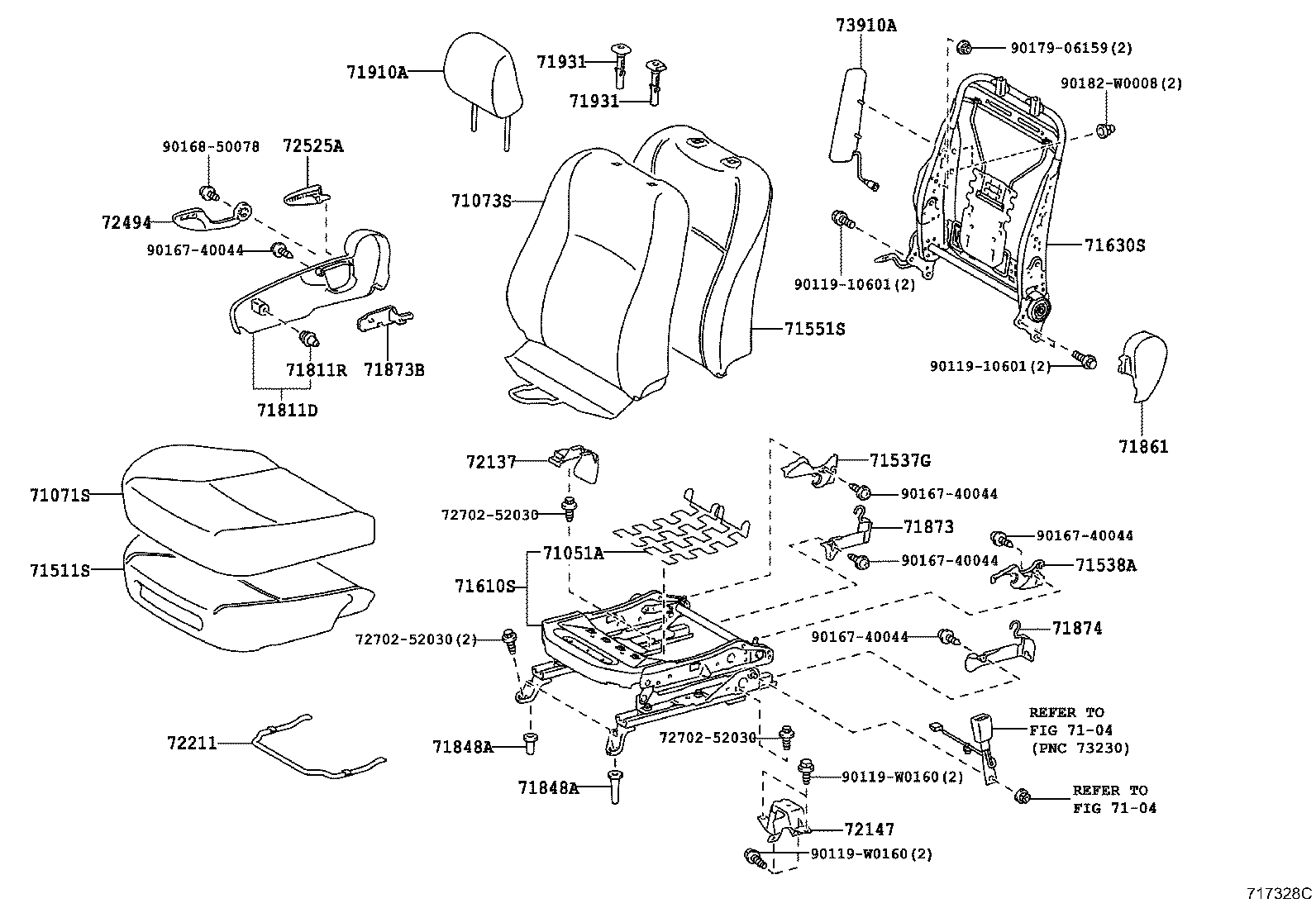

DRIVER SEAT

Part #	Description	Period	Qty
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0D870B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 02/2012	1
71071-0DA30B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	07/2011 - 02/2012	1
71071-0D871B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	03/2012 - 03/2013	1
71071-0DA31B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	03/2012 - 03/2013	1
71071-0D872B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	03/2013 - 07/2014	1
71071-0DA32B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2014	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0DC50B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 04/2012	1
71073-0DD10B1	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	07/2011 - 04/2012	1
71073-0DD10B2	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	04/2012 - 03/2013	1
71073-0DC50B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	04/2012 - 07/2013	1
71073-0DD11B2	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2013	1
71073-0DT10B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	07/2013 - 07/2014	1
71073-0DT30B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2013 - 07/2014	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D230	KSP130,NHP130,NLP130,NSP130..RHD..5D	07/2011 - 12/2999	1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0D020C0	KSP130,NHP130,NLP130,NSP130..RHD..5D BLACK,TRIM1#	07/2011 - 07/2014	1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-0D040C0	KSP130,NHP130,NLP130,NSP130..RHD..5D BLACK,TRIM1#	07/2011 - 07/2014	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D300	KSP130,NHP130,NLP130,NSP130..5D	07/2011 - 12/2999	1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0D192	KSP130,NHP130,NLP130,NSP130..RHD..5D	11/2011 - 11/2013	1
71610-0D191	KSP130,NSP130..RHD..5D;NLP130..5D..(LOUNG,STYLE);NLP130..RHD..5D..(ACTIV,STD);KSP130,NSP130..LHD..5D..(LOUNG,STYLE)	07/2011 - 10/2011	1
71610-0D193	KSP130,NHP130,NLP130,NSP130..RHD..5D	11/2013 - 07/2014	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D240C0	KSP130,NHP130,NLP130,NSP130..5D BLACK,TRIM1#	07/2011 - 07/2014	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D180C0	KSP130,NHP130,NLP130,NSP130..RHD..5D BLACK,TRIM1#	07/2011 - 07/2014	1
71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH
71769-47020	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D160C0	KSP130,NHP130,NLP130,NSP130..RHD..5D BLACK,TRIM1#	07/2011 - 07/2014	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0D110C0	KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1#	07/2011 - 07/2014	1
71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71873-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1#	07/2011 - 07/2014	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-0D120C0	KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1#	07/2011 - 07/2014	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0D560C0	NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D110C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-0D110	NHP130;KSP130,NLP130,NSP130..RHD;KSP130,NLP130,NSP130..LHD..5D	07/2011 - 12/2999	1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-0D080C0	KSP130,NHP130,NLP130,NSP130..RHD BLACK,TRIM1#	07/2011 - 07/2014	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D180C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 05/2013	1
73910-0D061	KSP130,NHP130,NLP130,NSP130	06/2013 - 07/2014	1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90168-50078
90179-06159
90182-W0008
Linked diagrams
7104

(1107- )RHD..5D..LOUNG,STYLE

Click highlighted areas on diagram

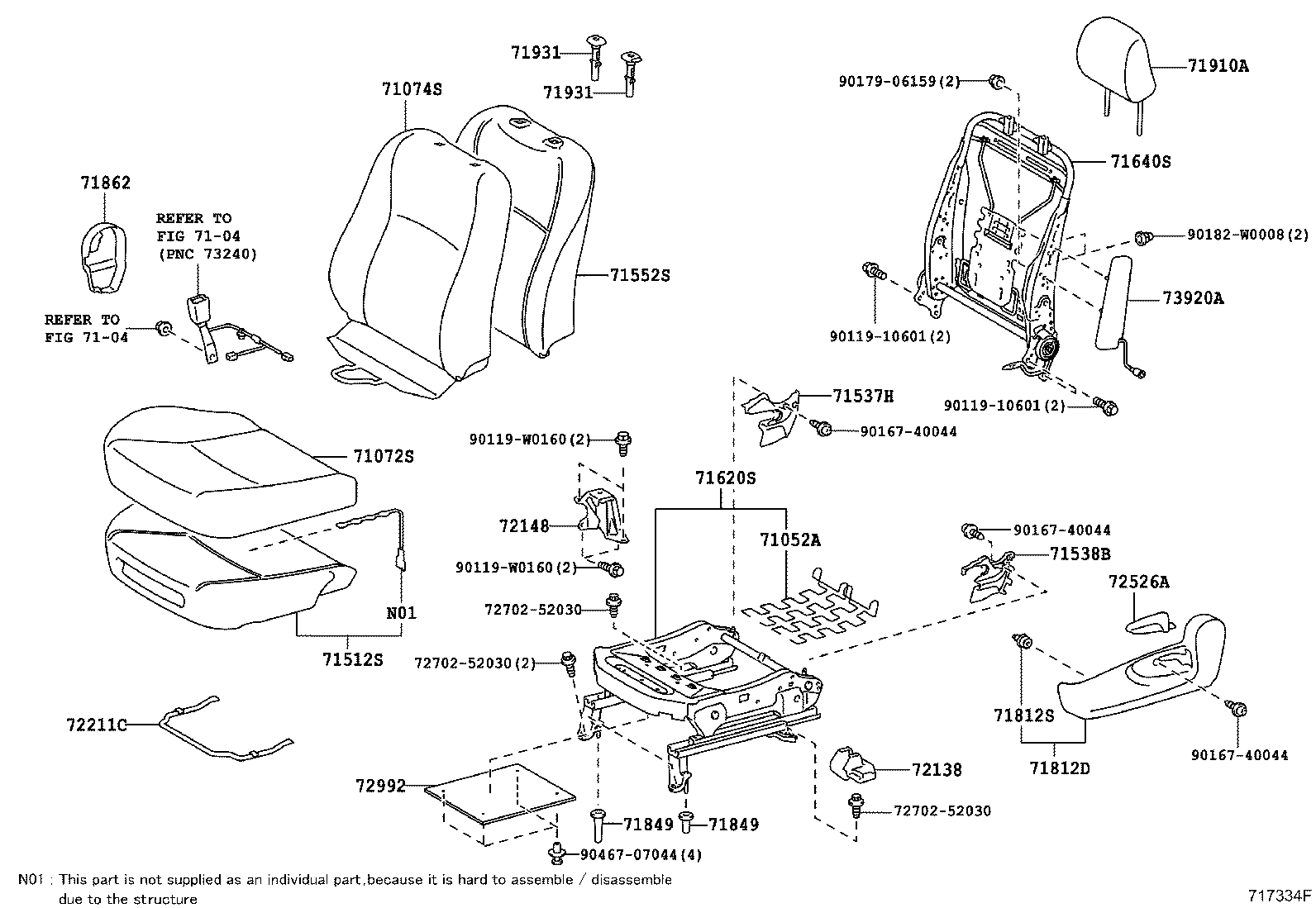

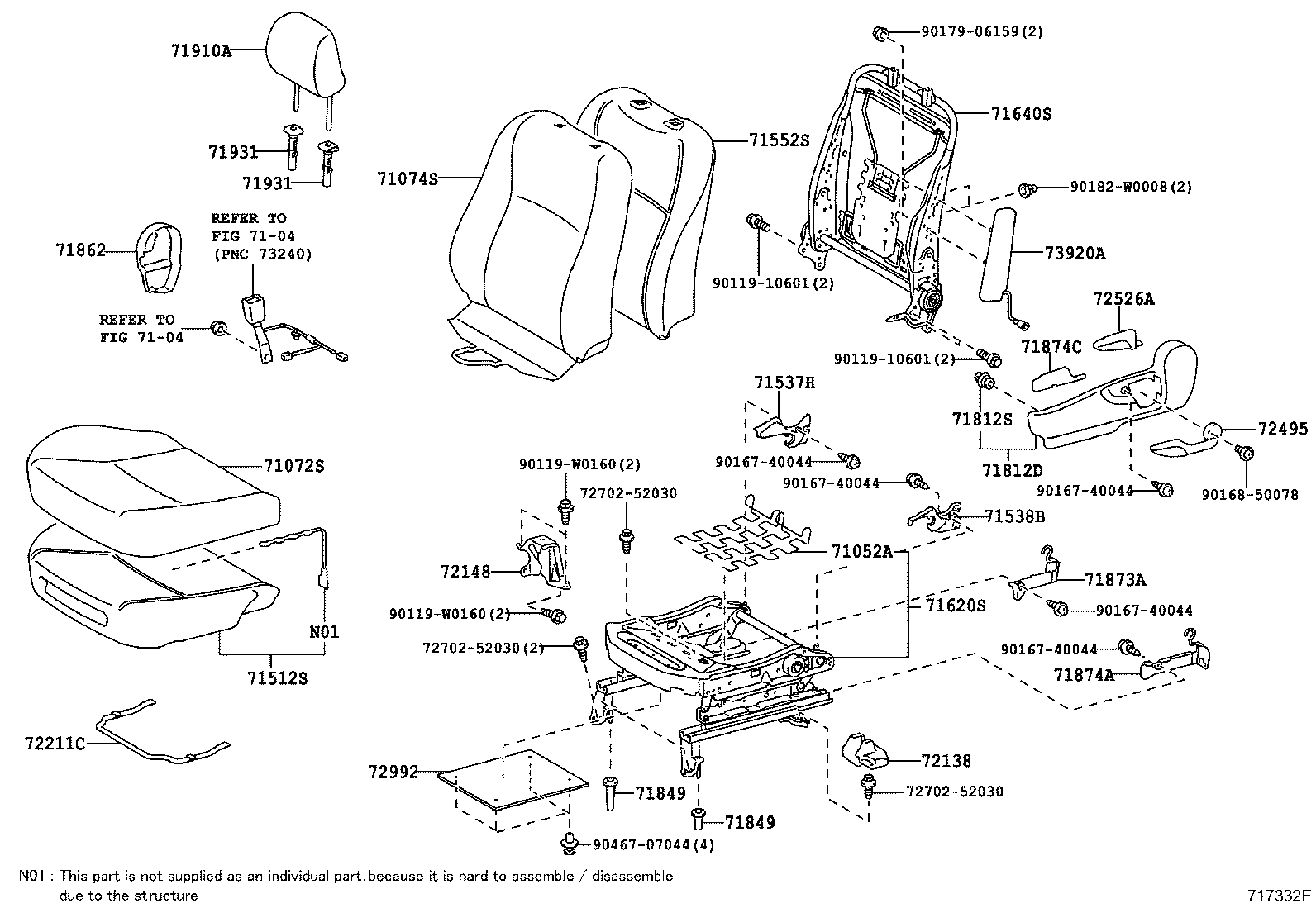

PASSENGER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0D890B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	07/2011 - 12/2011	1
71072-0DA30B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 12/2011	1
71072-0D891B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	01/2012 - 03/2013	1
71072-0DA31B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	01/2012 - 03/2013	1
71072-0D892B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DA32B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DR60B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DR80B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	03/2013 - 07/2014	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0DA30B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	07/2011 - 04/2012	1
71074-0DA10B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 04/2012	1
71074-0DA30B2	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	04/2012 - 03/2013	1
71074-0DA10B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	04/2012 - 07/2014	1
71074-0DA10B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71074-0DA31B2	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2014	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0D040	KSP130,NHP130,NLP130,NSP130..RHD..5D	07/2011 - 07/2014	1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D020C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71537-0D020C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71537-0D020C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71537-0D010C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D040C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71538-0D030C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71538-0D040C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71538-0D040C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D220	NLP130..5D..(ACTIV,STD);KSP130,NHP130,NSP130..RHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD)	07/2011 - 07/2014	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0D173	KSP130,NHP130,NLP130,NSP130..RHD..5D	11/2013 - 07/2014	1
71620-0D161	NLP130..LHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NSP130..5D..(LOUNG,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STD)	07/2011 - 10/2011	1
71620-0D162	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)	11/2011 - 03/2013	1
71620-0D162	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	03/2013 - 11/2013	1
71620-0D163	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	11/2013 - 07/2014	1
71620-0D163	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	11/2013 - 07/2014	1
71620-0D172	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)	03/2013 - 11/2013	1
71620-0D162	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	03/2013 - 11/2013	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D210C0	NLP130..5D..(ACTIV,STD);KSP130,NHP130,NSP130..RHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD) BLACK,TRIM1#	07/2011 - 07/2014	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D180C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71812-0D180C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71812-0D180C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71812-0D200C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71862-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71862-0D150C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71862-0D160C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-0D130C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71873-0D130C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71873-0D130C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-0D110C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71874-0D110C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71874-0D110C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71874-0D150C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71874-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0D560C0	NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D070C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D070	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D110	KSP130,NLP130,NSP130..LHD..3D;KSP130,NHP130,NLP130,NSP130..5D	07/2011 - 07/2014	1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-0D010C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
72495-0D010C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
72495-0D010C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D190C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0D120	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 05/2013	1
73920-0D061	KSP130,NHP130,NLP130,NSP130	06/2013 - 07/2014	1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90168-50078
90179-06159
90182-W0008
90467-07044
Linked diagrams
7104

(1107- )RHD..5D

Click highlighted areas on diagram

PASSENGER SEAT

Part #	Description	Period	Qty
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0D890B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	07/2011 - 12/2011	1
71072-0DA30B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 12/2011	1
71072-0D891B0	KSP130,NLP130,NSP130..5D..LOUNG GRAY,TRIM1#	01/2012 - 03/2013	1
71072-0DA31B0	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	01/2012 - 03/2013	1
71072-0D892B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DA32B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DR60B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2014	1
71072-0DR80B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	03/2013 - 07/2014	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0DA30B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	07/2011 - 04/2012	1
71074-0DA10B0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	07/2011 - 04/2012	1
71074-0DA30B2	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	04/2012 - 03/2013	1
71074-0DA10B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,GRAY,TRIM1#	04/2012 - 07/2014	1
71074-0DA10B1	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),GRAY,TRIM1#	03/2013 - 07/2014	1
71074-0DA31B2	KSP130,NLP130,NSP130..RHD..5D..LOUNG GRAY,TRIM1#	03/2013 - 07/2014	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0D040	KSP130,NHP130,NLP130,NSP130..RHD..5D	07/2011 - 07/2014	1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0D020C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71537-0D020C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71537-0D020C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71537-0D010C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0D040C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71538-0D030C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71538-0D040C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71538-0D040C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D220	NLP130..5D..(ACTIV,STD);KSP130,NHP130,NSP130..RHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD)	07/2011 - 07/2014	1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0D173	KSP130,NHP130,NLP130,NSP130..RHD..5D	11/2013 - 07/2014	1
71620-0D161	NLP130..LHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NSP130..5D..(LOUNG,STYLE);KSP130,NSP130..LHD..5D..(ACTIV,STD)	07/2011 - 10/2011	1
71620-0D162	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)	11/2011 - 03/2013	1
71620-0D162	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	03/2013 - 11/2013	1
71620-0D163	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	11/2013 - 07/2014	1
71620-0D163	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	11/2013 - 07/2014	1
71620-0D172	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)	03/2013 - 11/2013	1
71620-0D162	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER)	03/2013 - 11/2013	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D210C0	NLP130..5D..(ACTIV,STD);KSP130,NHP130,NSP130..RHD..5D;NLP130..RHD..5D..(LOUNG,STYLE);KSP130,NHP130,NSP130..LHD..5D..(ACTIV,STD) BLACK,TRIM1#	07/2011 - 07/2014	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D180C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71812-0D180C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71812-0D180C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71812-0D200C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH
71769-47020	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0D040C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,OUTER	07/2011 - 07/2014	1
71848-0D050C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#,INNER	07/2011 - 07/2014	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	07/2011 - 03/2013	1
71862-0D150C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71862-0D150C0	KSP130,NLP130,NSP130..RHD..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71862-0D160C0	KSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE) BLACK,TRIM1#	03/2013 - 07/2014	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0D560C0	NHP130..ACTIV;KSP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..5D..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER&FRONT SEAT VERTICAL ADJUSTER-WITH (DRIVER & PASSENGER),BLACK,TRIM1#	03/2013 - 07/2014	1
71910-0D780C1	KSP130,NLP130,NSP130..LOUNG SEAT COVER MATERIAL-YODESI 2/LEATHER,BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47020C0	KSP130,NHP130,NLP130,NSP130 W/O(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
71930-47020C0	KSP130,NHP130,NLP130,NSP130 W(LOCK),BLACK,TRIM1#	07/2011 - 07/2014	1
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D070C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D070	KSP130,NHP130,NLP130,NSP130	07/2011 - 12/2999	1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D110	KSP130,NLP130,NSP130..LHD..3D;KSP130,NHP130,NLP130,NSP130..5D	07/2011 - 07/2014	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D190C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0D120	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0D060	KSP130,NHP130,NLP130,NSP130	07/2011 - 05/2013	1
73920-0D061	KSP130,NHP130,NLP130,NSP130	06/2013 - 07/2014	1
Common parts
72702-52030
90119-10601
90119-W0160
90167-40044
90179-06159
90182-W0008
90467-07044
Linked diagrams
7104

(1107- )

Click highlighted areas on diagram

CLIP

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

NLP130R-CHFGXW (2011)

(1107- )RHD..5D

(1107- )RHD..5D..LOUNG,STYLE

(1107- )RHD..5D

(1107- )

Part Price Details
