NLP130R-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )5D

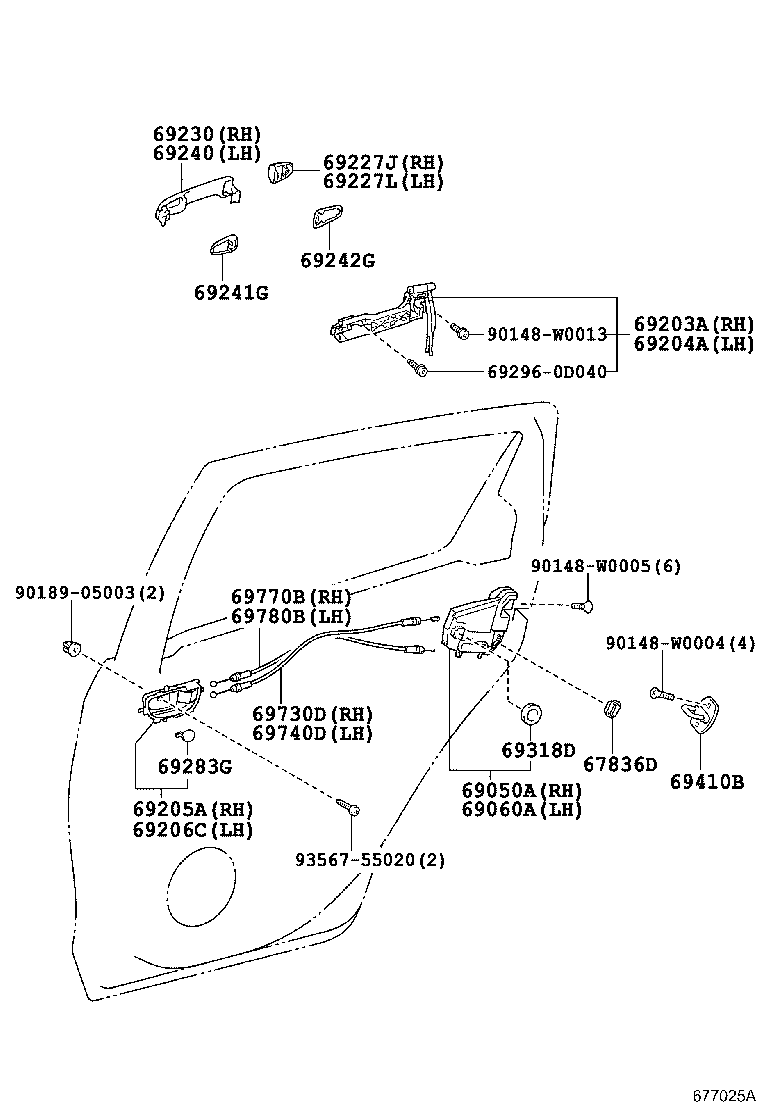

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69283G 692960D040 69318D 69410B 69730D 69740D 69770B 69780B 90148W0004 90148W0005 90148W0013 9018905003 9356755020
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

KSP130,NHP130,NLP130,NSP130..5D

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0D110

KSP130,NLP130,NSP130..RHD..5D..(ACTIV,LOUNG,STYLE)

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

 1
69050-0D170

KSP130,NLP130,NSP130..RHD..5D..(ACTIV,LOUNG,STYLE)

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0D170

KSP130,NLP130,NSP130..RHD..5D..(ACTIV,LOUNG,STYLE)

 1
69060-0D110

KSP130,NLP130,NSP130..RHD..5D..(ACTIV,LOUNG,STYLE)

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0D090

KSP130,NHP130,NLP130,NSP130..5D

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0D090

KSP130,NHP130,NLP130,NSP130..5D

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D450C0

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

BLACK,TRIM1#

 1
69205-0D200C0

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

BLACK,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D280C0

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

BLACK,TRIM1#

 1
69206-0D450C0

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

BLACK,TRIM1#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-0D904

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

LESS COLOR

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-0D904

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

LESS COLOR

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-0D904

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

PAINT REQ.

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-0D904

KSP130,NHP130,NLP130,NSP130..5D..(ACTIV,LOUNG,STYLE)

PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0D010

KSP130,NHP130,NLP130,NSP130..5D

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-0D010

KSP130,NHP130,NLP130,NSP130..5D

 2
69283G - PLUG, REAR DOOR INSIDE HANDLE BEZEL
69283-0D010C2

KSP130,NHP130,NLP130,NSP130..5D

EU BLACK,TRIM1#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

KSP130,NHP130,NLP130,NSP130..5D

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D030

KSP130,NHP130,NLP130,NSP130..5D

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0D140

KSP130,NHP130,NLP130,NSP130..5D

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0D140

KSP130,NHP130,NLP130,NSP130..5D

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0D110

KSP130,NHP130,NLP130,NSP130..5D

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0D110

KSP130,NHP130,NLP130,NSP130..5D

 1
Common parts
69296-0D040
90148-W0004
90148-W0005
90148-W0013
90189-05003
93567-55020
