NLP130R-CHFGXW (2011)
Toyota Yaris/Hybrid (Frp)
ILLUST NO. 2 OF 2(1107- )KSP130,NLP130,NSP130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0D160 |
KSP130,NLP130,NSP130 |
1 | ||
| 44050-0D190 |
NLP130..6FS..(LOUNG,STYLE);KSP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 44050-0D170 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 44050-0D190 |
KSP130,NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 44050-0D161 |
KSP130,NLP130,NSP130 |
1 | ||
| 44050-0D191 |
KSP130,NLP130,NSP130..ACTIV,LOUNG TIRE & DISC WHEEL-185/60R15, 5.5J, STEEL, BLACK, WITH(NUT) |
1 | ||
| 44050-0D191 |
NLP130..6FS..(LOUNG,STYLE);KSP130,NLP130,NSP130..(5F,6F,CVFC)..(ACTIV,LOUNG,STYLE) TIRE & DISC WHEEL-185/60R15, 5.5J, ALUMINUM |
1 | ||
| 44050-0D171 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52020 |
KSP130,NLP130,NSP130 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52020 |
KSP130,NLP130,NSP130 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-52020 |
KSP130,NLP130,NSP130 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0D140 |
NSP130..LHD..CVFC;KSP130,NLP130,NSP130..RHD |
1 | ||
| Common parts | ||||
| 44521-0D020 | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90119-W0061 | ||||
| 90178-W0019 | ||||

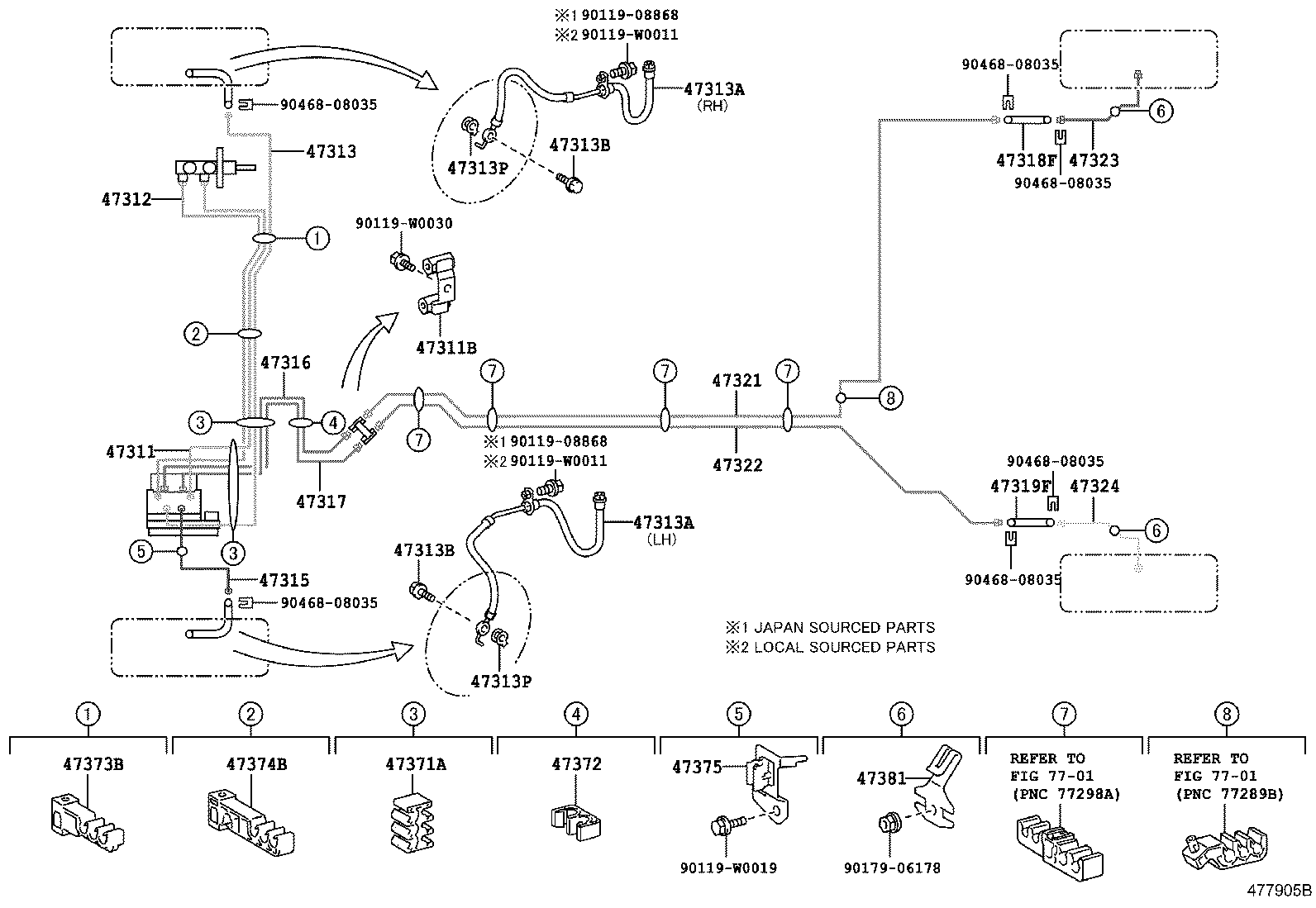

ILLUST NO. 1 OF 2(1107- )KSP130,NLP130,NSP130..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D520 |
NLP130..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D260 |
NLP130..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D440 |
NLP130..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2029 |
KSP130,NLP130,NSP130 RH |
1 | ||
| 90947-W2035 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2030 |
KSP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2034 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2029 |
KSP130,NLP130,NSP130 RH |
1 | ||
| 90947-W2035 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2030 |
KSP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2034 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D420 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D330 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D330 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-W2031 |
KSP130,NLP130,NSP130 |
1 | ||
| 90947-W2036 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-W2037 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 90947-W2032 |
KSP130,NLP130,NSP130 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D190 |
KSP130,NLP130,NSP130 |
1 | ||
| 47323-0D200 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D190 |
KSP130,NLP130,NSP130 |
1 | ||
| 47324-0D200 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00898 |
KSP130,NLP130,NSP130..RHD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01972 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D84 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D85 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-0D020 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
KSP130,NLP130,NSP130 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-W0011 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 7701 | ||||

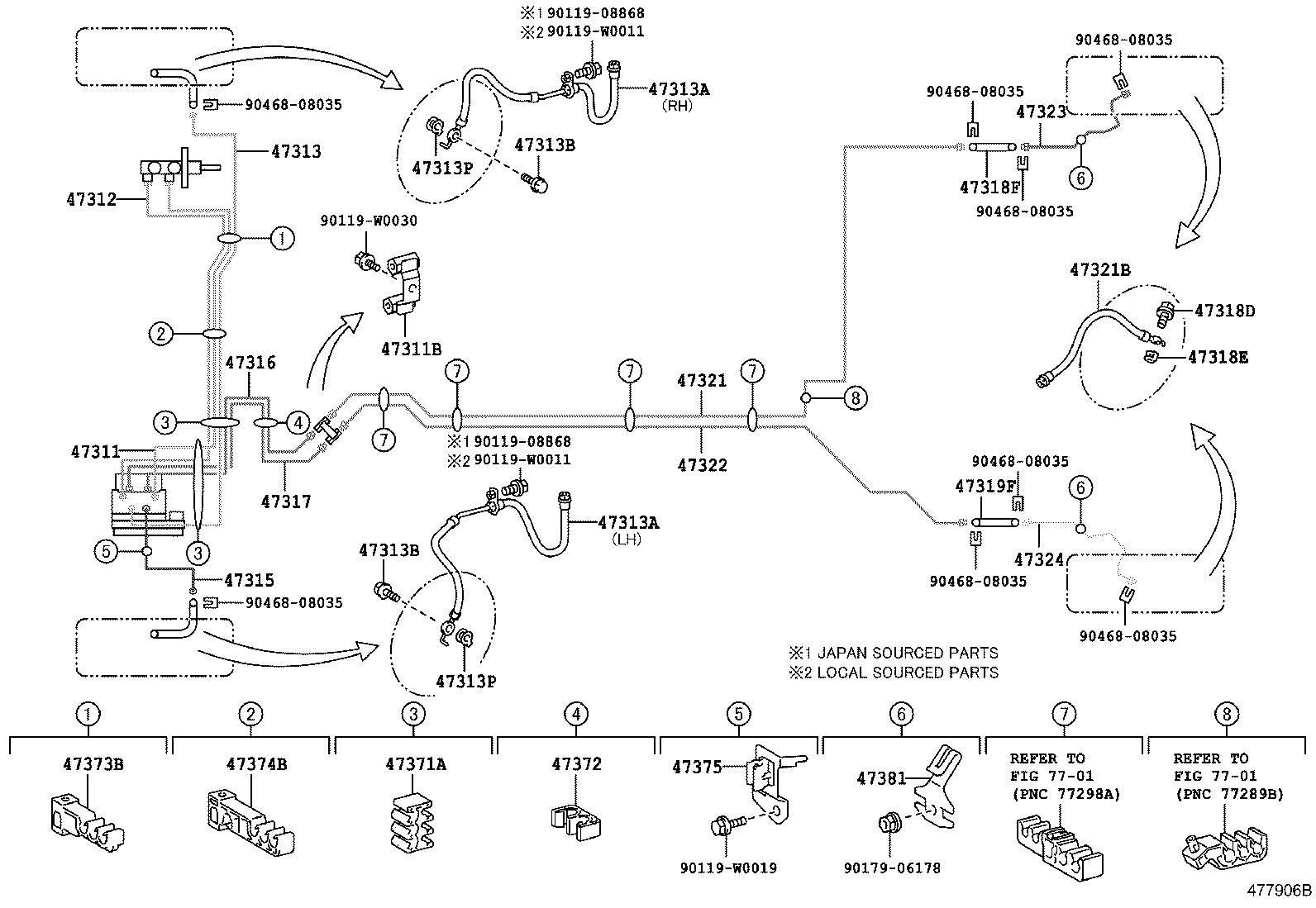

ILLUST NO. 1 OF 2(1107- )KSP130,NLP130,NSP130..RHD
W(REAR DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0D520 |
NLP130..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0D260 |
NLP130..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0D440 |
NLP130..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2029 |
KSP130,NLP130,NSP130 RH |
1 | ||
| 90947-W2035 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2030 |
KSP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2034 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-W2029 |
KSP130,NLP130,NSP130 RH |
1 | ||
| 90947-W2035 |
KSP130,NHP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2030 |
KSP130,NLP130,NSP130 LH |
1 | ||
| 90947-W2034 |
KSP130,NHP130,NLP130,NSP130 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0D420 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0D330 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0D330 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-W2031 |
KSP130,NLP130,NSP130 |
1 | ||
| 90947-W2036 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-W2037 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 90947-W2032 |
KSP130,NLP130,NSP130 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-W2038 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
2 | ||
| 90947-W2033 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
2 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0D300 |
KSP130,NLP130,NSP130 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0D190 |
KSP130,NLP130,NSP130 |
1 | ||
| 47323-0D200 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0D190 |
KSP130,NLP130,NSP130 |
1 | ||
| 47324-0D200 |
KSP130,NLP130,NSP130 REAR WHEEL BRAKE-DISK(BUILT-IN) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00898 |
KSP130,NLP130,NSP130..RHD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01972 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D84 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D85 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-0D020 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
KSP130,NLP130,NSP130 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-W0011 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 7701 | ||||
