NLP130R-CHFGXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )KSP130,NLP130,NSP130..RHD

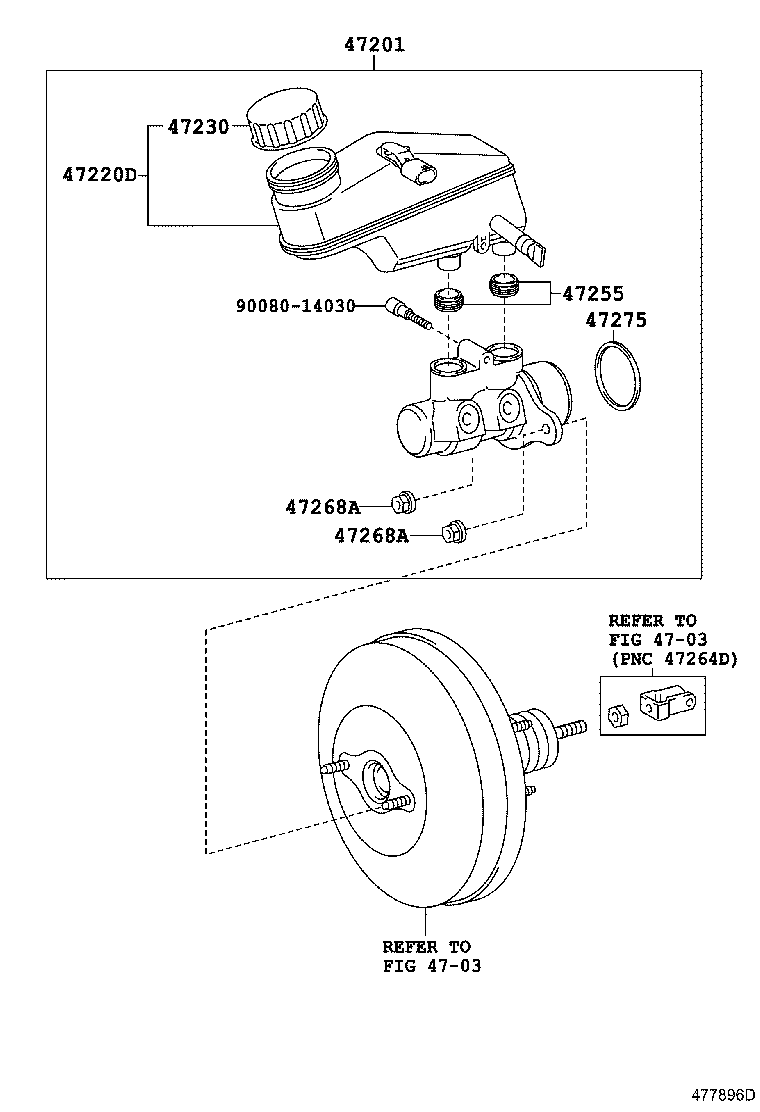

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-09660 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0D170 |
KSP130,NLP130,NSP130..RHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D060 |
KSP130,NLP130,NSP130 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09030 |
KSP130,NLP130,NSP130 |
1 | ||
| 47268A - NUT, BRAKE MASTER CYLINDER | ||||
| 47268-05010 |
KSP130,NLP130,NSP130 |
2 | ||
| 47268A - NUT, BRAKE MASTER CYLINDER | ||||
| 47268-05010 |
KSP130,NLP130,NSP130 |
2 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-0D020 |
KSP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90080-14030 | ||||
| Linked diagrams | ||||
| 4703 | ||||
