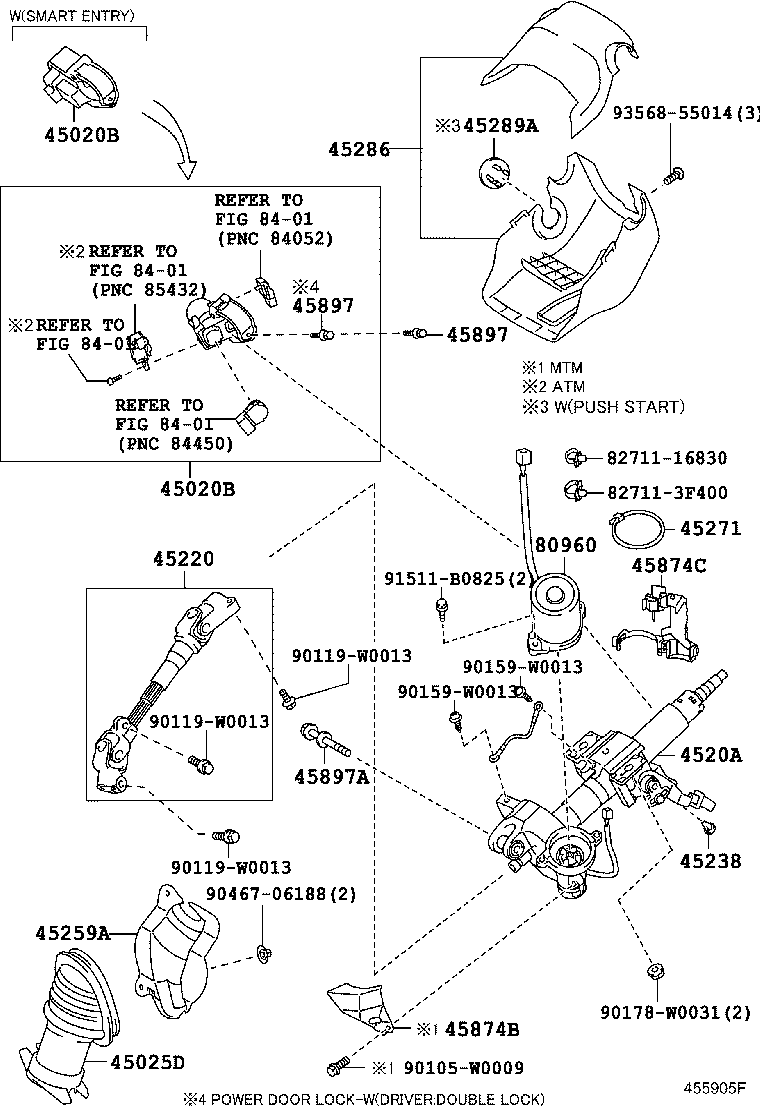

Toyota Yaris/hybrid (frp) NLP130 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D100	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)	07/2011 - 02/2014	1
45020-0D080	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 02/2014	1
45020-0D101	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)	03/2014 - 07/2014	1
45020-0D130	KSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2011 - 07/2014	1
45020-0D081	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	03/2014 - 07/2014	1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D100	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)	07/2011 - 02/2014	1
45020-0D080	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 02/2014	1
45020-0D101	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE)	03/2014 - 07/2014	1
45020-0D130	KSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2011 - 07/2014	1
45020-0D081	KSP130,NLP130,NSP130..RHD..MTM..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	03/2014 - 07/2014	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D062	KSP130,NHP130,NLP130,NSP130	11/2011 - 12/2999	1
45025-0D061	KSP130,NLP130,NSP130	07/2011 - 11/2011	1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0D080	NHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2011 - 12/2999	1
4520A-0D070	NHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD	07/2011 - 12/2999	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0D020	KSP130,NHP130,NLP130,NSP130..RHD	07/2011 - 12/2999	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010	KSP130,NHP130,NLP130,NSP130	07/2011 - 07/2014	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45255-0D120	NLP130..RHD	07/2011 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040	KSP130,NHP130,NLP130,NSP130..RHD	07/2011 - 12/2999	1
45286 - COVER, STEERING COLUMN
45286-0D915C0	KSP130,NHP130,NLP130,NSP130 BLACK,TRIM1#	07/2011 - 07/2014	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-0D050C0	NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#	07/2011 - 07/2014	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-52030	KSP130,NLP130,NSP130..RHD..MTM	07/2011 - 12/2999	1
45874C - PROTECTOR, STEERING COLUMN, NO.1
45874-0D040	KSP130,NHP130,NLP130,NSP130..RHD	07/2011 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 12/2999	1
45897-12020	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2011 - 12/2999	1
45897-12050	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)	07/2011 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)	07/2011 - 12/2999	1
45897-12020	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE) WIRELESS DOOR LOCK-WITH(SMART ENTRY)	07/2011 - 12/2999	1
45897-12050	KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)	07/2011 - 12/2999	1
45897A - BOLT, TILT STEERING PAWL SET
90119-10980	KSP130,NHP130,NLP130,NSP130	11/2013 - 12/2999	1
45897-42010	KSP130,NHP130,NLP130,NSP130	07/2011 - 10/2013	1
80960 - MOTOR ASSY, POWER STEERING
80960-52070	KSP130,NHP130,NLP130,NSP130..RHD	08/2013 - 11/2013	1
80960-52080	KSP130,NHP130,NLP130,NSP130..RHD	07/2011 - 07/2013	1
80960-52110	KSP130,NHP130,NLP130,NSP130..RHD	12/2013 - 06/2014	1
Common parts
82711-16830
82711-3F400
90105-W0009
90119-W0013
90159-W0013
90178-W0031
90467-06188
91511-B0825
93568-55014
Linked diagrams
8401

NLP130R-CHFGXW (2011)

(1107- )RHD
