NLP130R-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )RHD..MTM

Click highlighted areas on diagram

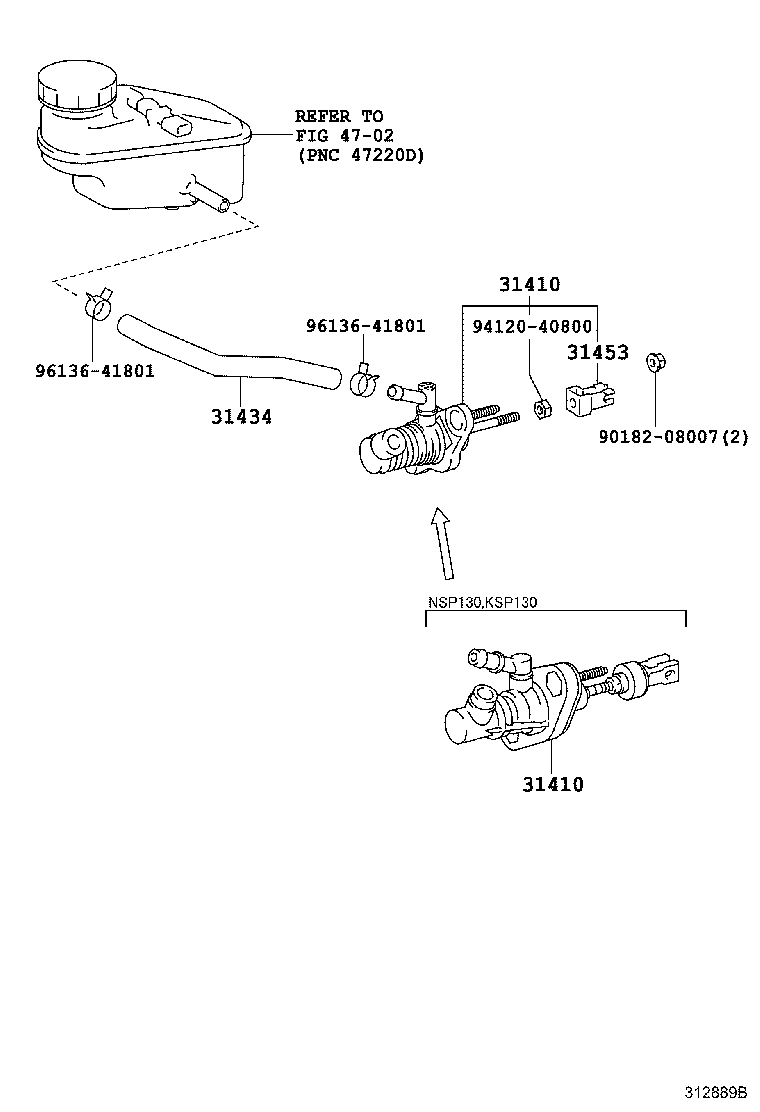

diagram 31410 31410 31434 31453 4702 9018208007 9412040800 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52050

NLP130..RHD

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-52050

NLP130..RHD

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52250

KSP130,NLP130,NSP130..RHD..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-52010

NLP130..RHD

 1
Common parts
90182-08007
94120-40800
96136-41801
Linked diagrams
4702
