NLP130R-CHFGXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

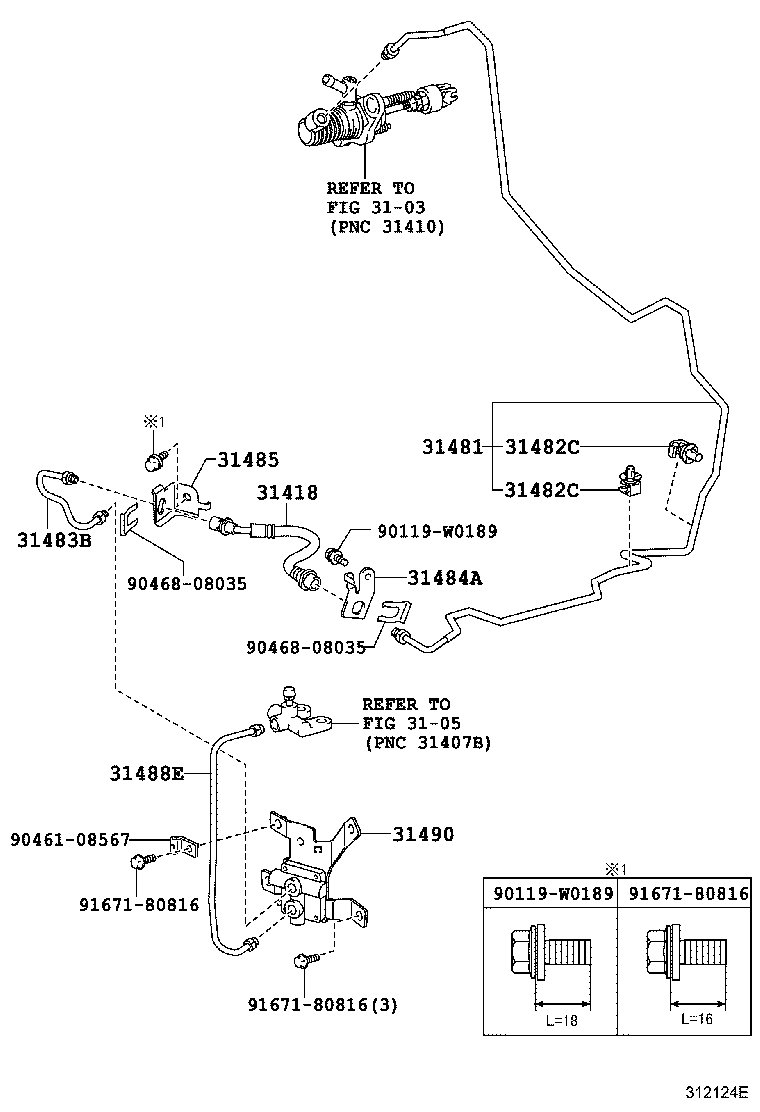

ILLUST NO. 2 OF 2(1107- )NLP130..RHD

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482C 31482C 31483B 31484A 31485 31488E 31490 90119W0189 90119W0189 9046108567 9046808035 9046808035 9167180816 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02G12

NLP130..6F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D170

NLP130..RHD

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NLP130,NSP130..5F,6F

 2
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D17

KSP130,NLP130,NSP130..5F,6F

 2
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0D030

NLP130..6F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-52090

KSP130,NLP130,NSP130..5F,6F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D050

NLP130,NSP130..6F

 1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31488-0D010

NLP130..6F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-52040

NLP130..6F

 1
Common parts
90119-W0189
90461-08567
90468-08035
91671-80816
Linked diagrams
3103
3105

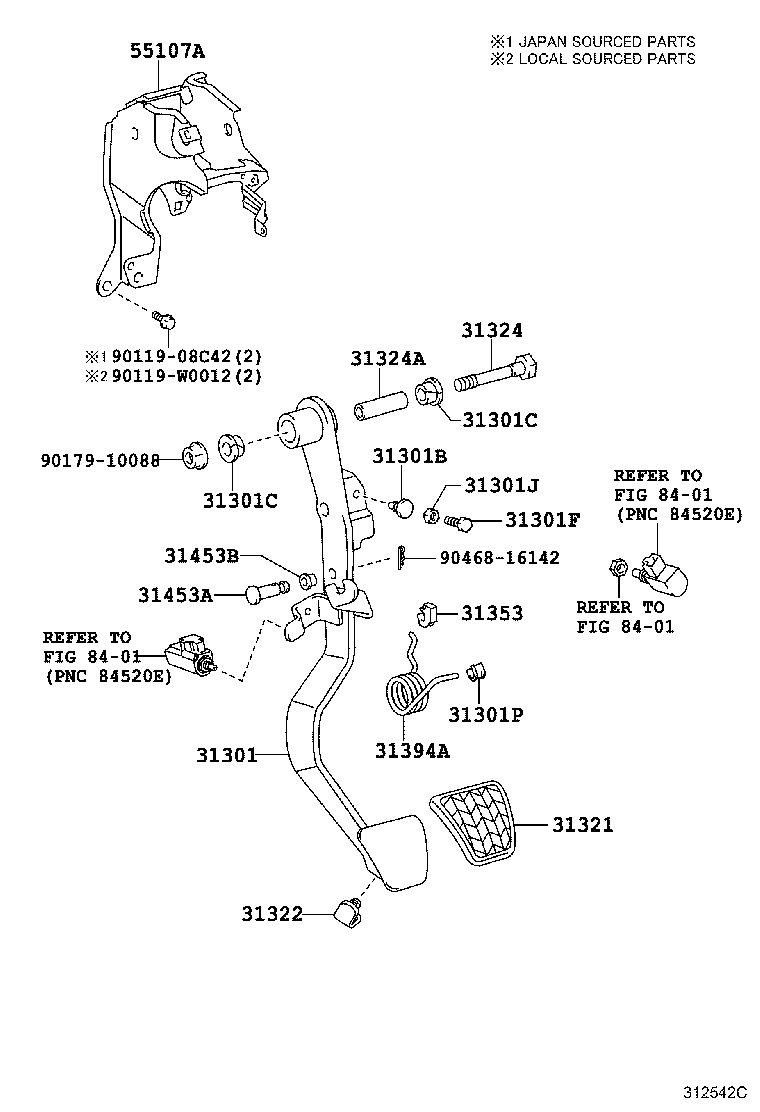

ILLUST NO. 1 OF 2(1107- )NLP130..RHD

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301J 31301P 31321 31322 31324 31324A 31353 31394A 31453A 31453B 55107A 8401 8401 8401 9011908C42 90119W0012 9017910088 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0D170

NLP130..RHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KSP130,NLP130,NSP130..5F,6F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NLP130,NSP130..5F,6F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KSP130,NLP130,NSP130..5F,6F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91112-61025

KSP130,NLP130,NSP130..RHD..MTM

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-W0002

KSP130,NLP130,NSP130..RHD..MTM

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

NLP130..RHD

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KSP130,NLP130,NSP130..5F,6F

 1
31322 - STOPPER, CLUTCH PEDAL
31322-52010

KSP130,NLP130,NSP130..RHD..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90105-10444

KSP130,NLP130,NSP130..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

KSP130,NLP130,NSP130..RHD..MTM

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

NLP130..6F

 1
31394A - SPRING, PEDAL W/HOOK
31394-0D070

NLP130..RHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051

KSP130,NLP130,NSP130..RHD..MTM

L=31.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

KSP130,NLP130,NSP130..RHD..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D220

NLP130..RHD

 1
Common parts
90119-08C42
90119-W0012
90179-10088
90468-16142
Linked diagrams
8401
