NLP130R-CGFSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

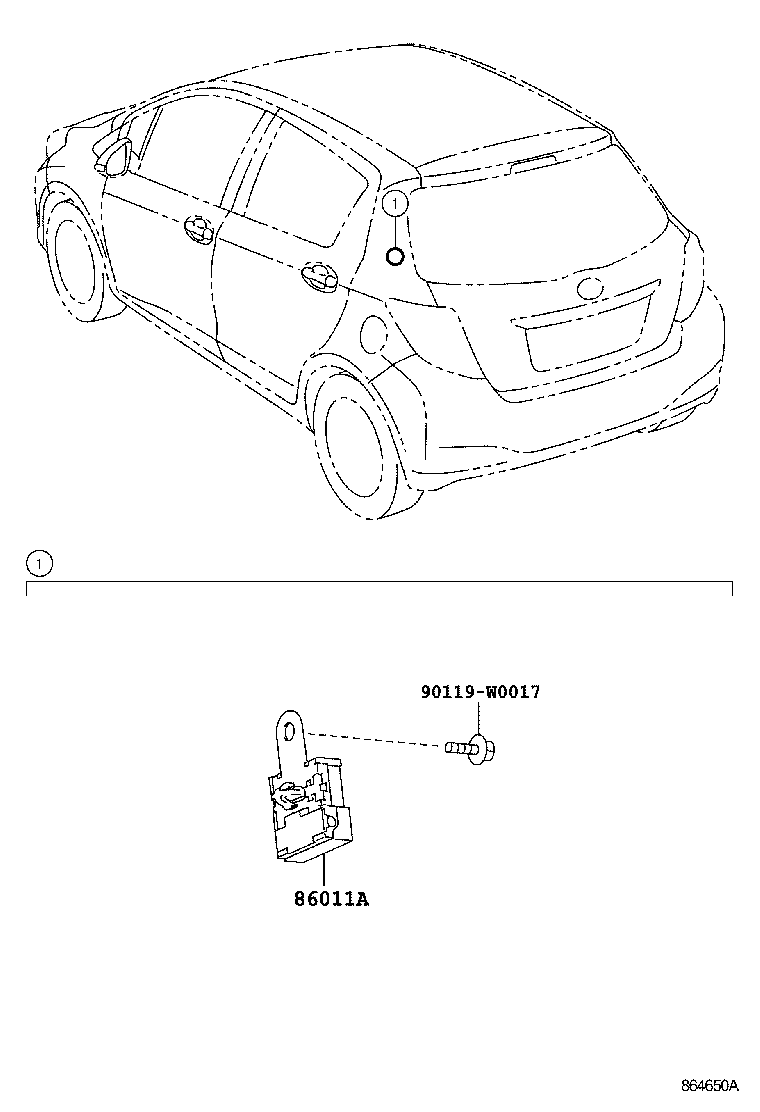

ILLUST NO. 2 OF 2(1107-1204)

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119W0017
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

KSP130,NHP130,NLP130,NSP130

 1
Common parts
90119-W0017

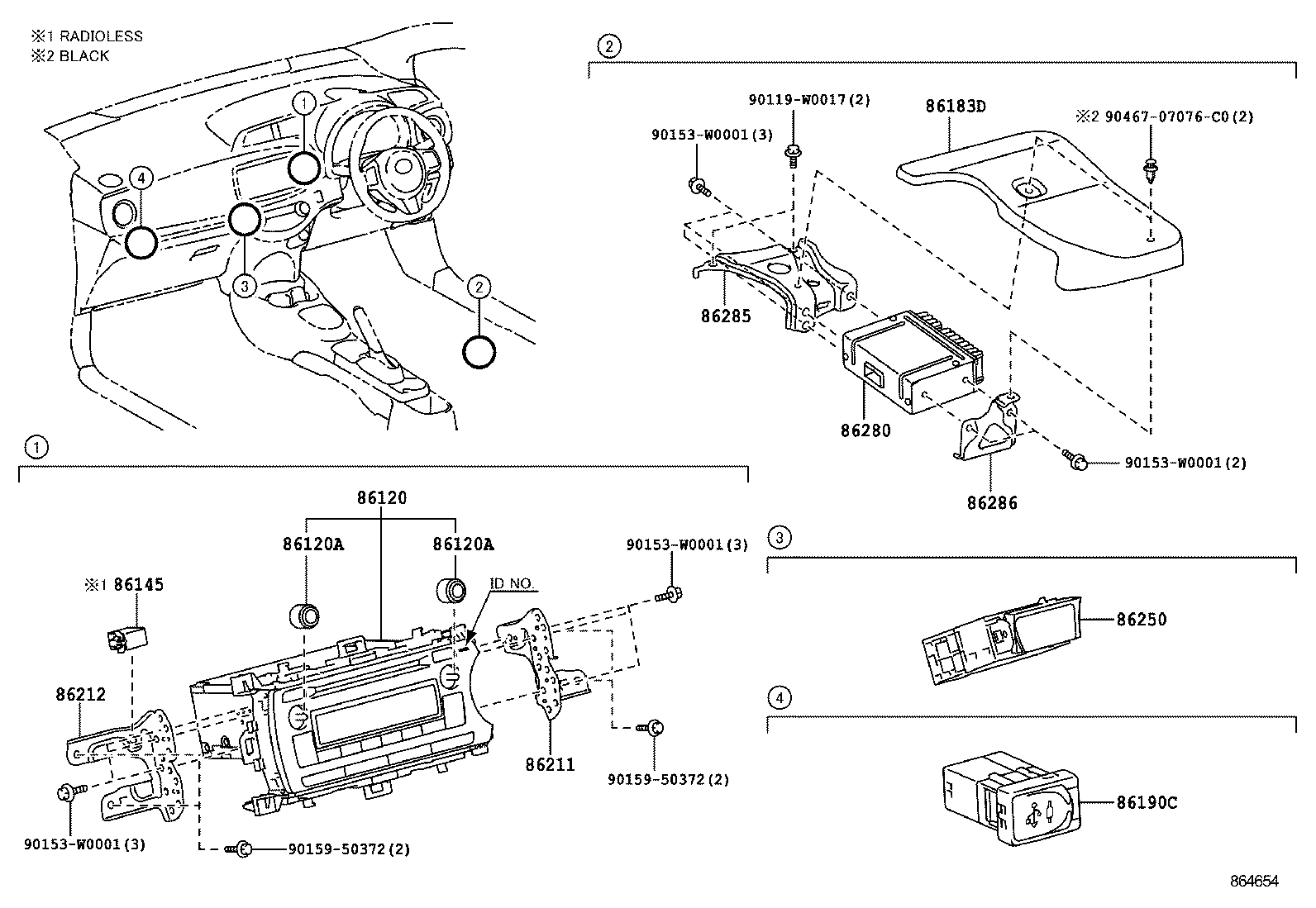

ILLUST NO. 1 OF 2(1107- )RHD

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86145 86183D 86190C 86211 86212 86250 86280 86285 86286 90119W0017 90153W0001 90153W0001 90153W0001 90153W0001 9015950372 9015950372 9046707076C0
Part # Description Qty Price
86183D - COVER, AUDIO AMPLIFIER
86183-0D010

NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG)

AUDIO-DISPLAY 8SPEAKER BLUETOOTH

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D070

KSP130,NHP130,NLP130,NSP130

 1
86190-0D030

KSP130,NHP130,NLP130,NSP130

 1
86211 - BRACKET, RADIO, NO.1
86211-0D130

KSP130,NHP130,NLP130,NSP130

 1
86212 - BRACKET, RADIO, NO.2
86212-0D130

KSP130,NHP130,NLP130,NSP130

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-0D020

KSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0D010

NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG)

AUDIO-DISPLAY 8SPEAKER BLUETOOTH

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-0D010

NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG)

AUDIO-DISPLAY 8SPEAKER BLUETOOTH

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-0D010

NLP130,NSP130..LHD..ACTIV;NLP130,NSP130..LOUNG,STYLE;KSP130..LHD..(ACTIV,LOUNG)

AUDIO-DISPLAY 8SPEAKER BLUETOOTH

 1
Common parts
90119-W0017
90153-W0001
90159-50372
90467-07076C0

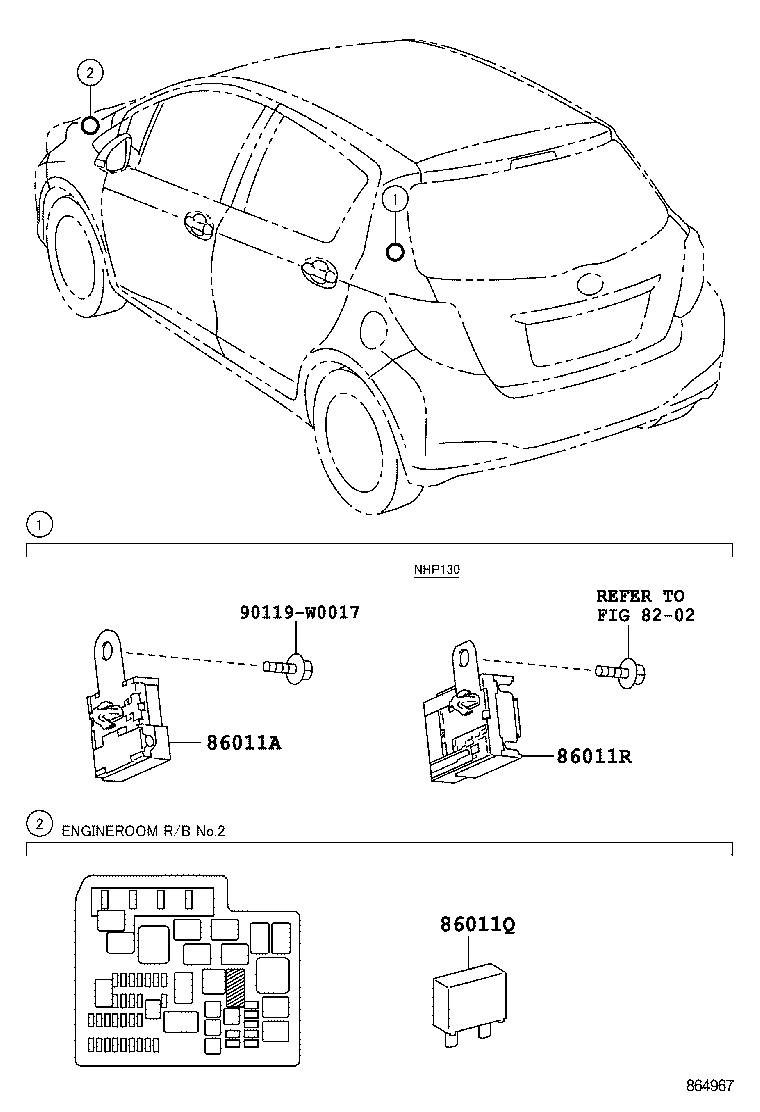

ILLUST NO. 2 OF 2(1204- )

Click highlighted areas on diagram

CONDENSER

diagram 8202 86011A 86011Q 86011R 90119W0017
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

KSP130,NHP130,NLP130,NSP130

 1
Common parts
90119-W0017
Linked diagrams
8202
