NLP130R-CGFSXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KSP130,NLP130,NSP130

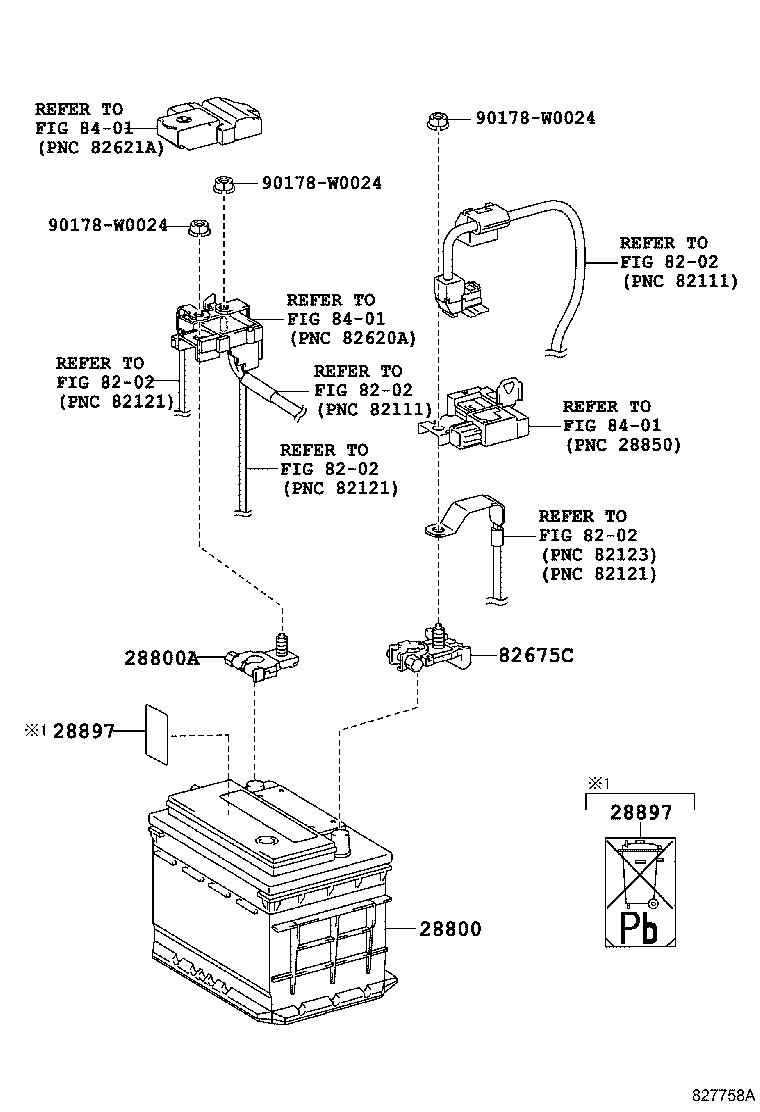

Click highlighted areas on diagram

diagram 28800 28800A 28897 28897 8202 8202 8202 8202 8202 82675C 8401 8401 8401 90178W0024 90178W0024 90178W0024
Part # Description Qty Price
28800 - BATTERY
28800-0D350

1NDTV..NLP130

LN2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130

 1
82675C - TERMINAL, JUNCTION
82675-52090

KSP130,NLP130,NSP130

 1
Common parts
90178-W0024
Linked diagrams
8202
8401
