NLP130R-CGFSXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

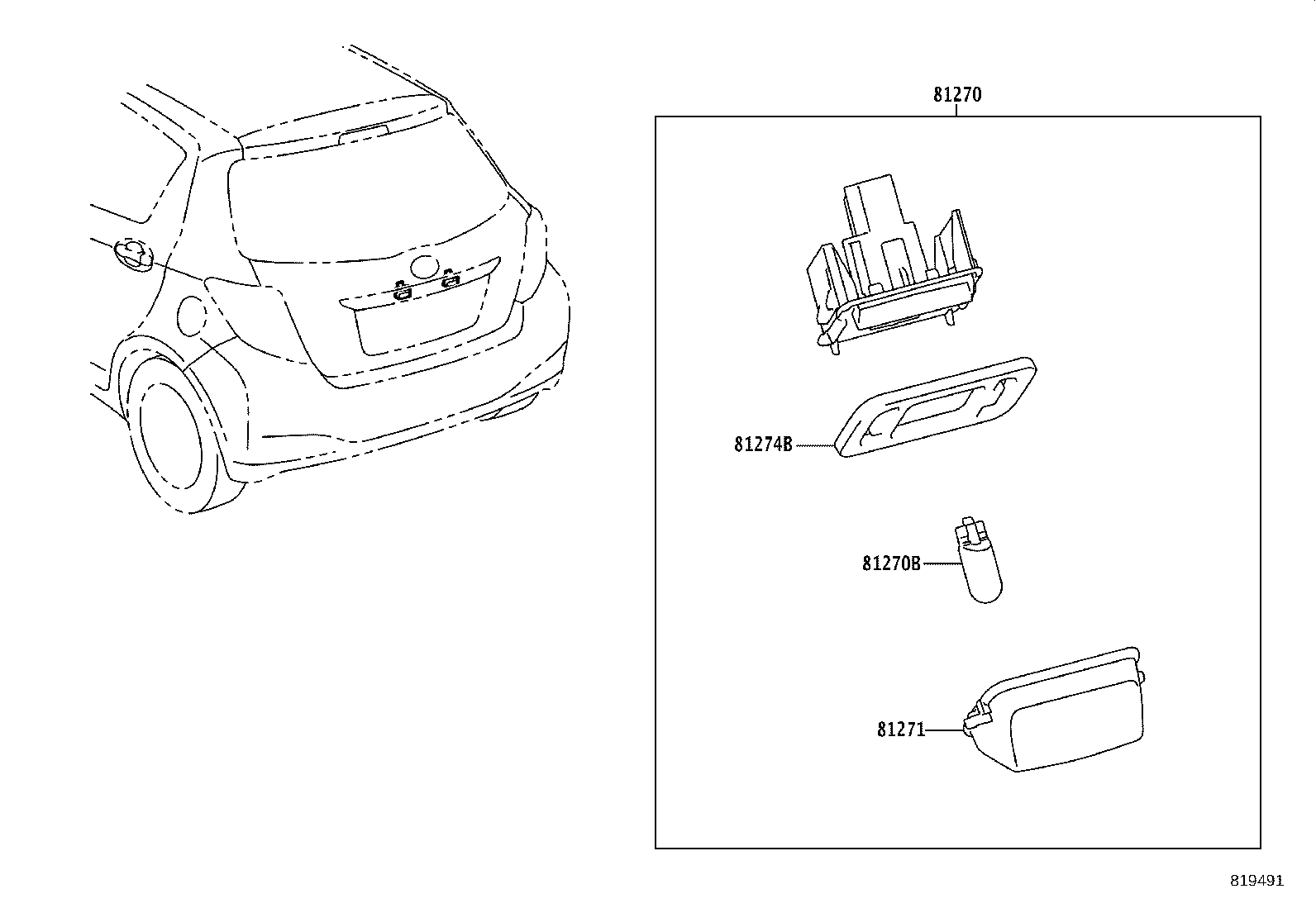

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-0D120 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KSP130,NHP130,NLP130,NSP130 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-0D120 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 81274B - PACKING, LICENSE PLATE LAMP | ||||
| 81274-02130 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
