NLP130R-CGFNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )RHD..ACTIV,LOUNG,STYLE

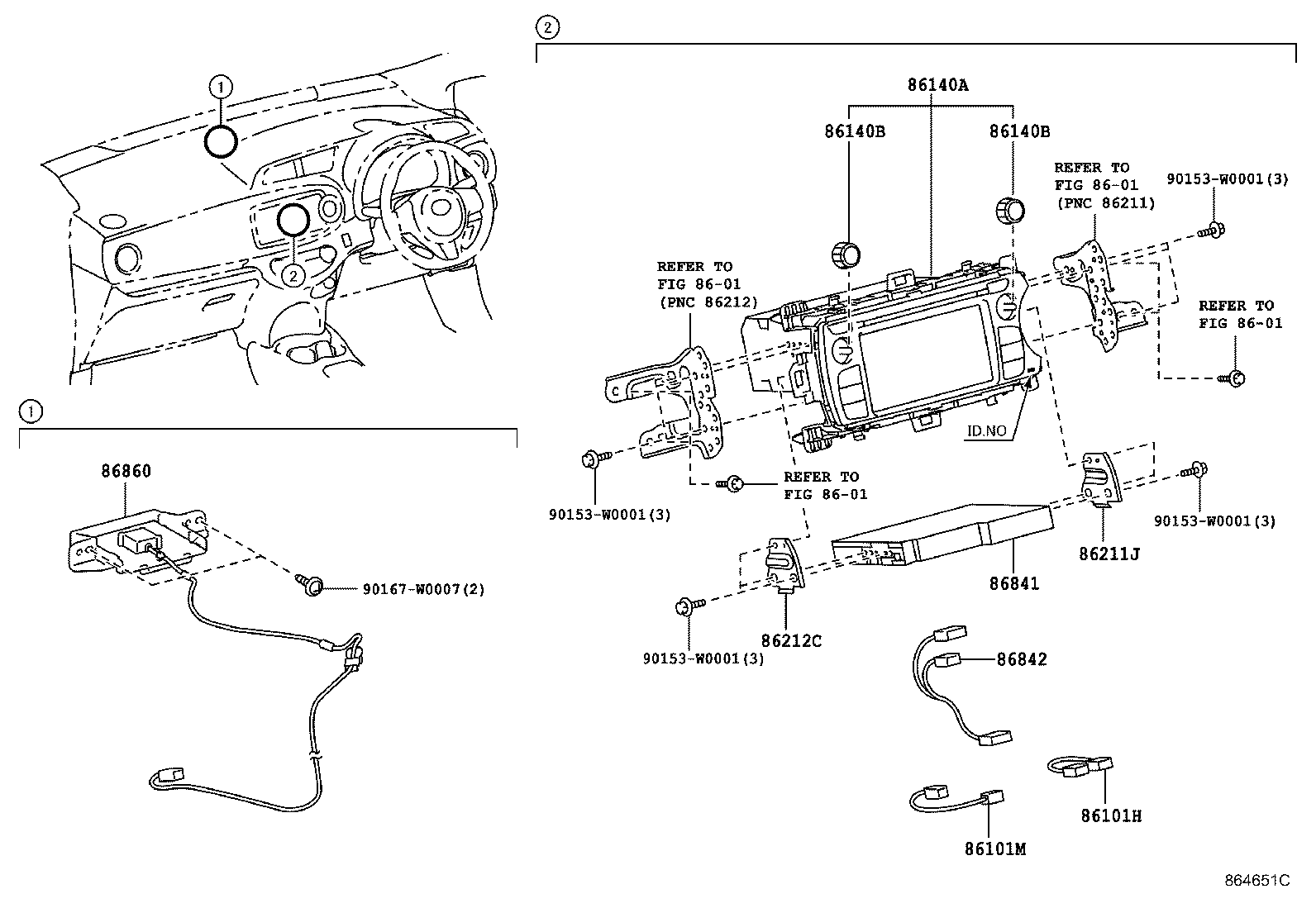

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86101H 86101M 86140A 86140B 86140B 86211J 86212C 86841 86842 86860 90153W0001 90153W0001 90153W0001 90153W0001 90167W0007
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-YY070

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86101M - CORD SUB-ASSY, ANTENNA
86705-YY030

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-0D020

KSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)

FUJITSU TEN,ID=19007

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25201

KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25201

KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-0D140

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-0D140

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86841 - COMPUTER, NAVIGATION
86840-YY133

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86840-YY040

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86840-YY041

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86840-YY132

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86840-YY131

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86842 - WIRE, NAVIGATION, NO.1
86842-YY010

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-52190

KSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE

EMV & NAVIGATION SYSTEM-ENTRY NAVI(EXTENSION BOX)

 1
Common parts
90153-W0001
90167-W0007
Linked diagrams
8601
