NLP130R-CGFNXW (2011)
Toyota Yaris/Hybrid (Frp)

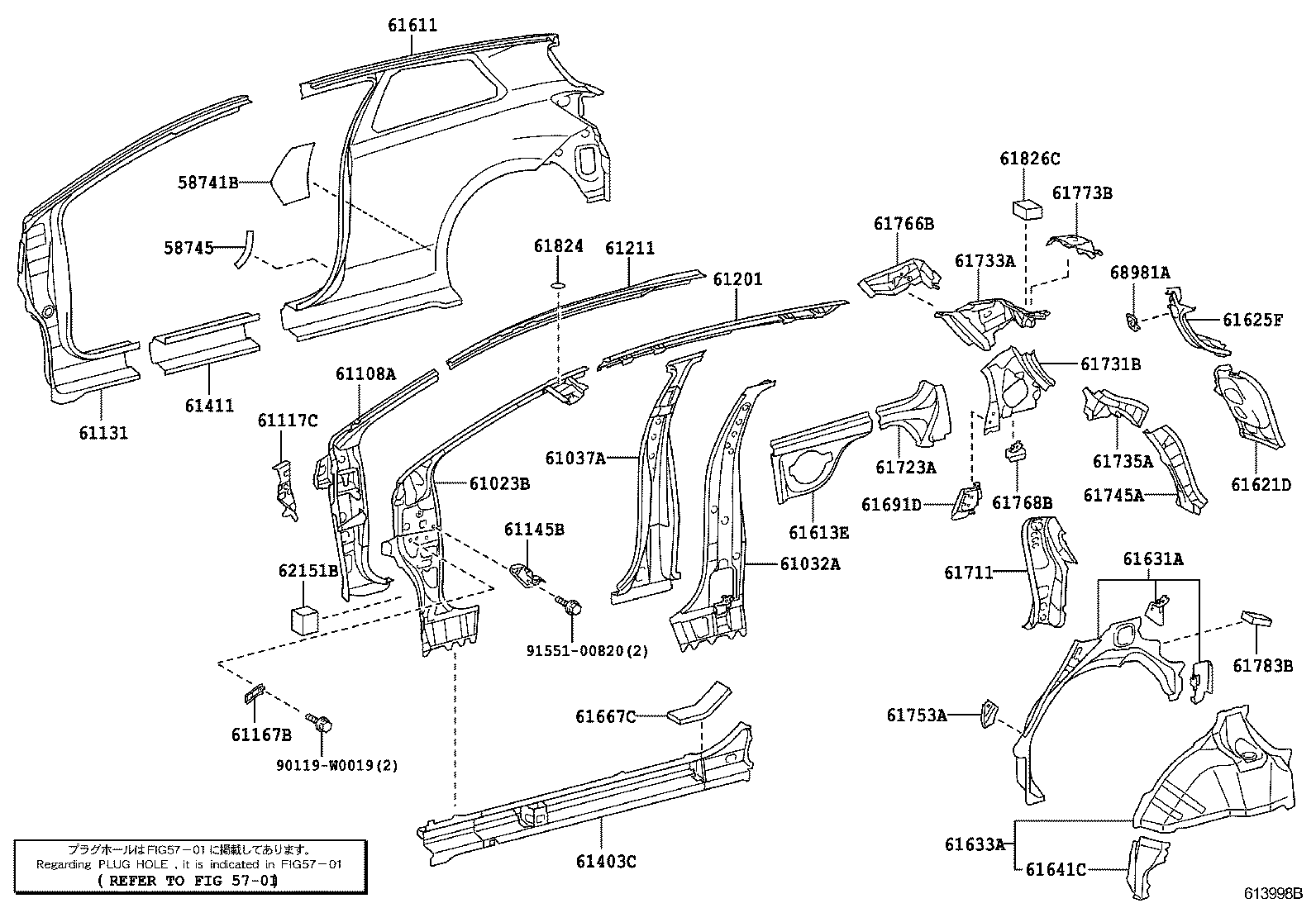

ILLUST NO. 1 OF 2(1107- )3D
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-0D110 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-0D040 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-0D080 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0D908 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0D901 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61117-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0D140 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-0D040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-0D080 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61071-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0D150 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-0D160 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-0D200 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52160 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-52150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0D901 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0D902 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-52070 |
KSP130,NLP130,NSP130..3D |
2 | ||
| 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 61691-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52180 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-0D010 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52250 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52120 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61753A - RETAINER, QUARTER TRIM, LOWER | ||||
| 61753-52020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-0D070 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-0D040 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 91551-00820 | ||||
| Linked diagrams | ||||
| 5701 | ||||

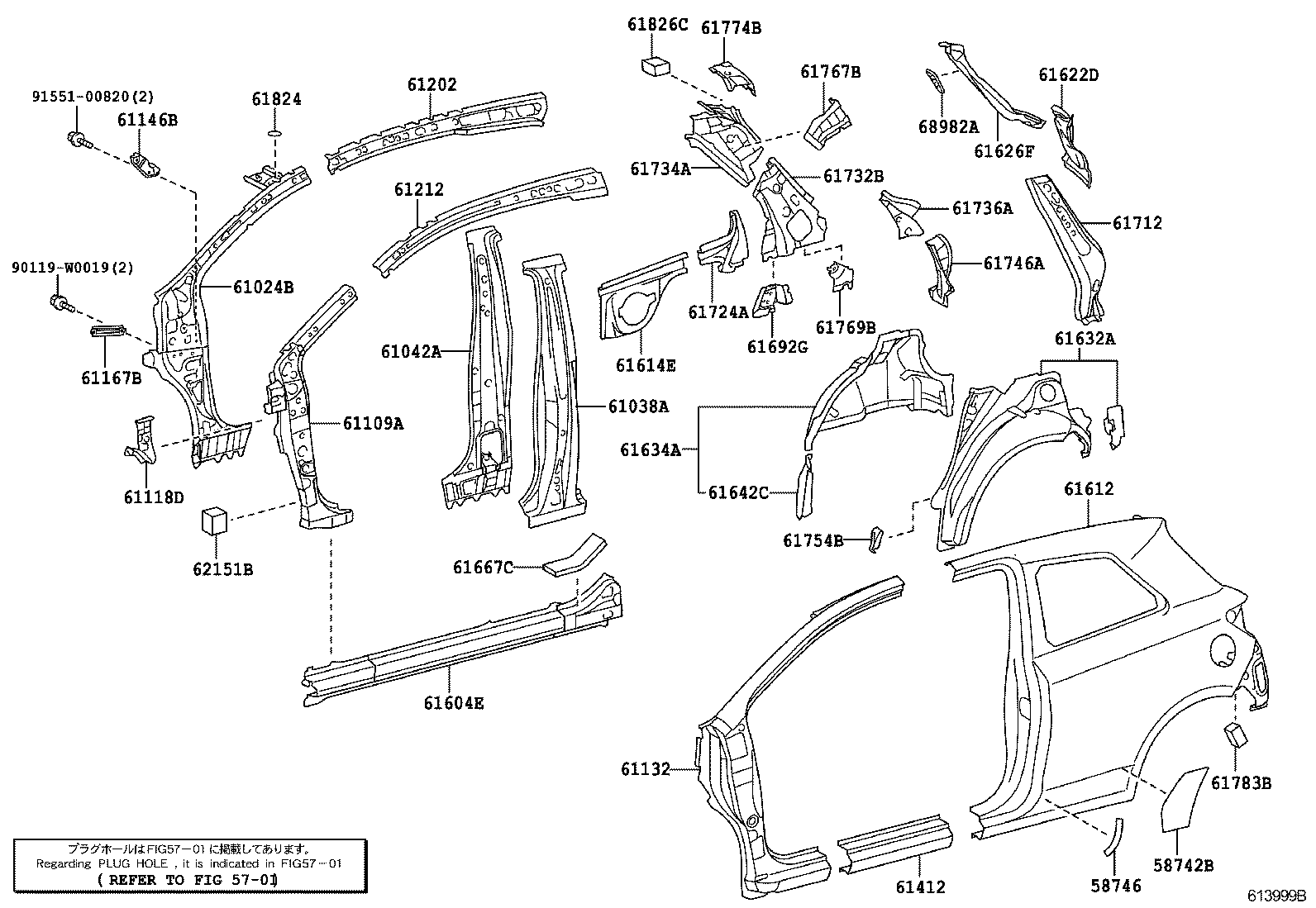

ILLUST NO. 2 OF 2(1107- )3D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-0D110 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58746-0D040 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0D150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0D908 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-0D080 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0D901 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61118-0D070 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0D140 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-0D040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-0D080 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61072-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-0D160 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61604E - REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER LH | ||||
| 61404-0D150 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-0D210 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52160 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-52150 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0D901 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0D902 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-0D060 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-52070 |
KSP130,NLP130,NSP130..3D |
2 | ||
| 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 61692-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52210 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-0D010 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52300 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-0D020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61734-0D021 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-0D080 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52120 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61754B - RETAINER, QUARTER TRIM, LOWER LH | ||||
| 61754-52020 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-0D080 |
KSP130,NLP130,NSP130..3D |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-0D030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-52020 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-52040 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
KSP130,NHP130,NLP130,NSP130 |
2 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-0D010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 91551-00820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
