NLP130R-CGFNXW (2011)

Toyota Yaris/Hybrid (Frp)

Production Jul 2011 - Jul 2014
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )6F

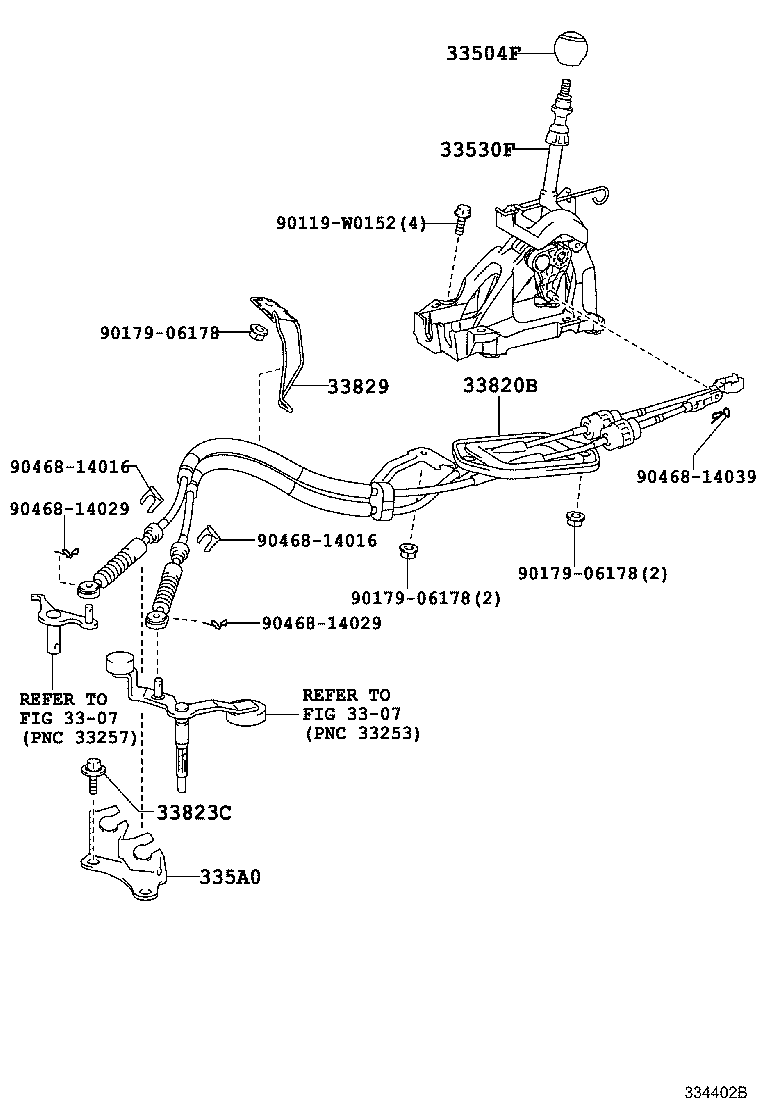

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 33829 90119W0152 9017906178 9017906178 9017906178 9046814016 9046814016 9046814029 9046814029 9046814039
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D270C0

NLP130,NSP130..6F..(ACTIV,LOUNG)

BLACK,TRIM1#

 1
33504-0D450C0

NLP130..6F..ACTIV;NSP130..RHD..6F..ACTIV

MODEL YEAR'13 GRADE,BLACK,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0D070

NLP130,NSP130..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-52020

NLP130..6F

*206

 1
335A0-0D040

NLP130..6F

*202

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D420

NLP130,NSP130..6F

 1
33820-0D381

NLP130..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NLP130,NSP130..6F

*202,*206

 3
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52151

NLP130,NSP130..6F

 1
Common parts
90119-W0152
90179-06178
90468-14016
90468-14029
90468-14039
Linked diagrams
3307
