NLP130R-CGFGXW (2011)
Toyota Yaris/Hybrid (Frp)
Production
Jul 2011
-
Jul 2014
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )1NDTV

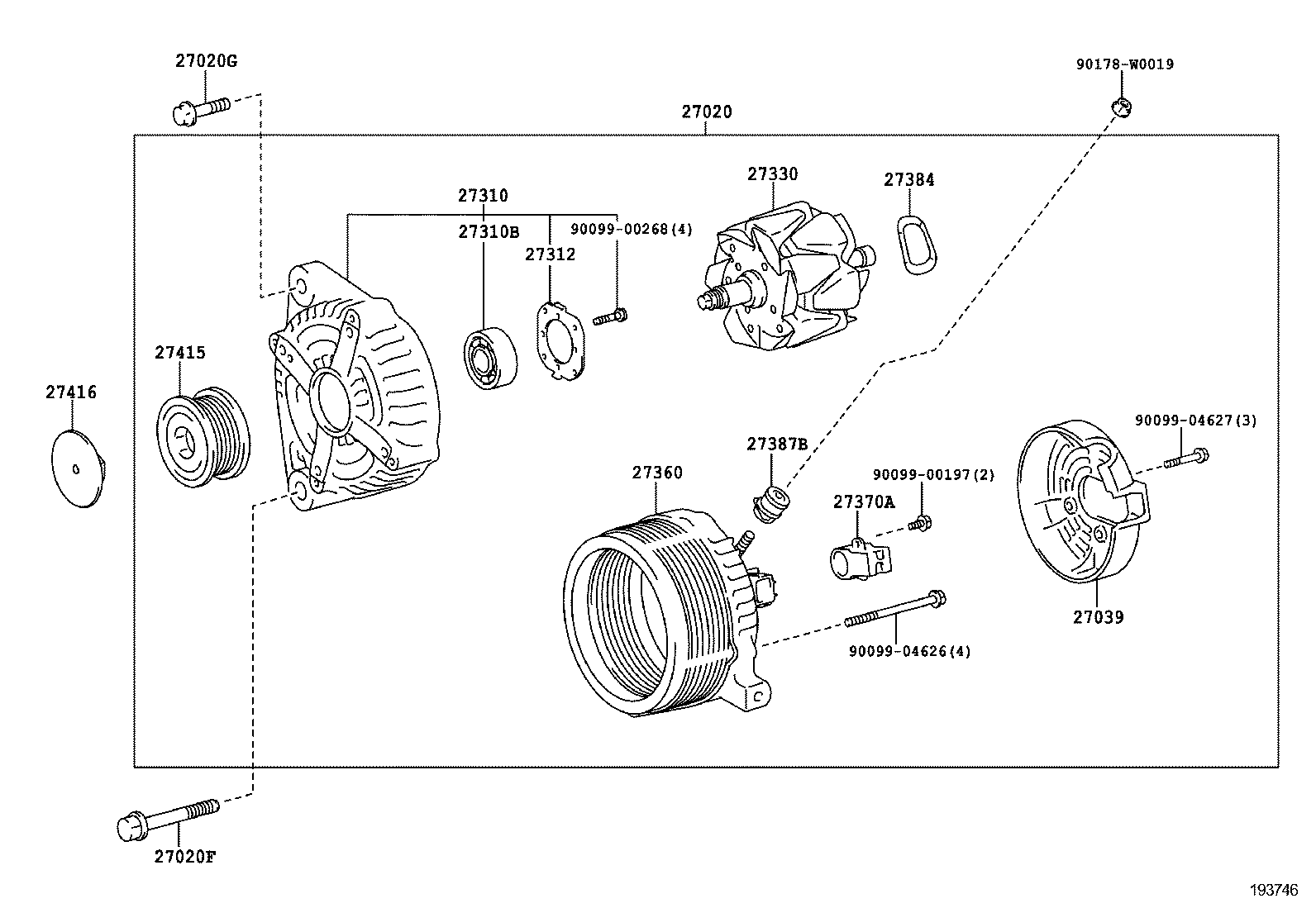

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0N090 |
1NDTV..NLP130 12V 100A |
1 | ||
| 27060-0N100 |
1NDTV..NLP130 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 90105-10571 |
1NDTV..NLP130 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91551-80840 |
1N#..NLP130,NSP130 |
1 | ||
| 91671-00845 |
1NDTV,1NRFE..NLP130,NSP130 |
1 | ||
| 90119-W0238 |
1NDTV,1NRFE..NLP130,NSP130 (L) |
1 | ||
| 91671-00845 |
1NDTV,1NRFE..NLP130,NSP130 (J) |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0N060 |
1NDTV..NLP130 |
1 | ||
| 27039-0Y150 |
1NDTV..NLP130 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0N080 |
1NDTV..NLP130 |
1 | ||
| 27310-0N060 |
1NDTV..NLP130 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10231 |
1NDTV..NLP130 |
1 | ||
| 90099-10223 |
1NDTV..NLP130 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1NDTV..NLP130 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0N060 |
1NDTV..NLP130 |
1 | ||
| 27330-0Y150 |
1NDTV..NLP130 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0N060 |
1NDTV..NLP130 |
1 | ||
| 27360-0N080 |
1NDTV..NLP130 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NDTV..NLP130 |
1 | ||
| 27370-0Y150 |
1NDTV..NLP130 |
1 | ||
| 27384 - WASHER | ||||
| 27384-38130 |
1NDTV..NLP130 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1NDTV..NLP130 |
1 | ||
| 27387-0Y150 |
1NDTV..NLP130 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-33100 |
1NDTV..NLP130 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-27010 |
1NDTV..NLP130 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90178-W0019 | ||||
